FYSH-0335UXC-60-12V-WW8

型号:

FYSH-0335UXC-60-12V-WW8

描述:

单色柔性贴片LED[ Monocolor Flexible SMD LED ]

品牌:

FORYARD[ NINGBO FORYARD OPTOELECTRONICS CO., LTD. ]

页数:

5 页

PDF大小:

1311 K

FYSH-0335UXC-60-12V-WW8
A
Model. No.
Rev.

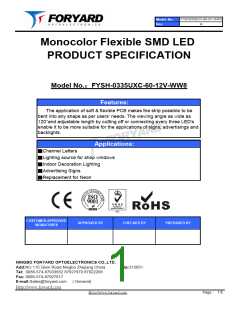

Monocolor Flexible SMD LED
PRODUCT SPECIFICATION
Model No. FYSH-0335UXC-60-12V-WW8
Features:
The application of soft & flexible PCB makes the strip possible to be
bent into any shape as per users’ needs. The viewing angle as wide as
120°and adjustable length by cutting off or connecting every three LED's
enable it to be more suitable for the applications of signs, advertisings and
backlights.
Applications:
Channel Letters
Lighting source for shop windows
Indoor Decoration Lighting
Advertising Signs
Replacement for Neon
CUSTOMER APPROVED
SIGNATURES
APPROVED BY
CHECKED BY
PREPARED BY
NINGBO FORYARD OPTOELECTRONICS CO.,LTD.
Add:NO.115 Qixin Road Ningbo Zhejiang China
Tel: 0086-574-87933652 87927870 87922206
Fax: 0086-574-87927917
Zip:315051
E-mail:Sales@foryard.com ( General)
Page 1/5
FYSH-0335UXC-60-12V-WW8
A
Model. No.
Rev.
Model No. FYSH-0335UXC-60-12V-WW8
D
Notes:
1. All dimensions are millimeters.
2. Tolerance is ±0.2mm unless otherwise specified.
3. Specifications are subject to change without notice.
4. Dimension: L1000*W8*H4.0mm.without prior notice.
5. Can be cut or connected every three LEDs.
Circuit Diagram(a single group)
Page 2/5
FYSH-0335UXC-60-12V-WW8
A
Model. No.
Rev.
Model No. FYSH-0335UXC-60-12V-WW8
Rating Electrical/Optical Characteristics(1 meter)
Item
Red
DC12
4.8
Yellow
DC12
4.8
Blue
DC12
4.8
Green
White
Operation Voltage(V)
Power Dissipation(W)
Input Current(mA)
Wavelength(nm)
DC12
4.8
DC12
4.8
400
400
400
400
400
625-635
590-594
465-475
515-525
CCT:5000K-6500K
Single LED Luminous
Intensity(MCD)
200
200
200
200
150
200
700
615
800
660
Luminous Flux(lm)
Angle(°)
120
Operation
Temperature( )
-20~60
single LED Operating
Current(mA)
20
60
LED Quantity(pcs)
Dimension:(mm)
Life Time(hrs)
L1000*W8*H4mm
50000
50
net weight:(g)
Approval
CE(NO:E8N 08 03 57489 003)
Rating Electrical/Optical Characteristics(5 meter)
Item
Power Dissipation
Total Length
Red
Yellow
Blue
Green
24W
White
24W
24W
24W
24W
5m±0.5mm 5m±0.5mm 5m±0.5mm
5m±0.5mm
2000
5m±0.5mm.
2000
Input Current(mA)
Weight
2000
250g
2000
250g
2000
250g
250g
250g
Page 3/5
FYSH-0335UXC-60-12V-WW8
A
Model. No.
Rev.
Model No. FYSH-0335UXC-60-12V-WW8
Package(5 meters)
The backsides of all products will stick ‘3M’ branded double-sided sticker with 8mm width.
Reel
Page 4/5
FYSH-0335UXC-60-12V-WW8
A
Model. No.
Rev.
Model No. FYSH-0335UXC-60-12V-WW8
How to use:
1. Please use this product with 12V DC.
2. Please complete the ESD-prevention before using.
3. The flexible LED strips should be neither bent into right-angles nor folded.
4. For this product, every three LEDs on the same strip can be cut off and use separately
(namely, every 100mm works as a group). Please refer to the ‘Outline’ for the details.
5. The calculating way that how many this product a power supply can upload is: the current(A) that the
power supply can offer/the current distributed to each single group*total group of this product
6. The strip quantity of each sting that directly connected to the power supply should not exceed 30 PCS;
otherwise, the brightness of the strip at the end of the string will be dimmed because of the voltage
reduction. Although a loop circuit can avoid reduction happening, one string should not connect
too many strips.
7. The wire with gray line is anode, while the red green blue yellow white is cathode, If polarities
connected in a wrong way, the strip will not be lit, but will not be damaged either. What
only needs to do is changing the polarity connection.
8. When installing the strips in the plastic letters or characters, please try to use 3 or 4
branch wires and when doing the connection try to make the strips in a letter or
character or box form a loop circuit or several loop circuits by using red and black wire to
connect the strips at the end of the strokes together according to their polarities.
9. This product is water-proof.
10.When installing the strip, the double-sided adhesive tape or carpenter’s glue is required
to make the clip slot of the strip firmly stuck together. When using the double-sided
adhesive tape, proper glass glue must be spread to avoid the strip falling off after
long-time exposed in the sunlight.
11.The strip quantity of each sting that directly connected to the power supply should not exceed
30pcs; otherwise, the brightness of the strip at the end of the string will be dimmed
because of the voltage reduction. Although a loop circuit can avoid reduction happening,
one string should not connect too many strips.
12.No push, squeeze or press on the components of the strip for fear damaging the
components to affect the lighting effects.
Page 5/5
