TXS0302

型号:

TXS0302

描述:

具有自动方向感应2位双向电压电平转换器[ 2-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR WITH AUTOMATIC DIRECTION SENSING ]

品牌:

TI[ TEXAS INSTRUMENTS ]

页数:

7 页

PDF大小:

277 K

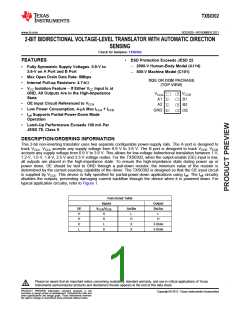

TXS0302
www.ti.com
SCES835 NOVEMBER 2011
2-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR WITH AUTOMATIC DIRECTION
SENSING
Check for Samples: TXS0302
1
FEATURES
ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114)
500-V Machine Model (C101)
Fully Symmetric Supply Voltages. 0.9-V to
3.6-V on A Port and B Port
Max Open Drain Data Rate: 8Mbps
DQE OR DQM PACKAGE
(TOP VIEW)
Internal Pull-up Resistors: 4.7-k
VCC Isolation Feature If Either VCC Input Is at
GND, All Outputs Are in the High-Impedance
State
8
VCCA
A1
1
2
3
4
VCCB
B1
7
6
5
OE Input Circuit Referenced to VCCA
A2
B2
Low Power Consumption, 4-µA Max ICCA + ICCB
GND
OE
Ioff Supports Partial-Power-Down Mode
Operation
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
DESCRIPTION/ORDERING INFORMATION
This 2-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to
track VCCA. VCCA accepts any supply voltage from 0.9 V to 3.6 V. The B port is designed to track VCCB. VCCB
accepts any supply voltage from 0.9 V to 3.6 V. This allows for low-voltage bidirectional translation between 1-V,
1.2-V, 1.5-V, 1.8-V, 2.5-V and 3.3-V voltage nodes. For the TXS0302, when the output-enable (OE) input is low,
all outputs are placed in the high-impedance state. To ensure the high-impedance state during power up or
power down, OE should be tied to GND through a pull-down resistor; the minimum value of the resistor is
determined by the current-sourcing capability of the driver. The TXS0302 is designed so that the OE input circuit
is supplied by VCCA. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry
disables the outputs, preventing damaging current backflow through the device when it is powered down. For
typical application circuitry, refer to Figure 1.
Functional Table
Inputs
Output
Bn/An
L
OE
H
VCCA/VCCB
An/Bn
H
H
L
L
H
X
X
H
H
H
3-State
3-State
L
X
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCT PREVIEW information concerns products in the
formative or design phase of development. Characteristic data and
other specifications are design goals. Texas Instruments reserves
the right to change or discontinue these products without notice.
Copyright © 2011, Texas Instruments Incorporated
TXS0302
SCES835 NOVEMBER 2011
www.ti.com
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more
susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.
ORDERING INFORMATION(1)
TA
PACKAGE(2)
ORDERABLE PART NUMBER
TOP-SIDE MARKING(3)
PREVIEW
DQE MicroQFN
DQM MicroQFN
YFP - NanoStarTM WCSP
(DSBGA) )
YZP - NanoStarTM WCSP
Reel of 5000
TXS0302DQER
Reel of 3000
Reel of 3000
TXS0302DQMR
PREVIEW
40°C to 85°C
TXS0302YFPR
TXS0302YZPR
PREVIEW
PREVIEW
Reel of 3000
(DSBGA
(1) For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
web site at www.ti.com.
(2) Package drawings, thermal data, and symbolization are available at www.ti.com/packaging.
(3) YFP: The actual top-side marking has three preceding characters to denote year, month, and sequence code, and one following
character to designate the assembly/test site. Pin 1 identifier indicates solder-bump composition (1 = SnPb, = Pb-free).
TERMINAL FUNCTIONS
PIN NO.
NAME
TXS0302
VCCA
A1
DESCRIPTION
YFP/YZP DQE/DQM
A1
B1
C1
D1
D2
C2
B2
A2
1
2
3
4
5
6
7
8
A-port supply voltage 0.9 V VCCA 3.6 V
Input/output 1. Referenced to VCCA
Input/output 2. Referenced to VCCA
Ground
.
.
A2
GND
OE
3-state output-mode enable; Pull OE low to place all outputs in 3-state mode.
B2
Input/output 2. Referenced to VCCB
Input/output 1. Referenced to VCCB
.
.
B1
VCCB
B-port supply voltage 0.9 V VCCB 3.6 V.
TYPICAL OPERATING CIRCUIT
1.8 V
3.3 V
0.1 μF
0.1 μF
1 μF
VCCB
VCCA
OE
1.8 V
System
Controller
3.3 V
System
A1
A2
B1
B2
Data
Data
Figure 1.
2
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Product Folder Link(s): TXS0302
PACKAGE OPTION ADDENDUM
www.ti.com
31-Mar-2012
PACKAGING INFORMATION
Status (1)
Eco Plan (2)
MSL Peak Temp (3)
Samples
Orderable Device
Package Type Package
Drawing
Pins
Package Qty
Lead/
Ball Finish
(Requires Login)
TXS0302DQER
TXS0302DQMR
PREVIEW
PREVIEW
X2SON
X2SON
DQE
DQM
8
8
5000
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3) MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
Addendum-Page 1
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TIs terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TIs standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products
Audio
Applications
www.ti.com/audio
amplifier.ti.com
dataconverter.ti.com
www.dlp.com
Automotive and Transportation www.ti.com/automotive
Communications and Telecom www.ti.com/communications
Amplifiers
Data Converters
DLP® Products
DSP
Computers and Peripherals
Consumer Electronics
Energy and Lighting
Industrial
www.ti.com/computers
www.ti.com/consumer-apps
www.ti.com/energy
dsp.ti.com
Clocks and Timers
Interface
www.ti.com/clocks
interface.ti.com
logic.ti.com
www.ti.com/industrial
www.ti.com/medical
www.ti.com/security
Medical
Logic
Security
Power Mgmt
Microcontrollers
RFID
power.ti.com
Space, Avionics and Defense www.ti.com/space-avionics-defense
microcontroller.ti.com
www.ti-rfid.com
Video and Imaging
www.ti.com/video
OMAP Mobile Processors www.ti.com/omap
Wireless Connectivity www.ti.com/wirelessconnectivity
TI E2E Community Home Page
e2e.ti.com
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2012, Texas Instruments Incorporated
