ANY REV MADE TO THIS PRINT MUST HAVE AN UPDATED MKT PRINT
REVISION H
NOTES:
1. USE ASP-103597-01-B BODY FOR NON-STANDARD 19 POSITION.
2.
REPRESENTS A CRITICAL DIMENSION.
3. BURR ALLOWANCE: .0005[0.013] MAX.
4. MINIMUM PUSHOUT FORCE: .5 LB.
DO NOT
SCALE FROM
THIS PRINT
5. MAXIMUM ALLOWABLE BOW: .002[0.05] INCH/INCH AFTER ASSEMBLY.
6. CONTACT TO BE FLUSH +/-.002.
7. ONE REEL MINIMUM PLATING REQUIREMENT (85,000 CONTACTS PER REEL).
8. ALL DIMS TO BE SYMMETRICAL ABOUT THE CENTERLINE WITHIN ±.001[0.03].
9. .0025[0.064] MAX VARIATION BETWEEN SOLDERBALLS.
10. REFER TO VISUAL INSPECTION BOARD FOR SOLDERBALL APPEARANCE CHECKS.
11. THE DISTANCE FROM THE CENTER OF ANY SOLDERBALL TO THE
CENTER OF ANY ADJACENT INNER PEG SHALL BE .025±.005[0.64±0.13].
12. PARTS TO BE PACKAGED IN TRAYS.
1.070 27.18 REF
.970 24.64 REF
.900±.002 22.86±0.05
(18 POS x .0500[1.270])
19
01
A
F
B
C
.095 2.41
REF
.145 3.68
REF
.250 6.35 .320 8.13 REF
D
E
CRITICAL DIMENSION INSPECTION INSTRUCTION TABLE
ASSEMBLY OPERATION
FILL C-140-03-H
IN PROCESS INSPECTION
.035 0.89 REF
C2, C3
C3
ATTACH SDB-030-6337
FINISHED GOOD INSPECTION
C1, C3
"A"
2
.104 2.64 REF
.134±.003 3.41±0.08
1
3
.012 0.31
(SEE NOTE 9)
SECTION "A"-"A"
"A"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DECIMALS
ANGLES
2
.XX: .01
.XXX: .005
.XXXX: .0020
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733 FAX: 812-948-5047
e-Mail info@SAMTEC.com code 55322
ITEM NO.
PART NUMBER
ASP-103597-01-B
C-140-03-H
QUANTITY
MATERIAL
SHEET SCALE: 3:1
DO NOT SCALE DRAWING
DESCRIPTION:
1
2
3
4
1.0000
114.00
114.00
.01539
UL 94 V0, COLOR: BLACK
PHOS BRONZE, 521 HARD TEMPER
63% TIN /37% LEAD
PLATING:

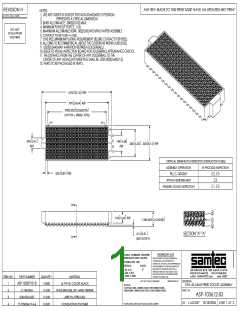

VITA 42 (LEAD FREE) SOCKET ASSEMBLY
DWG. NO.
CONTACT AREA: .000030 GOLD OVER .000050 NICKEL
REMAINDER: .000003 FLASH GOLD OVER .000050 NICKEL
ASP-103612-03
SDB-030-6337
SHEET 1 OF
BY: J LACKEY 10/18/2006
2
F:\DWG\MISC\MKTG\ASP-103612-03-MKT.SLDDRW
TY-YFS004-19-3-6
CONDUCTIVE POLYMER
