TXS4558

型号：

TXS4558

描述：

双SIM卡电源与电平转换器和专用双路LDO[ Dual-SIM Card Power Supply with Level Translator and Dedicated Dual LDO ]

品牌：

TI[ TEXAS INSTRUMENTS ]

页数：

18 页

PDF大小：

755 K

下载PDF手册

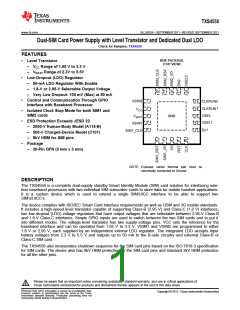

TXS4558
www.ti.com
SLLSE93A –SEPTEMBER 2011–REVISED SEPTEMBER 2011
Dual-SIM Card Power Supply with Level Translator and Dedicated Dual LDO
Check for Samples: TXS4558
1
FEATURES
RUK PACKAGE
(TOP VIEW)
•
Level Translator
–
–
VCC Range of 1.65 V to 3.3 V
VBATT Range of 2.3V to 5.5V
•
Low-Dropout (LDO) Regulator
–
–
–
50-mA LDO Regulator With Enable
1.8-V or 2.95-V Selectable Output Voltage
Very Low Dropout: 100 mV (Max) at 50 mA
•
•
•
Control and Communication Through GPIO
Interface with Baseband Processor
1
15
VSIM2
CLKRUN2
2
3
4
5
14
13
12
11
CLKRUN1
CSEL
VCC
Isolated Clock Stop Mode for both SIM1 and
SIM2 cards
GND
VBATT
ESD Protection Exceeds JESD 22
VSEL1
VSIM1
–
–
–
2000-V Human-Body Model (A114-B)
500-V Charged-Device Model (C101)
8kV HBM for SIM pins
En1
SIM1_CLK
•
Package
20-Pin QFN (3 mm x 3 mm)
–
NOTE: Exposed center thermal pad must be
electrically connected to Ground.
DESCRIPTION
The TXS4558 is a complete dual-supply standby Smart Identity Module (SIM) card solution for interfacing wire-
less baseband processors with two individual SIM subscriber cards to store data for mobile handset applications.
It is a custom device which is used to extend a single SIM/UICC interface to be able to support two
SIM’s/UICC’s.
The device complies with ISO/IEC Smart-Card Interface requirements as well as GSM and 3G mobile standards.
It includes a high-speed level translator capable of supporting Class-B (2.95 V) and Class-C (1.8 V) interfaces,
two low-dropout (LDO) voltage regulators that have output voltages that are selectable between 2.95-V Class-B
and 1.8-V Class-C interfaces. Simple GPIO inputs are used to switch between the two SIM cards and to put it
into different modes. The voltage-level translator has two supply voltage pins. VCC sets the reference for the
baseband interface and can be operated from 1.65 V to 3.3 V. VSIM1 and VSIM2 are programmed to either
1.8 V or 2.95 V, each supplied by an independent internal LDO regulator. The integrated LDO accepts input
battery voltages from 2.3 V to 5.5 V and outputs up to 50 mA to the B-side circuitry and external Class-B or
Class-C SIM card.
The TXS4558 also incorporates shutdown sequence for the SIM card pins based on the ISO 7816-3 specification
for SIM cards. The device also has 8kV HBM protection for the SIM card pins and standard 2kV HBM protection
for all the other pins.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Copyright © 2011, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
TXS4558
SLLSE93A –SEPTEMBER 2011–REVISED SEPTEMBER 2011
www.ti.com
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
ORDERING INFORMATION(1)
TA
PACKAGE(2)
ORDERABLE PART NUMBER
TOP-SIDE MARKING
–40°C to 85°C
QFN – RUK
Tape and reel
TXS4558RUKR
ZTG
(1) For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
web site at www.ti.com.
(2) Package drawings, thermal data, and symbolization are available at www.ti.com/packaging.
INTERFACING THE SIM CARD
VCC
VBATT
3V/1.8V SIM Card
3V or 1.8V, 50mA
Control I/P’s
Vcc
GND
Vpp
I/O
LDO
RST
CLK
NC
Control
Logic
NC
Baseband
RST
Translator
I/O
MUX
CLK
3V/1.8V SIM Card
3V or 1.8V, 50mA
Vcc
RST
CLK
NC
GND
Vpp
I/O
LDO
NC
Translator
PIN FUNCTIONS(1)
NO.
1
NAME
VSIM2
TYPE(2)
POWER DOMAIN
DESCRIPTION
O
P
P
O
O
O
I/O
I/O
I
VBATT
—
1.8 V/2.95 V supply voltage to SIM2
2
VCC
1.8-V power supply for device operation and I/O buffers toward baseband
Battery power supply
3
VBATT
VSIM1
SIM1CLK
SIM1RST
SIM1I/O
I/O
—
4
VBATT
VSIM1
VSIM1
VSIM1
VCC
1.8 V/2.95 V supply voltage to SIM1
SIM1 clock
5
6
SIM1 reset
7
SIM1 data
8
UICC/SIM data
9
RST
VCC
UICC/SIM reset from baseband
UICC/SIM clock
10
11
12
13
CLK
I
VCC
EN1
I
VCC
Enable pin for SIM1 interface
Select pin for 1.8V or 2.95V LDO1 output
Channel select between SIM1 or SIM2
VSEL1
CSEL
I
VCC
I
VCC
(1) Thermal Pad must be electrically connected to Ground Plane.
(2) G = Ground, I = Input, O = Output, P = Power
2
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Product Folder Link(s): TXS4558
TXS4558
www.ti.com
NO.
SLLSE93A –SEPTEMBER 2011–REVISED SEPTEMBER 2011
PIN FUNCTIONS(1) (continued)
NAME
TYPE(2)
POWER DOMAIN
DESCRIPTION
Select pin for SIM1 Clock stop mode
14
15
16
17
18
19
20
CLKRUN1
CLKRUN2
VSEL2
I
I
VCC
VCC
Select pin for SIM2 Clock stop mode
Select pin for 1.8V or 2.95V LDO2 output
Enable pin for SIM2 interface
SIM2 data
I
VCC
EN2
I
VCC
SIM2I/O
SIM2RST
SIM2CLK
I/O
O
O
VSIM2
VSIM2
VSIM2
SIM2 reset
SIM2 clock
TRUTH TABLE
CSEL
VSEL1
VSEL2
SELECTED CARD
VSIM1
VSIM2
1.8 V
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
1
1
1
1
2
2
2
2
1.8 V
1.8 V
2.95 V
1.8 V
2.95 V
2.95 V
1.8 V
2.95 V
1.8 V
1.8 V
2.95 V
1.8 V
2.95 V
2.95 V
2.95 V
ABSOLUTE MAXIMUM RATINGS
over operating free-air temperature range (unless otherwise noted)
MIN
MAX
UNIT
V
LEVEL TRANSLATOR
VCC Supply voltage range
–0.3
–0.5
–0.5
–0.5
–0.5
–0.5
–0.5
–0.5
–0.5
–0.5
4.0
4.6
4.6
4.6
4.6
4.6
4.6
4.6
4.6
4.6
–50
–50
VCC-port
VI
Input voltage range
VSIMx-port
Control inputs
VCC-port
V
Voltage range applied to any output in the high-impedance or
power-off state
VO
VSIMx-port
Control inputs
VCC-port
V
V
VO
Voltage range applied to any output in the high or low state
VSIMx-port
Control inputs
VI < 0
IIK
IOK
IO
Input clamp current
mA
mA
mA
mA
°C
Output clamp current
VO < 0
Continuous output current
Continuous current through VCCA or GND
Storage temperature range
±50
±100
–65
Tstg
150
LDO
VBAT Input voltage range
VOUT Output voltage range
–0.3
–0.3
–55
–55
6
6
V
V
TJ
Junction temperature range
Storage temperature range
150
150
2
°C
°C
kV
V
Tstg
Human-Body Model (HBM)
ESD rating (host side)
Charged-Device Model (CDM)
500
Copyright © 2011, Texas Instruments Incorporated
Submit Documentation Feedback
3
Product Folder Link(s): TXS4558

TXS4558
SLLSE93A –SEPTEMBER 2011–REVISED SEPTEMBER 2011
www.ti.com
UNIT
RECOMMENDED OPERATING CONDITIONS(1)
MIN
MAX
LEVEL TRANSLATOR
VCC
VIH
Supply voltage
1.7
VCC × 0.7
0
3.3
V
V
High-level input voltage
Low-level input voltage
3.3
Applies to pins: EN1, EN2,RST, CLK, I/O, CLKRUN1,
CLKRUN2, VSEL1, VSEL2, CSEL
VIL
VCC × 0.3
V
Δt/Δv Input transition rise or fall rate
TA Operating free-air temperature
5
ns/V
°C
–40
85
(1) All unused data inputs of the device must be held at VCCI or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs, literature number SCBA004.
ELECTRICAL CHARACTERISTICS — LEVEL TRANSLATOR
over recommended operating free-air temperature range (unless otherwise noted)
PARAMETER
SIM1_RST
SIM1_CLK
SIM1_I/O
SIM2_RST
SIM2_CLK
SIM2_I/O
I/O
TEST CONDITIONS
IOH = –100 µA, Push-Pull
IOH = –10 µA, Open-Drain
IOH = –100 µA, Push-Pull
VCC
VSIM1
VSIM2
MIN
VSIM1 × 0.8
VSIM1 × 0.8
VSIM1 × 0.8
VSIM2 × 0.8
VSIM2 × 0.8
VSIM2 × 0.8
VCC × 0.8
TYP(1)
MAX
UNIT
1.8 V / 2.95 V,
(Supplied by LDO)
1.8 V / 2.95 V,
(Supplied by LDO)
VOH
1.7 V to 3.3 V
V
IOH = –10 µA, Open-Drain
IOH = –10 µA, Open-Drain
SIM1_RST
SIM1_CLK
SIM1_I/O
SIM2_RST
SIM2_CLK
SIM2_I/O
I/O
VSIM1 × 0.2
VSIM1 × 0.2
0.3
IOL = 1 mA, Push-Pull
IOL = 1 mA, Open-Drain
IOL = 1 mA, Push-Pull
1.8 V / 2.95 V
(Supplied by LDO)
1.8 V / 2.95 V
(Supplied by LDO)
VOL
1.7 V to 3.3 V
VSIM2 × 0.2
VSIM2 × 0.2
0.3
V
IOL = 1 mA, Open-Drain
IOL = 1 mA, Open-Drain
0.3
VI = EN1,EN2, CLKRUN1, CSEL,
CLKRUN2, VSEL1, VSEL2,
1.8 V / 2.95 V
(Supplied by LDO)
1.8 V / 2.95 V
(Supplied by LDO)
II
Control inputs
1.7 V to 3.3 V
1.7 V to 3.3 V
±1
±5
µA
µA
1.8 V / 2.95 V
(Supplied by LDO)
1.8 V / 2.95 V
(Supplied by LDO)
ICC
VI = VCCI, IO = 0
I/O
SIM_I/O port
VSIMx port
8
8
4
Cio
Ci
pF
pF
Control inputs
VI = VCC or GND
(1) All typical values are at TA = 25°C.
LDO ELECTRICAL CHARACTERISTICS
PARAMETER
TEST CONDITIONS
MIN TYP(1)
MAX UNIT
VBAT
VSIM1,2
VDO
Input voltage
2.3
5.5
3.05
1.9
V
Class-B Mode , 0 mA < ISIM1,2 < 50 mA
Class-C Mode , 0 mA < ISIM1,2 < 50 mA
IOUT = 50 mA
2.85
1.7
2.95
1.8
Output voltage
Dropout voltage
Operating current
V
100 mV
VSIM1 = 2.95 V, VSIM2 = 0, ISIM1 = 0 µA
VSIM1 = 1.8 V, VSIM2 = 0, ISIM1 = 0 µA
40
40
50
µA
50
IVBAT
ISHDN
Shutdown current (IGND)
Short-circuit current
Output Capacitor
V
ENx ≤ 0.4 V, (VSIMx + VDO) ≤ VBAT ≤ 5.5 V, TJ = 85°C
1
µA
mA
µF
IOUT(SC)
COUT
RL = 0 Ω
145
1
f = 1 kHz
50
40
VBAT = 3.15 V, VSIM1,2 = 1.8 V or 2.95 V,
COUT = 1 µF, IOUT = 10 mA
PSRR
Power-supply rejection ratio
dB
f = 10 kHz
TSTR
TJ
VSIM1,2 Start-up time
VSIM1,2 = 1.8 V or 3 V, IOUT = 50 mA, COUT = 1 µF
400
125
µS
°C
Operating junction temperature
–40
(1) All typical values are at TA = 25°C.
4
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Product Folder Link(s): TXS4558
TXS4558
www.ti.com
SLLSE93A –SEPTEMBER 2011–REVISED SEPTEMBER 2011
GENERAL ELECTRICAL CHARACTERISTICS
PARAMETER
TEST CONDITIONS
MIN TYP
MAX UNIT
RI/OPU
I/O pull-up
16
20
24
kΩ
kΩ
RSIMPU
SIM_I/O pull-up
SIM enabled and selected with CSEL
7.4
8.0
8.7
Active pull-downs are connected to the VSIM regulator output to
the SIM_CLK, SIM_RST, SIM_I/O when EN = 0
RSIMPD
SIM_I/O pull-down
2
kΩ
SWITCHING CHARACTERISTICS – VSIMx = 1.8 V or 2.95 V Supplied by Internal LDO
over recommended operating free-air temperature range (unless otherwise noted)
VCC = 1.8 V ± 0.15 V
PARAMETER
TEST CONDITIONS
UNIT
MIN
MAX
trA
I/O
1
1
µs
µs
SIMx_RST
SIMx_CLK
SIMx_I/O
trB
50
ns
CL = 50 pF
100
25
ns
fmax
SIMx_CLK
SIMx_CLK
MHz
Duty Cycle
40%
60%
OPERATING CHARACTERISTICS
TA = 25°C, VSIMx = 1.8 V
PARAMETER
TEST CONDITIONS
TYP
UNIT
Class C (CLK,
RST)
VCC-port input, VSIMx-port
output
12.7
pF
Class B (CLK,
RST)
VCC-port input, VSIMx-port
output
15.4
10.8
20.3
CL = 0
f = 5 MHz
tr = tf = 1 ns
(1)
Cpd
VCC-port input, VSIMx-port
output
CLASS C (IO)
CLASS B (IO)
pF
VCC-port input, VSIMx-port
output
(1) Power dissipation capacitance per transceiver
Copyright © 2011, Texas Instruments Incorporated
Submit Documentation Feedback
5
Product Folder Link(s): TXS4558
TXS4558
SLLSE93A –SEPTEMBER 2011–REVISED SEPTEMBER 2011
www.ti.com
PIN FUNCTION
PIN NAME
PIN NUMBER
PIN FUNCTION
Power supply and voltage reference for device operation and I/O buffers toward
baseband.
VCC
2
3
VBATT
This is the battery power supply for the TXS4558.
1.8 V/2.95 V supply voltage for the respective SIM1 and SIM2. These outputs are
activated through the EN1 and EN2 pins and set to be 1.8V or 2.95V through
VSEL1 and VSEL2.
VSIM1, VSIM2
1,4
These are voltage level shifted CLK signals for connection to SIM1 and SIM2.
Functionality while the corresponding SIM is not selected via CSEL is controlled by
CLKRUN1 and CLKRUN2 control pins.
SIMCLK, SIM2CLK
5, 20
These are voltage level shifted RST signals for connection to SIM1 and SIM2.
Their output level when de-selected is latched at the last state.
6, 19
7, 18
SIM1RST, SIM2RST
SIM1IO, SIM2IO
These are voltage level shifted IO signals for connection to SIM1 and SIM2. These
are bi-directional data signals.
Microcontroller side data IO pin. The IO pin provides the bidirectional
communication path to the SIM cards. The SIMxIO communicating with IO is
selected by CSEL.
IO
8
9
Microcontroller side reset RST pin input. RST provides signals directly to the
selected SIM SIMxRST. When a SIM interface is deselected with CSEL, the last
RST value is held at the SIMxRST.
RST
The CLK pin supplies the clock signal to the cards. It is level shifted and
transmitted directly to the SIMxCLK pin of the selected card. If CLKRUNx is HIGH,
the clock signal will be transmitted to the SIMxCLK pin, regardless of whether that
card is selected.
CLK
10
EN1 and EN2 enable and disable the power supply to SIM1 and SIM2, and the
corresponding interface.
EN1, EN2
VSEL1, VSEL2
CSEL
11, 17
12, 16
13
These pins set the VSIM1 and VSIM2 voltages and the corresponding interface IO
voltages. When VSELx is low, VSIMx is 1.8V. When VSELx is high, VSIMx is
2.95V.
CSEL selects which SIM is activated and communicates with the baseband. When
CSEL is low, SIM1 is active. When CSEL is high, SIM2 is active.
The CLKRUN1 and CLKRUN2 control the functionality of the SIM1CLK and
SIM2CLK pins when their corresponding SIM cards are deselected using CSEL.
When CLKRUNx is high, the CLK signal is transmitted to the corresponding
SIMxCLK, even when the card is deselected with CSEL. When CLKRUNx is low,
the SIMxCLK signal is brought low when the corresponding SIM is deselected with
CSEL.
CLKRUN1, CLKRUN2
Exposed Center Pad
14, 15
21
This center pad must be connected to ground.
6
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Product Folder Link(s): TXS4558
TXS4558
www.ti.com
SLLSE93A –SEPTEMBER 2011–REVISED SEPTEMBER 2011
OPERATION
Clock Run Mode
SIMS have varying requirements for the SIM CLK. Using CLKRUN, the user can decide if the SIMxCLK pin
continuously transmits the CLK signal, or is brought low when the SIM is deselected with CSEL. If CLKRUNx is
LOW, the SIMxCLK is brought LOW two clock cycles after the SIMx is deselected with CSEL. If SIMxCLK is
high, the CLK transmits to the SIMxCLK, even if the SIMx is deselected with CSEL.
CSEL
When a channel is deselected using the CSEL pin, the SIMxRST state is latched, the SIMxIO becomes high
impedance and SIMxCLK function is dependent on CLKRUNx.
Operation Activation/Deactivation
When the EN1, EN2 pin is brought high, the device performs the activation sequence for the corresponding SIM
interface. Each SIM interface is activated independently based on its EN IO.
Activation Sequence
1. The device holds SIMxIO, SIMxCLK and SIMxRST low.
2. VSIMx is activated and powered.
3. The device waits for the VSIMx output to reach the correct voltage. Once this voltage is reached, SIMxIO,
and SIMxRST are enabled.
4. The SIMxCLK is activated on the 2nd rising edge after the SIMxIO is enabled.
When the ENx pin is brought low, the device performs the deactivation sequence for the corresponding SIM
interface. Deactivation Sequence,
Deactivation Sequence
1. SIMxRST is deactivated and set low.
2. Two clock cycles after EN is brought LOW, the SIMxCLK is disabled and brought LOW. If the CLK is not
active, SIMxCLK is disabled and brought low approximately 9us after ENx is brought low.
3. Approximately 9us after the ENx is brought LOW, SIMxIO is disabled and set LOW.
4. After SIMxIO is brought LOW, the VSIMx is deactivated and unpowered.
Copyright © 2011, Texas Instruments Incorporated
Submit Documentation Feedback
7
Product Folder Link(s): TXS4558
TXS4558
SLLSE93A –SEPTEMBER 2011–REVISED SEPTEMBER 2011
www.ti.com
APPLICATION INFORMATION
The LDO’s included on the TXS4558 achieve ultra-wide bandwidth and high loop gain, resulting in extremely
high PSRR at very low headroom (VBAT – VSIM1/2). The TXS4558 provides fixed regulation at 1.8V or 2.95V. Low
noise, GPIO enable and low ground pin current make it ideal for portable applications. The device offers current
limit and thermal protection, and is fully specified from –40°C to 125°C.
VSIM1
VDDIO
VBAT
TXS4558
1μF
VSIM2
GND
1μF
1μF
0.1μF
Figure 1. Typical Application Circuit for TXS4558
Input and Output Capacitor Requirements
It is good analog design practice to connect a 1.0 µF low equivalent series resistance (ESR) capacitor across the
input supply (VBAT) near the regulator. Also, a 0.1µF is required for the logic core supply (VCC).
This capacitor will counteract reactive input sources and improve transient response, noise rejection, and ripple
rejection. A higher-value capacitor may be necessary if large, fast rise-time load transients are anticipated or if
the device is located several inches from the power source. The LDO’s are designed to be stable with standard
ceramic capacitors of values 1.0 µF or larger. X5R- and X7R-type capacitors are best because they have
minimal variation in value and ESR over temperature. Maximum ESR should be <1.0 Ω.
Output Noise
In most LDO’s, the bandgap is the dominant noise source. To improve ac performance such as PSRR, output
noise, and transient response, it is recommended that the board be designed with separate ground planes for
VIN and VOUT, with each ground plane connected only at the GND pin of the device. In addition, the ground
connection for the bypass capacitor should connect directly to the GND pin of the device.
Internal Curent Limit
The TXS4558 internal current limit helps protect the regulator during fault conditions. During current limit, the
output sources a fixed amount of current that is largely independent of output voltage. For reliable operation, the
device should not be operated in a current limit state for extended periods of time.
The PMOS pass element in the TXS4558 has a built-in body diode that conducts current when the voltage at
VSIM1/2 exceeds the voltage at VBAT. This current is not limited, so if extended reverse voltage operation is
anticipated, external limiting may be appropriate.
Dropout Voltage
The TXS4558 uses a PMOS pass transistor to achieve low dropout. When (VBAT – VSIM1/2) is less than the
dropout voltage (VDO), the PMOS pass device is in its linear region of operation and the input-to-output
resistance is the RDS(ON) of the PMOS pass element. VDO will approximately scale with output current because
the PMOS device behaves like a resistor in dropout.
Startup
The TXS4558 uses a quick-start circuit which allows the combination of very low output noise and fast start-up
times.
8
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Product Folder Link(s): TXS4558
TXS4558
www.ti.com
SLLSE93A –SEPTEMBER 2011–REVISED SEPTEMBER 2011
Transient Response
As with any regulator, increasing the size of the output capacitor reduces over/undershoot magnitude but
increases duration of the transient response.
Minimum Load
The TXS4558 is stable and well-behaved with no output load. Traditional PMOS LDO regulators suffer from
lower loop gain at very light output loads. The TXS4558 employs an innovative low-current mode circuit to
increase loop gain under very light or no-load conditions, resulting in improved output voltage regulation
performance down to zero output current.
THERMAL INFORMATION
Thermal Protection
Thermal protection disables the output when the junction temperature rises to approximately +160°C, allowing
the device to cool. When the junction temperature cools to approximately +140°C the output circuitry is again
enabled. Depending on power dissipation, thermal resistance, and ambient temperature, the thermal protection
circuit may cycle on and off. This cycling limits the dissipation of the regulator, protecting it from damage
because of overheating.
Any tendency to activate the thermal protection circuit indicates excessive power dissipation or an inadequate
heat sink. For reliable operation, junction temperature should be limited to +125°C maximum. To estimate the
margin of safety in a complete design (including heat sink), increase the ambient temperature until the thermal
protection is triggered; use worst-case loads and signal conditions. For good reliability, thermal protection should
trigger at least +35°C above the maximum expected ambient condition of your particular application. This
configuration produces a worst-case junction temperature of 125°C at the highest expected ambient temperature
and worst-case load.
The internal protection circuitry of the TXS4558 has been designed to protect against overload conditions. It was
not intended to replace proper heat sinking. Continuously running the TXS4558 into thermal shutdown will
degrade device reliability.
TYPICAL CHARACTERISTICS
110
100
90
80
70
60
50
40
30
20
10
0
-90
-80
-70
-60
-50
-40
-30
-20
1.8 V Vsim
85°C Vsim
2.95 V Vsim
-40°C Vsim
25°C Vsim
-10
0
100
1000
10000
100000
1000000
0
5
10 15 20 25 30 35 40 45 50
- Output Current - mA
f - Frequency - Hz
I
OUT
Figure 2. PSRR
Figure 3. Dropout Voltage vs Output Current
Copyright © 2011, Texas Instruments Incorporated
Submit Documentation Feedback
9
Product Folder Link(s): TXS4558
TXS4558
SLLSE93A –SEPTEMBER 2011–REVISED SEPTEMBER 2011
www.ti.com
TYPICAL CHARACTERISTICS (continued)
1
0.8
0.6
0.4
0.2
0
0
-0.2
-0.4
-0.6
-0.8
-1
I
= 50 mA
O
-100 mA, Vsim
-40°C Vsim
-0.2
-0.4
-0.6
-0.8
-1
85°C Vsim
-1.2
-1.4
-1.6
-1.2
-1.4
-50 mA, Vsim
25°C Vsim
-1.6
-1.8
-2
-2.2
-2.4
-1.8
-2
0
5
10 15 20 25 30 35 40 45 50
- Output Current - mA
-40 -30 -20 -10
0
10 20 30 40 50 60 70 80
- Temperature - °C
I
OUT
T
A
Figure 4. Output Voltage vs Temperature, Class-B/C
Figure 5. Load Regulation, Iout = 50 mA, Class-C
0.2
0
0
-0.2
-0.4
-0.6
-0.8
-1
I = 50 mA
O
-40°C Vsim
-0.2
-0.4
-0.6
-40°C Vsim
25°C Vsim
25°C Vsim
-0.8
-1.2
-1.4
-1.6
-1.8
-2
85°C Vsim
-1
-1.2
85°C Vsim
-1.4
-1.6
I
= 50 mA
-1.8
-2
-2.2
-2.4
O
0
5
10 15 20 25 30 35 40 45 50
- Output Current - mA
2.7
3.1
3.5
3.9
V
4.3
- V
4.7
5.1
5.5
I
BAT
OUT
Figure 6. Load Regulation, Iout = 50 mA, Class-B
Figure 7. Line Regulation, Iout = 50 mA, Class-C
10
Submit Documentation Feedback
Copyright © 2011, Texas Instruments Incorporated
Product Folder Link(s): TXS4558
TXS4558
www.ti.com
SLLSE93A –SEPTEMBER 2011–REVISED SEPTEMBER 2011
TYPICAL CHARACTERISTICS (continued)
330
300
270
240
210
180
150
120
90
0
-0.2
-0.4
-0.6
-0.8
-1
I
= 50 mA
O
-40°C Vsim
25°C Vsim
-40°C Vsim
25°C Vsim
85°C Vsim
85°C Vsim
-1.2
-1.4
-1.6
-1.8
-2
60
30
-2.2
-2.4
0
2.7
3.1 3.3 3.5 3.7 3.9 4.1 4.3 4.5 4.7 4.9 5.1 5.3 5.5
3.5
3.1
3.9
V
4.3
- V
4.7
5.1
5.5
V
- V
BAT
BAT
Figure 8. Line Regulation, Iout = 50 mA, Class-B
Figure 9. Current Limit vs Input Voltage, Class-B/C
150
-50 mA, Vsim
120
90
60
30
-100 mA, Vsim
0
-40 -30 -20 -10
0
10 20 30 40 50 60 70 80
- ºC
T
A
Figure 10. Ground Current vs Temperature, Class-C
Copyright © 2011, Texas Instruments Incorporated
Submit Documentation Feedback
11
Product Folder Link(s): TXS4558
PACKAGE OPTION ADDENDUM
www.ti.com
23-Aug-2012
PACKAGING INFORMATION
Status (1)
Eco Plan (2)
MSL Peak Temp (3)
Samples
Orderable Device
Package Type Package
Drawing
Pins
Package Qty
Lead/
Ball Finish
(Requires Login)
TXS4558RUKR
ACTIVE
WQFN
RUK
20
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-2-260C-1 YEAR
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3) MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
Addendum-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
22-Aug-2012
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
Package Package Pins
Type Drawing
SPQ
Reel
Reel
A0
B0
K0
P1
W
Pin1
Diameter Width (mm) (mm) (mm) (mm) (mm) Quadrant
(mm) W1 (mm)
TXS4558RUKR
WQFN
RUK
20
3000
330.0
12.4
3.3
3.3
1.1
8.0
12.0
Q2
Pack Materials-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
22-Aug-2012
*All dimensions are nominal
Device
Package Type Package Drawing Pins
WQFN RUK 20
SPQ
Length (mm) Width (mm) Height (mm)
367.0 367.0 35.0
TXS4558RUKR
3000
Pack Materials-Page 2
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46C and to discontinue any product or service per JESD48B. Buyers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All
semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale supplied at the time
of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components which meet ISO/TS16949 requirements, mainly for automotive use. Components which
have not been so designated are neither designed nor intended for automotive use; and TI will not be responsible for any failure of such
components to meet such requirements.
Products
Audio
Applications
www.ti.com/audio
amplifier.ti.com
dataconverter.ti.com
www.dlp.com
Automotive and Transportation www.ti.com/automotive
Communications and Telecom www.ti.com/communications
Amplifiers
Data Converters
DLP® Products
DSP
Computers and Peripherals
Consumer Electronics
Energy and Lighting
Industrial
www.ti.com/computers
www.ti.com/consumer-apps
www.ti.com/energy
dsp.ti.com
Clocks and Timers
Interface
www.ti.com/clocks
interface.ti.com
logic.ti.com
www.ti.com/industrial
www.ti.com/medical
www.ti.com/security
Medical
Logic
Security
Power Mgmt
Microcontrollers
RFID
power.ti.com
Space, Avionics and Defense www.ti.com/space-avionics-defense
microcontroller.ti.com
www.ti-rfid.com
Video and Imaging
www.ti.com/video
OMAP Mobile Processors www.ti.com/omap
Wireless Connectivity www.ti.com/wirelessconnectivity
TI E2E Community
e2e.ti.com
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2012, Texas Instruments Incorporated
厂商 型号 描述 页数 下载

TI

 		TXS0101 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DBVR 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DBVRG4 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DBVT 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DBVTG4 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DCKR 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DCKRG4 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DCKT 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DCKTG4 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

TI

 		TXS0101DRLR 1位双向电压电平转换为漏极开路应用[ 1-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR OPEN-DRAIN APPLICATIONS ] 18 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.283954s
