1SMB5.0AT3/D

型号：

1SMB5.0AT3/D

描述：

齐纳瞬态电压抑制器\n[ Zener Transient Voltage Suppressors ]

品牌：

ETC[ ETC ]

页数：

8 页

PDF大小：

61 K

下载PDF手册

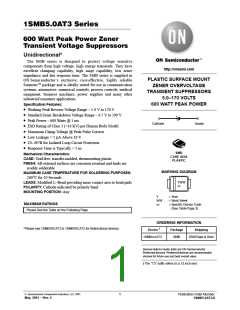

1SMB5.0AT3 Series
600 Watt Peak Power Zener
Transient Voltage Suppressors
Unidirectional*
The SMB series is designed to protect voltage sensitive
components from high voltage, high energy transients. They have
excellent clamping capability, high surge capability, low zener
impedance and fast response time. The SMB series is supplied in
ON Semiconductor’s exclusive, cost-effective, highly reliable
Surmetic package and is ideally suited for use in communication
systems, automotive, numerical controls, process controls, medical
equipment, business machines, power supplies and many other
industrial/consumer applications.
http://onsemi.com
PLASTIC SURFACE MOUNT
ZENER OVERVOLTAGE
TRANSIENT SUPPRESSORS
5.0–170 VOLTS
600 WATT PEAK POWER
Specification Features:
• Working Peak Reverse Voltage Range – 5.0 V to 170 V
• Standard Zener Breakdown Voltage Range – 6.7 V to 199 V
• Peak Power – 600 Watts @ 1 ms
• ESD Rating of Class 3 (>16 KV) per Human Body Model
• Maximum Clamp Voltage @ Peak Pulse Current
• Low Leakage < 5 µA Above 10 V
Cathode
Anode
• UL 497B for Isolated Loop Circuit Protection
• Response Time is Typically < 1 ns
SMB
CASE 403A
PLASTIC
Mechanical Characteristics:
CASE: Void-free, transfer-molded, thermosetting plastic
FINISH: All external surfaces are corrosion resistant and leads are
readily solderable
MARKING DIAGRAM
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
260°C for 10 Seconds
YWW
xx
LEADS: Modified L–Bend providing more contact area to bond pads
POLARITY: Cathode indicated by polarity band
MOUNTING POSITION: Any
Y
= Year
WW
xx
= Work Week
= Specific Device Code
= (See Table Page 3)
MAXIMUM RATINGS
Please See the Table on the Following Page
ORDERING INFORMATION
*Please see 1SMB10CAT3 to 1SMB78CAT3 for Bidirectional devices.
{
Device
Package
Shipping
2500/Tape & Reel
1SMBxxxAT3
SMB
Devices listed in bold, italic are ON Semiconductor
Preferred devices. Preferred devices are recommended
choices for future use and best overall value.
†The “T3” suffix refers to a 13 inch reel.
Semiconductor Components Industries, LLC, 2001
1
Publication Order Number:
May, 2001 – Rev. 4
1SMB5.0AT3/D
1SMB5.0AT3 Series
MAXIMUM RATINGS
Rating
Peak Power Dissipation (Note 1.) @ T = 25°C, Pulse Width = 1 ms
Symbol
Value
600
Unit
W
P
PK
L
DC Power Dissipation @ T = 75°C
P
D
3.0
W
L
Measured Zero Lead Length (Note 2.)
Derate Above 75°C
Thermal Resistance from Junction to Lead
40
25
mW/°C
°C/W
R
q
JL
DC Power Dissipation (Note 3.) @ T = 25°C
Derate Above 25°C
Thermal Resistance from Junction to Ambient
P
0.55
4.4
226
W
mW/°C
°C/W
A
D
R
q
JA
Forward Surge Current (Note 4.) @ T = 25°C
I
100
A
A
FSM
Operating and Storage Temperature Range
T , T
–65 to +150
°C
J
stg
1. 10 X 1000 ms, non–repetitive
2. 1″ square copper pad, FR–4 board
3. FR–4 board, using ON Semiconductor minimum recommended footprint, as shown in 403A case outline dimensions spec.
4. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses per minute maximum.
ELECTRICAL CHARACTERISTICS (T = 25°C unless
I
A
otherwise noted, V = 3.5 V Max. @ I (Note 5.) = 30 A)
F
F
I
F
Symbol
Parameter
I
Maximum Reverse Peak Pulse Current
Clamping Voltage @ I
PP
V
C
PP
V
C
V
V
V
Working Peak Reverse Voltage
BR RWM
RWM
V
I
V
F
R
T
I
R
Maximum Reverse Leakage Current @ V
I
RWM
V
Breakdown Voltage @ I
Test Current
BR
T
I
T
F
I
Forward Current
I
PP
V
F
Forward Voltage @ I
F
5. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms,
non–repetitive duty cycle.
Uni–Directional TVS
http://onsemi.com
2
1SMB5.0AT3 Series
ELECTRICAL CHARACTERISTICS (Devices listed in bold, italic are ON Semiconductor Preferred devices.)
Breakdown Voltage
V
C
@ I (Note 8.)
PP
V
RWM
V
BR
(Note 7.) Volts
@ I
V
C
I
PP
(Note 6.)
I
R
@ V
RWM
T
Device
Min
Nom
Max
mA
Volts
µA
Volts
Amps
Marking
Device
1SMB5.0AT3
1SMB6.0AT3
1SMB6.5AT3
1SMB7.0AT3
KE
KG
KK
KM
5.0
6.0
6.5
7.0
800
800
500
500
6.40
6.67
7.22
7.78
6.7
7.02
7.6
7.0
7.37
7.98
8.6
10
10
10
10
9.2
65.2
58.3
53.6
50.0
10.3
11.2
12.0
8.19
1SMB7.5AT3
1SMB8.0AT3
1SMB8.5AT3
1SMB9.0AT3
KP
KR
KT
KV
7.5
8.0
8.5
9.0
100
50
10
8.33
8.89
9.44
10.0
8.77
9.36
9.92
9.21
9.83
10.4
11.1
1.0
1.0
1.0
1.0
12.9
13.6
14.4
15.4
46.5
44.1
41.7
39.0
5.0
10.55
1SMB10AT3
1SMB11AT3
1SMB12AT3
1SMB13AT3
KX
KZ
LE
LG
10
11
12
13
5.0
5.0
5.0
5.0
11.1
12.2
13.3
14.4
11.7
12.85
14
12.3
13.5
14.7
15.9
1.0
1.0
1.0
1.0
17.0
18.2
19.9
21.5
35.3
33.0
30.2
27.9
15.15
1SMB14AT3
1SMB15AT3
1SMB16AT3
1SMB17AT3
LK
LM
LP
LR
14
15
16
17
5.0
5.0
5.0
5.0
15.6
16.7
17.8
18.9
16.4
17.6
18.75
19.9
17.2
18.5
19.7
20.9
1.0
1.0
1.0
1.0
23.2
24.4
26.0
27.6
25.8
24.0
23.1
21.7
1SMB18AT3
1SMB20AT3
1SMB22AT3
1SMB24AT3
LT
LV
LX
LZ
18
20
22
24
5.0
5.0
5.0
5.0
20.0
22.2
24.4
26.7
21.05
23.35
25.65
28.1
22.1
24.5
26.9
29.5
1.0
1.0
1.0
1.0
29.2
32.4
35.5
38.9
20.5
18.5
16.9
15.4
1SMB26AT3
1SMB28AT3
1SMB30AT3
1SMB33AT3
ME
MG
MK
MM
26
28
30
33
5.0
5.0
5.0
5.0
28.9
31.1
33.3
36.7
30.4
32.75
35.05
38.65
31.9
34.4
36.8
40.6
1.0
1.0
1.0
1.0
42.1
45.4
48.4
53.3
14.2
13.2
12.4
11.3
1SMB36AT3
1SMB40AT3
1SMB43AT3
1SMB45AT3
MP
MR
MT
MV
36
40
43
45
5.0
5.0
5.0
5.0
40.0
44.4
47.8
50.0
42.1
46.75
50.3
44.2
49.1
52.8
55.3
1.0
1.0
1.0
1.0
58.1
64.5
69.4
72.7
10.3
9.3
8.6
8.3
52.65
1SMB48AT3
1SMB51AT3
1SMB54AT3
1SMB58AT3
MX
MZ
NE
NG
48
51
54
58
5.0
5.0
5.0
5.0
53.3
56.7
60.0
64.4
56.1
59.7
63.15
67.8
58.9
62.7
66.3
71.2
1.0
1.0
1.0
1.0
77.4
82.4
87.1
93.6
7.7
7.3
6.9
6.4
1SMB60AT3
1SMB64AT3
1SMB70AT3
1SMB75AT3
NK
NM
NP
NR
60
64
70
75
5.0
5.0
5.0
5.0
66.7
71.1
77.8
83.3
70.2
74.85
81.9
73.7
78.6
86
1.0
1.0
1.0
1.0
96.8
103
113
121
6.2
5.8
5.3
4.9
87.7
92.1
1SMB78AT3
1SMB85AT3
1SMB90AT3
1SMB100AT3
NT
NV
NX
NZ
78
85
90
5.0
5.0
5.0
5.0
86.7
94.4
100
111
91.25
99.2
105.5
117
95.8
104
111
1.0
1.0
1.0
1.0
126
137
146
162
4.7
4.4
4.1
3.7
100
123
1SMB110AT3
1SMB120AT3
1SMB130AT3
1SMB150AT3
PE
PG
PK
PM
110
120
130
150
5.0
5.0
5.0
5.0
122
133
144
167
128.5
140
151.5
176
135
147
159
185
1.0
1.0
1.0
1.0
177
193
209
243
3.4
3.1
2.9
2.5
1SMB160AT3
1SMB170AT3
PP
PR
160
170
5.0
5.0
178
189
187.5
199
197
209
1.0
1.0
259
275
2.3
2.2
6. A transient suppressor is normally selected according to the working peak reverse voltage (V
the DC or continuous peak operating voltage level.
), which should be equal to or greater than
RWM
7. V measured at pulse test current I at an ambient temperature of 25°C.
BR
T
8. Surge current waveform per Figure 2 and derate per Figure 3 of the General Data – 600 W at the beginning of this group.
http://onsemi.com
3
1SMB5.0AT3 Series
100
10
PULSE WIDTH (t ) IS DEFINED AS
P
THAT POINT WHERE THE PEAK
NONREPETITIVE
t ≤ 10 µs
rĂ
PULSE WAVEFORM
SHOWN IN FIGURE 2
CURRENT DECAYS TO 50% OF I
.
PP
100
50
0
PEAK VALUE - I
PP
I
PP
2
HALF VALUE -
1
t
P
0.1
0.1 µs
1 µs
10 µs
100 µs
1 ms
10 ms
0
1
2
3
4
t , PULSE WIDTH
P
t, TIME (ms)
Figure 1. Pulse Rating Curve
Figure 2. Pulse Waveform
160
TYPICAL PROTECTION CIRCUIT
140
120
Z
in
100
80
LOAD
V
in
V
L
60
40
20
0
0
25
50
75
100
125
150
T , AMBIENT TEMPERATURE (°C)
A
Figure 3. Pulse Derating Curve
10,000
1000
MEASURED @
ZERO BIAS
MEASURED @ V
RWM
100
10
0.1
1
10
100
1000
V
BR
, BREAKDOWN VOLTAGE (VOLTS)
Figure 4. Capacitance versus Breakdown
Voltage
http://onsemi.com
4
1SMB5.0AT3 Series
APPLICATION NOTES
RESPONSE TIME
minimum lead lengths and placing the suppressor device as
close as possible to the equipment or components to be
protected will minimize this overshoot.
In most applications, the transient suppressor device is
placed in parallel with the equipment or component to be
protected. In this situation, there is a time delay associated
with the capacitance of the device and an overshoot
condition associated with the inductance of the device and
the inductance of the connection method. The capacitive
effect is of minor importance in the parallel protection
scheme because it only produces a time delay in the
transition from the operating voltage to the clamp voltage as
shown in Figure 5.
The inductive effects in the device are due to actual
turn-on time (time required for the device to go from zero
current to full current) and lead inductance. This inductive
effect produces an overshoot in the voltage across the
equipment or component being protected as shown in
Figure 6. Minimizing this overshoot is very important in the
application, since the main purpose for adding a transient
suppressor is to clamp voltage spikes. The SMB series have
a very good response time, typically < 1 ns and negligible
inductance. However, external inductive effects could
produce unacceptable overshoot. Proper circuit layout,
Some input impedance represented by Z is essential to
in
prevent overstress of the protection device. This impedance
should be as high as possible, without restricting the circuit
operation.
DUTY CYCLE DERATING
The data of Figure 1 applies for non-repetitive conditions
and at a lead temperature of 25°C. If the duty cycle increases,
the peak power must be reduced as indicated by the curves
of Figure 7. Average power must be derated as the lead or
ambient temperature rises above 25°C. The average power
derating curve normally given on data sheets may be
normalized and used for this purpose.
At first glance the derating curves of Figure 7 appear to be
in error as the 10 ms pulse has a higher derating factor than
the 10 µs pulse. However, when the derating factor for a
given pulse of Figure 7 is multiplied by the peak power value
of Figure 1 for the same pulse, the results follow the
expected trend.
http://onsemi.com
5
1SMB5.0AT3 Series
V
in
(TRANSIENT)
OVERSHOOT DUE TO
INDUCTIVE EFFECTS
V
V
V
in
(TRANSIENT)
V
L
V
L
V
in
t
d
t
D
= TIME DELAY DUE TO CAPACITIVE EFFECT
t
t
Figure 5.
Figure 6.
1
0.7
0.5
0.3
0.2
PULSE WIDTH
10 ms
0.1
0.07
0.05
1 ms
0.03
0.02
100 µs
10 µs
10 20
D, DUTY CYCLE (%)
0.01
0.1 0.2
0.5
1
2
5
50 100
Figure 7. Typical Derating Factor for Duty Cycle
UL RECOGNITION
The entire series has Underwriters Laboratory
Recognition for the classification of protectors (QVGV2)
under the UL standard for safety 497B and File #116110.
Many competitors only have one or two devices recognized
or have recognition in a non-protective category. Some
competitors have no recognition at all. With the UL497B
recognition, our parts successfully passed several tests
including Strike Voltage Breakdown test, Endurance
Conditioning, Temperature test, Dielectric
Voltage-Withstand test, Discharge test and several more.
Whereas, some competitors have only passed a
flammability test for the package material, we have been
recognized for much more to be included in their Protector
category.
http://onsemi.com
6
1SMB5.0AT3 Series
OUTLINE DIMENSIONS
Transient Voltage Suppressors – Surface Mounted
600 Watt Peak Power
SMB
DO–214AA
CASE 403A–03
ISSUE D
S
A
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. D DIMENSION SHALL BE MEASURED WITHIN
DIMENSION P.
D
B
INCHES
DIM MIN MAX
MILLIMETERS
MIN
4.06
3.30
1.90
1.96
MAX
4.57
3.81
2.41
2.11
0.152
0.30
1.27
A
B
C
D
H
J
0.160
0.130
0.075
0.077
0.180
0.150
0.095
0.083
0.0020 0.0060 0.051
0.006
0.030
0.012
0.050
0.15
0.76
K
P
S
C
0.020 REF
0.51 REF
0.205
0.220
5.21
5.59
H
J
K
P
0.089
2.261
0.108
2.743
inches
mm
0.085
2.159
SMB Footprint
http://onsemi.com
7
1SMB5.0AT3 Series
Surmetic is a trademark of Semiconductor Components Industries, LLC.
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes
without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular
purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability,
including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or
specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be
validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others.
SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications
intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or
death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold
SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable
attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim
alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer.
PUBLICATION ORDERING INFORMATION
NORTH AMERICA Literature Fulfillment:
CENTRAL/SOUTH AMERICA:
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Spanish Phone: 303–308–7143 (Mon–Fri 8:00am to 5:00pm MST)
Email: ONlit–spanish@hibbertco.com
Phone: 303–675–2175 or 800–344–3860 Toll Free USA/Canada
Fax: 303–675–2176 or 800–344–3867 Toll Free USA/Canada
Email: ONlit@hibbertco.com
Toll–Free from Mexico: Dial 01–800–288–2872 for Access –
then Dial 866–297–9322
ASIA/PACIFIC: LDC for ON Semiconductor – Asia Support
Phone: 1–303–675–2121 (Tue–Fri 9:00am to 1:00pm, Hong Kong Time)
Toll Free from Hong Kong & Singapore:
Fax Response Line: 303–675–2167 or 800–344–3810 Toll Free USA/Canada
N. American Technical Support: 800–282–9855 Toll Free USA/Canada
001–800–4422–3781
EUROPE: LDC for ON Semiconductor – European Support
German Phone: (+1) 303–308–7140 (Mon–Fri 2:30pm to 7:00pm CET)
Email: ONlit–german@hibbertco.com
French Phone: (+1) 303–308–7141 (Mon–Fri 2:00pm to 7:00pm CET)
Email: ONlit–french@hibbertco.com
Email: ONlit–asia@hibbertco.com
JAPAN: ON Semiconductor, Japan Customer Focus Center
4–32–1 Nishi–Gotanda, Shinagawa–ku, Tokyo, Japan 141–0031
Phone: 81–3–5740–2700
Email: r14525@onsemi.com
English Phone: (+1) 303–308–7142 (Mon–Fri 12:00pm to 5:00pm GMT)
Email: ONlit@hibbertco.com
ON Semiconductor Website: http://onsemi.com
EUROPEAN TOLL–FREE ACCESS*: 00–800–4422–3781
For additional information, please contact your local
Sales Representative.
*Available from Germany, France, Italy, UK, Ireland
1SMB5.0AT3/D
厂商 型号 描述 页数 下载

Carling Technologies

 		1SM-WMSP1-R2-M6KE [ Rocker Switch, SPDT, Latched, 0.02A, 20VDC, Solder Terminal, Narrow Rocker Type Actuator, Surface Mount-right Angle ] 5 页

Carling Technologies

 		1SM-WMSP1-R2-M6KET/R [ Rocker Switch, SPDT, Latched, 0.02A, 20VDC, Solder Terminal, Narrow Rocker Type Actuator, Surface Mount-right Angle ] 5 页

Carling Technologies

 		1SM-WMSP1-R2-M6PE [ Rocker Switch, SPDT, Latched, 3A, 28VDC, Solder Terminal, Narrow Rocker Type Actuator, Surface Mount-right Angle ] 5 页

Carling Technologies

 		1SM-WMSP1-R2-S6GET/R [ Rocker Switch, SPDT, Latched, 3A, 28VDC, Solder Terminal, Narrow Rocker Type Actuator, Surface Mount-right Angle ] 5 页

Carling Technologies

 		1SM-WMSP1-R2-S6QE [ Rocker Switch, SPDT, Latched, 3A, 28VDC, Solder Terminal, Narrow Rocker Type Actuator, Surface Mount-right Angle ] 5 页

Carling Technologies

 		1SM-WMSP1-R2-S7GE [ Rocker Switch, SPDT, Latched, 3A, 28VDC, Solder Terminal, Narrow Rocker Type Actuator, Surface Mount-right Angle, ] 5 页

Carling Technologies

 		1SM-WMSP1-R2-S7QE [ Rocker Switch, SPDT, Latched, 3A, 28VDC, Solder Terminal, Narrow Rocker Type Actuator, Surface Mount-right Angle ] 5 页

Carling Technologies

 		1SM-WMSP2-R2-M6GE [ Rocker Switch, SPDT, Momentary, 3A, 28VDC, Solder Terminal, Narrow Rocker Type Actuator, Surface Mount-right Angle ] 5 页

Carling Technologies

 		1SM-WMSP2-R2-M6PE [ Rocker Switch, SPDT, Momentary, 3A, 28VDC, Solder Terminal, Narrow Rocker Type Actuator, Surface Mount-right Angle ] 5 页

Carling Technologies

 		1SM-WMSP2-R2-M6PET/R [ Rocker Switch, SPDT, Momentary, 3A, 28VDC, Solder Terminal, Narrow Rocker Type Actuator, Surface Mount-right Angle ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.226301s
