SZNUP2105LT1G

型号：

SZNUP2105LT1G

描述：

双线CAN总线保护器[ Dual Line CAN Bus Protector ]

品牌：

ONSEMI[ ONSEMI ]

页数：

8 页

PDF大小：

148 K

下载PDF手册

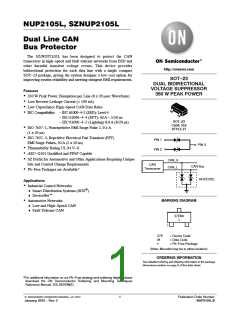

NUP2105L, SZNUP2105L
Dual Line CAN
Bus Protector
The SZ/NUP2105L has been designed to protect the CAN
transceiver in high−speed and fault tolerant networks from ESD and
other harmful transient voltage events. This device provides
bidirectional protection for each data line with a single compact
SOT−23 package, giving the system designer a low cost option for
improving system reliability and meeting stringent EMI requirements.
http://onsemi.com
SOT−23
DUAL BIDIRECTIONAL
VOLTAGE SUPPRESSOR
350 W PEAK POWER
Features
350 W Peak Power Dissipation per Line (8 x 20 msec Waveform)
Low Reverse Leakage Current (< 100 nA)
Low Capacitance High−Speed CAN Data Rates
IEC Compatibility: − IEC 61000−4−2 (ESD): Level 4
− IEC 61000−4−4 (EFT): 40 A – 5/50 ns
− IEC 61000−4−5 (Lighting) 8.0 A (8/20 ms)
ISO 7637−1, Nonrepetitive EMI Surge Pulse 2, 9.5 A
(1 x 50 ms)
SOT−23
CASE 318
STYLE 27
ISO 7637−3, Repetitive Electrical Fast Transient (EFT)
EMI Surge Pulses, 50 A (5 x 50 ns)
Flammability Rating UL 94 V−0
PIN 1
PIN 3
PIN 2
AEC−Q101 Qualified and PPAP Capable
SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements
Pb−Free Packages are Available*
CAN_H
CAN
Transceiver
CAN Bus
CAN_L
NUP2105L
Applications
Industrial Control Networks
Smart Distribution Systems (SDS )
DeviceNet
MARKING DIAGRAM
Automotive Networks
Low and High−Speed CAN
Fault Tolerant CAN
27EMG
G
1
27E
M
= Device Code
= Date Code
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
Semiconductor Components Industries, LLC, 2012
1
Publication Order Number:
January, 2012 − Rev. 5
NUP2105L/D
NUP2105L, SZNUP2105L
MAXIMUM RATINGS (T = 25C, unless otherwise specified)
J
Symbol
Rating
Value
Unit
PPK
Peak Power Dissipation
W
8 x 20 ms Double Exponential Waveform (Note 1)
Operating Junction Temperature Range
Storage Temperature Range
350
T
T
−55 to 150
−55 to 150
260
C
C
C
J
J
L
T
Lead Solder Temperature (10 s)
ESD
Human Body model (HBM)
Machine Model (MM)
IEC 61000−4−2 Specification (Contact)
16
400
30
kV
V
kV
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit
values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied,
damage may occur and reliability may be affected.
1. Non−repetitive current pulse per Figure 1.
ELECTRICAL CHARACTERISTICS (T = 25C, unless otherwise specified)
J
Symbol
Parameter
Reverse Working Voltage
Breakdown Voltage
Test Conditions
Min
24
26.2
−
Typ
−
Max
−
Unit
V
V
RWM
(Note 2)
I = 1 mA (Note 3)
V
BR
−
32
V
T
I
R
Reverse Leakage Current
Clamping Voltage
V
RWM
= 24 V
15
−
100
40
nA
V
V
C
I
PP
= 5 A (8 x 20 ms Waveform)
−
(Note 4)
V
C
Clamping Voltage
I
= 8 A (8 x 20 ms Waveform)
−
−
44
V
PP
(Note 4)
I
Maximum Peak Pulse Current
Capacitance
8 x 20 ms Waveform (Note 4)
−
−
−
−
8.0
30
A
PP
CJ
V
R
= 0 V, f = 1 MHz (Line to GND)
pF
2. TVS devices are normally selected according to the working peak reverse voltage (V
or continuous peak operating voltage level.
), which should be equal or greater than the DC
RWM
3. V is measured at pulse test current I .
BR
T
4. Pulse waveform per Figure 1.
ORDERING INFORMATION
Device
†
Package
Shipping
NUP2105LT1
SOT−23
3,000 / Tape & Reel
3,000 / Tape & Reel
NUP2105LT1G
SOT−23
(Pb−Free)
SZNUP2105LT1G
SOT−23
(Pb−Free)
3,000 / Tape & Reel
NUP2105LT3
SOT−23
10,000 / Tape & Reel
10,000 / Tape & Reel
NUP2105LT3G
SOT−23
(Pb−Free)
SZNUP2105LT3G
SOT−23
(Pb−Free)
10,000 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
http://onsemi.com
2

NUP2105L, SZNUP2105L
TYPICAL PERFORMANCE CURVES
(T = 25C unless otherwise noted)
J
12.0
110
100
90
WAVEFORM
PARAMETERS
t = 8 ms
PULSE WAVEFORM
8 x 20 ms per Figure 1
10.0
8.0
6.0
4.0
r
80
t = 20 ms
d
c−t
70
60
50
t = I /2
d
PP
40
30
20
10
0
2.0
0.0
0
5
10
15
t, TIME (ms)
20
25
30
25
30
35
40
45
50
V , CLAMPING VOLTAGE (V)
C
Figure 1. Pulse Waveform, 8 20 ms
Figure 2. Clamping Voltage vs Peak Pulse Current
50
35
30
25
20
f = 1.0 MHz, Line to Ground
45
40
35
30
25
20
15
10
5
125C
25C
25C
65C
−40C
15
10
−55C
T = +150C
A
0
0
2
4
6
8
10
20
22
24
26
28
30
32
34
V , REVERSE VOLTAGE (V)
R
V
BR
, VOLTAGE (V)
Figure 4. VBR versus IT Characteristics
Figure 3. Typical Junction Capacitance vs
Reverse Voltage
120
100
80
60
40
20
0
25
20
15
10
5
−55C
+25C
T = +150C
A
+65C
0
0
2
4
6
8
10
12
−60
−30
0
30
60
90
120
150 180
I , LEAKAGE CURRENT (nA)
L
TEMPERATURE (C)
Figure 5. IR versus Temperature Characteristics
Figure 6. Temperature Power Dissipation Derating
http://onsemi.com
3

NUP2105L, SZNUP2105L
APPLICATIONS
Background
ESD. The NUP2105L has been tested to EMI and ESD
levels that exceed the specifications of popular high speed
CAN networks.
The Controller Area Network (CAN) is a serial
communication protocol designed for providing reliable
high speed data transmission in harsh environments. TVS
diodes provide a low cost solution to conducted and radiated
Electromagnetic Interference (EMI) and Electrostatic
Discharge (ESD) noise problems. The noise immunity level
and reliability of CAN transceivers can be easily increased
by adding external TVS diodes to prevent transient voltage
failures.
CAN Physical Layer Requirements
Table 1 provides a summary of the system requirements
for a CAN transceiver. The ISO 11898−2 physical layer
specification forms the baseline for most CAN systems. The
transceiver requirements for the Honeywell Smart
Distribution
Systems
(SDS )
and
Rockwell
(Allen−Bradley) DeviceNethigh speed CAN networks
are similar to ISO 11898−2. The SDS and DeviceNet
transceiver requirements are similar to ISO 11898−2;
however, they include minor modifications required in an
industrial environment.
The NUP2105L provides a transient voltage suppression
solution for CAN data communication lines. The
NUP2105L is a dual bidirectional TVS device in a compact
SOT−23 package. This device is based on Zener technology
that optimizes the active area of a PN junction to provide
robust protection against transient EMI surge voltage and
Table 1. Transceiver Requirements for High−Speed CAN Networks
Parameter
ISO 11898−2
SDS Physical Layer
Specification 2.0
DeviceNet
Min / Max Bus Voltage
(12 V System)
−3.0 V / 16 V
11 V / 25 V
Same as ISO 11898−2
Common Mode Bus Voltage
CAN_L:
−2.0 V (min)
2.5 V (nom)
CAN_H:
Same as ISO 11898−2
Same as ISO 11898−2
2.5 V (nom)
7.0 V (max)
Transmission Speed
ESD
1.0 Mb/s @ 40 m
125 kb/s @ 500 m
Same as ISO 11898−2
500 kb/s @ 100 m
125 kb/s @ 500 m
Not specified, recommended
w $8.0 kV (contact)
Not specified, recommended
w $8.0 kV (contact)
Not specified, recommended
w $8.0 kV (contact)
EMI Immunity
ISO 7637−3, pulses ‘a’ and ‘b’
IEC 61000−4−4 EFT
Same as ISO 11898−2
Popular Applications
Automotive, Truck, Medical
and Marine Systems
Industrial Control Systems
Industrial Control Systems
http://onsemi.com
4

NUP2105L, SZNUP2105L
EMI Specifications
61000−4 and ISO 7637 tests are similar; however, the IEC
standard was created as a generic test for any electronic
system, while the ISO 7637 standard was designed for
vehicular applications. The IEC61000−4−4 Electrical Fast
Transient (EFT) specification is similar to the ISO 7637−1
pulse 1 and 2 tests and is a requirement of SDS CAN
systems. The IEC 61000−4−5 test is used to define the power
absorption capacity of a TVS device and long duration
voltage transients such as lightning. Table 2 provides a
summary of the ISO 7637 and IEC 61000−4−X test
specifications. Table 3 provides the NUP2105L’s ESD
test results.
The EMI protection level provided by the TVS device can
be measured using the International Organization for
Standardization (ISO) 7637−1 and −3 specifications that are
representative of various noise sources. The ISO 7637−1
specification is used to define the susceptibility to coupled
transient noise on a 12 V power supply, while ISO 7637−3
defines the noise immunity tests for data lines. The ISO 7637
tests also verify the robustness and reliability of a design by
applying the surge voltage for extended durations.
The IEC 61000−4−X specifications can also be used to
quantify the EMI immunity level of a CAN system. The IEC
Table 2. ISO 7637 and IEC 61000−4−X Test Specifications
Test
Waveform
Test Specifications
NUP2105L Test
= 1.75 A
Simulated Noise Source
V = 0 to −100 V
I
DUT in parallel with
inductive load that is
disconnected from power
supply.
s
max
I
= 10 A
V
_
= 31 V
max
clamp max
t
= 5000 pulses
duration
Pulse 1
t
= 5000 pulses
duration
R = 10 W, t = 1.0 ms,
i
r
t
= 2000 ms, t = 2.5 s,
d_10%
1
ISO 7637−1
t = 200 ms, t = 100 ms
2
3
V = 0 to +100 V
I
= 9.5 A
DUT in series with inductor
that is disconnected.
12 V Power Supply Lines
s
max
I
= 10 A
V
_
= 33 V
max
clamp max
duration
t
= 5000 pulses
Pulse 2
t
= 5000 pulses
duration
Ri = 10 W, t = 1.0 ms,
r
t
= 50 ms, t = 2.5 s,
d_10%
1
t = 200 ms
2
V = −60 V
max
I
= 50 A
Switching noise of inductive
loads.
s
max
_
Pulse ‘a’
Pulse ‘b’
V
= 40 V
I
= 1.2 A
clamp max
duration
t
= 60 minutes
ISO 7637−3
t
= 10 minutes
duration
R = 50 W, t = 5.0 ns,
i
r
V = +40 V
Data Line EFT
s
max
t
= 0.1 ms, t = 100 ms,
d_10%
1
I
= 0.8 A
t = 10 ms, t = 90 ms
2
3
t
= 10 minutes
duration
V
= 2.0 kV
= 40 A
(Note 2)
Switching noise of inductive
loads.
open circuit
short circuit
I
(Level 4 = Severe Industrial
Environment)
IEC 61000−4−4
R = 50 W, t < 5.0 ns,
i
r
Data Line EFT
t
= 50 ns, t
= 15 ms,
d_50%
burst
f
= 2.0 to 5.0 kHz,
repeat
burst
t
= 300 ms
= 1 minute
t
duration
V
= 1.2 x 50 ms,
short circuit
Lightning, nonrepetitive
power line and load
switching
open circuit
I
= 8 x 20 ms
IEC 61000−4−5
R = 50 W
i
1. DUT = device under test.
2. The EFT immunity level was measured with test limits beyond the IEC 61000−4−4 test, but with the more severe test conditions of
ISO 7637−3.
Table 3. NUP2105L ESD Test Results
ESD Specification
Human Body Model
Test
Test Level
Pass / Fail
Contact
Contact
16 kV
Pass
Pass
Pass
30 kV (Note 3)
30 kV (Note 3)
IEC 61000−4−2
Non−contact (Air Discharge)
3. Test equipment maximum test voltage is 30 kV.
http://onsemi.com
5

NUP2105L, SZNUP2105L
TVS Diode Protection Circuit
voltage of the diode that is reversed biased, plus the diode
drop of the second diode that is forwarded biased.
TVS diodes provide protection to a transceiver by
clamping a surge voltage to a safe level. TVS diodes have
high impedance below and low impedance above their
breakdown voltage. A TVS Zener diode has its junction
optimized to absorb the high peak energy of a transient
event, while a standard Zener diode is designed and
specified to clamp a steady state voltage.
CAN_H
CAN
Transceiver
CAN Bus
CAN_L
NUP2105L
Figure 7 provides an example of a dual bidirectional
TVS diode array that can be used for protection with the
high−speed CAN network. The bidirectional array is created
from four identical Zener TVS diodes. The clamping
voltage of the composite device is equal to the breakdown
Figure 7. High−Speed and Fault Tolerant CAN TVS
Protection Circuit
http://onsemi.com
6

NUP2105L, SZNUP2105L
PACKAGE DIMENSIONS
SOT−23 (TO−236)
CASE 318−08
ISSUE AP
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
D
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH
THICKNESS. MINIMUM LEAD THICKNESS IS THE MINIMUM
THICKNESS OF BASE MATERIAL.
SEE VIEW C
3
4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH,
PROTRUSIONS, OR GATE BURRS.
H
E
MILLIMETERS
INCHES
E
DIM
A
A1
b
c
D
E
e
L
L1
MIN
0.89
0.01
0.37
0.09
2.80
1.20
1.78
0.10
0.35
NOM
1.00
0.06
0.44
0.13
2.90
1.30
1.90
0.20
0.54
MAX
MIN
NOM
0.040
0.002
0.018
0.005
0.114
0.051
0.075
0.008
0.021
MAX
0.044
0.004
0.020
0.007
0.120
0.055
0.081
0.012
0.029
1.11
0.10
0.50
0.18
3.04
1.40
2.04
0.30
0.69
0.035
0.001
0.015
0.003
0.110
0.047
0.070
0.004
0.014
c
1
2
b
0.25
e
q
H
q
2.10
0
2.40
−−−
2.64
10
0.083
0
0.094
−−−
0.104
10
A
E
L
STYLE 27:
A1
L1
VIEW C
PIN 1. CATHODE
2. CATHODE
3. CATHODE
SOLDERING FOOTPRINT
0.95
0.037
0.95
0.037
2.0
0.079
0.9
0.035
mm
inches
ǒ
Ǔ
SCALE 10:1
0.8
0.031
Honeywell and SDS are registered trademarks of Honeywell International Inc.
DeviceNet is a trademark of Rockwell Automation.
ON Semiconductor and
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice
to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All
operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights
nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications
intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should
Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
For additional information, please contact your local
Sales Representative
NUP2105L/D
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
ON Semiconductor:
SZNUP2105LT1G SZNUP2105LT3G NUP2105LT1 NUP2105LT1G NUP2105LT3G
厂商 型号 描述 页数 下载

ETC

 		SZN-002T-P0.7K [ Crimping tools ] 6 页

ETC

 		SZN-003T-P0.7K [ Crimping tools ] 6 页

SSDI

 		SZN4460 3.3 - 200伏齐纳二极管[ 3.3 – 200 VOLTS ZENER DIODES ] 2 页

SSDI

 		SZN4460C [ Zener Diode, 6.2V V(Z), 2%, 1.5W, Silicon, Unidirectional, HERMETIC SEALED, GLASS PACKAGE-2 ] 2 页

SSDI

 		SZN4460CSMS [ Zener Diode, 6.2V V(Z), 2%, 1.5W, Silicon, Unidirectional, HERMETIC SEALED, GLASS, SMS, 2 PIN ] 2 页

SSDI

 		SZN4460CSMSNGC [ Zener Diode ] 2 页

SSDI

 		SZN4460CSMSS [ 暂无描述 ] 2 页

SSDI

 		SZN4460CSMSTX [ Zener Diode, 6.2V V(Z), 2%, 1.5W, Silicon, Unidirectional, HERMETIC SEALED, GLASS, SMS, 2 PIN ] 2 页

SSDI

 		SZN4460CSMSTXV [ Zener Diode, 6.2V V(Z), 2%, 1.5W, Silicon, Unidirectional, HERMETIC SEALED, GLASS, SMS, 2 PIN ] 2 页

SSDI

 		SZN4460CSMTXV [ Zener Diode ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.271316s
