FYSH-5050RGB-150-12VWWF

型号:

FYSH-5050RGB-150-12VWWF

描述:

柔性防水RGB LED灯条采用白色PCB[ Waterproof Flexible RGB LED Strip With White PCB ]

品牌:

FORYARD[ NINGBO FORYARD OPTOELECTRONICS CO., LTD. ]

页数:

7 页

PDF大小:

726 K

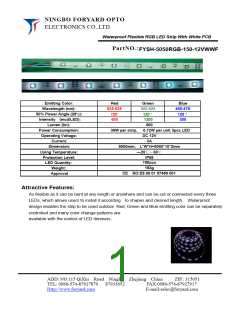

NINGBO FORYARD OPTO
ELECTRONICS CO.,LTD.
Waterproof Flexible RGB LED Strip With White PCB
PartNO.:
FYSHꢀ5050RGBꢀ150ꢀ12VWWF
Emitting
Wavelength
50% Power Angle
Intensityꢁ ꢁ (mcd/LED):
Lumen (lm):
Power Consumption:
Operating Voltage:
Color:
(nm):
(2θ½):
Red
Green
520ꢀ525
120
Blue
465ꢀ475
120
625ꢀ635
120
˚
600
1300
300
600
36W
per
strip,ꢁ ꢁ ꢁ 0.72W
DC 12V
3A
5000mm,ꢁ ꢁ L*W*H=5000*10*2mm
perunit3pcsLED
Current:
Dimension:
—20℃~60
Using
Protection
LED Quantity:
Temperature:
Level:
IP65
150pcs
183g
Weight:
CE
NO:E8060157489001
Approval
AttractiveꢁFeatures:
As flexible as it can be bent at any length or anywhere and can be cut or connected every three
LEDs, which allows users to install it according to shapes and desired length. Waterproof
design enables the strip to be used outdoor. Red, Green and Blue emitting color can be separately
controlled and many color change patterns are
available with the control of LED dimmers.
ADD: NO.115 QiXin Road NingBo Zhejiang China
ZIP.: 315051
TEL: 0086-574-87927870 87933652
Http://www.foryard.com
FAX:0086-574-87927917
E-mail:sales@foryard.com
NINGBO FORYARD OPTO
ELECTRONICS CO.,LTD.
Waterproof Flexible RGB LED Strip With White PCB
PartNO.:
FYSHꢀ5050RGBꢀ150ꢀ12VWWF
OtherꢁFeatures:
1. CE Approved & Rohs Complied
2. Emitting Color: RGB
3. Unique circuit design with strong resistance against
static electricity ensures the stability of the modules, long lifespan guarantee
4.Dimensions: L*W*H=495*11*0.2mm for a strip, L*W*H=4950*11*0.2mm for a reel
5. waterproof function
6. Application: Channel Letters, Decoration, Sign Illumination, especially for channel letters
requiring for substantial curving and bending of light source.
ADD: NO.115 QiXin Road NingBo Zhejiang China
ZIP.: 315051
TEL: 0086-574-87927870 87933652
Http://www.foryard.com
FAX:0086-574-87927917
E-mail:sales@foryard.com
NINGBO FORYARD OPTO
ELECTRONICS CO.,LTD.
Waterproof Flexible RGB LED Strip With White PCB
PartNO.:
FYSHꢀ5050RGBꢀ150ꢀ12VWWF
Wired RGB Controller
ModelFY-V300-DC12V
ADD: NO.115 QiXin Road NingBo Zhejiang China
ZIP.: 315051
TEL: 0086-574-87927870 87933652
Http://www.foryard.com
FAX:0086-574-87927917
E-mail:sales@foryard.com
NINGBO FORYARD OPTO
ELECTRONICS CO.,LTD.
Waterproof Flexible RGB LED Strip With White PCB
PartNO.:
FYSHꢀ5050RGBꢀ150ꢀ12VWWF
Product Instruction
FY-V300 key-press type multifunctional LED RGB controller is used exclusively to control the RGB color of the
LED modules with 4 lines and 3 loops (common anode) to change entirely and synchronously.
Performance Specification:
Operation Instruction:
1”Mode” key is used to choose a mode. The mode will be changed after each press and total
10 modes can be chosen circularly.
2. ”PAUSE” key is used to pause. When it is working in order, press “PAUSE” key, the
present color or gray scale will stand by. Press “PAUSE” again or other key, it will be
back to the normal state.
3. “SPD+” or “SPD-” key is to change the speed. There are total 8 levels of speeds adjustable.
The default speed when the controller powered is the 1st level speed, namely the maximum speed.
ADD: NO.115 QiXin Road NingBo Zhejiang China
ZIP.: 315051
TEL: 0086-574-87927870 87933652
Http://www.foryard.com
FAX:0086-574-87927917
E-mail:sales@foryard.com
NINGBO FORYARD OPTO
ELECTRONICS CO.,LTD.
Waterproof Flexible RGB LED Strip With White PCB
PartNO.:
FYSHꢀ5050RGBꢀ150ꢀ12VWWF
4. “BRI+” or “BRI-” key is to change the brightness. There are total 8 levels of brightness
adjustable. The default brightness when the controller powered is the maximum.
5. After above settings done, the controller will automatically save the settings. Then when
powering the controller next time, it will work under the final mode settings saved last time.
**Precaution: When operating, please press the keys gently, but don’t
overexert to avoid the membrane key-presses failing to function.
ADD: NO.115 QiXin Road NingBo Zhejiang China
ZIP.: 315051
TEL: 0086-574-87927870 87933652
Http://www.foryard.com
FAX:0086-574-87927917
E-mail:sales@foryard.com
NINGBO FORYARD OPTO
ELECTRONICS CO.,LTD.
Waterproof Flexible RGB LED Strip With White PCB
PartNO.:
FYSHꢀ5050RGBꢀ150ꢀ12VWWF
ADD: NO.115 QiXin Road NingBo Zhejiang China
ZIP.: 315051
TEL: 0086-574-87927870 87933652
Http://www.foryard.com
FAX:0086-574-87927917
E-mail:sales@foryard.com
NINGBO FORYARD OPTO
ELECTRONICS CO.,LTD.
Waterproof Flexible RGB LED Strip With White PCB
PartNO.:
FYSHꢀ5050RGBꢀ150ꢀ12VWWF
ADD: NO.115 QiXin Road NingBo Zhejiang China
ZIP.: 315051
TEL: 0086-574-87927870 87933652
Http://www.foryard.com
FAX:0086-574-87927917
E-mail:sales@foryard.com
