FYSH-3528UGC-66-12VF

型号:

FYSH-3528UGC-66-12VF

描述:

单色柔性贴片灯条规格[ Monocolor Flexible SMD LED Strip Specification ]

品牌:

FORYARD[ NINGBO FORYARD OPTOELECTRONICS CO., LTD. ]

页数:

4 页

PDF大小:

128 K

NINGBO FORYARD OPTO
ELECTRONICS CO.,LTD.

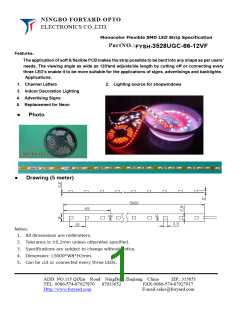

Monocolor Flexible SMD LED Strip Specification
PartNO.:
3528UGC-66-12VF
FYSH-
Features
The application of soft & flexible PCB makes the strip possible to be bent into any shape as per users’
needs. The viewing angle as wide as 120°and adjusta ble length by cutting off or connecting every
three LED's enable it to be more suitable for the applications of signs, advertisings and backlights.
Applications:
1. Channel Letters
2. Lighting source for shopwindows
3. Indoor Decoration Lighting
4. Advertising Signs
5. Replacement for Neon
Drawing (5 meter)
Notes:
1. All dimensions are millimeters.
2. Tolerance is ±0.2mm unless otherwise specified.
3. Specifications are subject to change without notice.
4. Dimension: L5000*W8*H2mm.
5. Can be cut or connected every three LEDs.
ADD: NO.115 QiXin Road NingBo Zhejiang China
ZIP.: 315051
TEL: 0086-574-87927870 87933652
Http://www.foryard.com
FAX:0086-574-87927917
E-mail:sales@foryard.com
NINGBO FORYARD OPTO
ELECTRONICS CO.,LTD.
Monocolor Flexible SMD LED Strip Specification
PartNO.:
3528UGC-66-12VF
FYSH-
Circuit Diagram(a single group)
Rating Electrical/Optical Characteristics
Item
Green
DC 12V
5.28
Operation Voltage(V)
Power Dissipation(W)
Input Current (mA)
440
Wavelength(nm)
515~525
700
Single LED Luminous
Intensity(MCD)
Luminous Flux(lm)
Angle(°)
680
120
Operation Temperature(
)
-20~60
20
Single LED
Operating
Current(mA)
LED Quantity(pcs)
330
Dimension:(mm)
Life Time(hrs)
Net Weight:(g)
L5000*W8*H2mm
50000
40
Approval
CE (NO:E8N 08 03 57489 002)
ADD: NO.115 QiXin Road NingBo Zhejiang China
ZIP.: 315051
TEL: 0086-574-87927870 87933652
Http://www.foryard.com
FAX:0086-574-87927917
E-mail:sales@foryard.com
NINGBO FORYARD OPTO
ELECTRONICS CO.,LTD.
Monocolor Flexible SMD LED Strip Specification
PartNO.:
3528UGC-66-12VF
FYSH-
Package(5 meters)
1. The backsides of all products will stick ‘3M’ branded double-sided sticker with 8mm width.
2. Size of Reel (unit: mm)
3. Size of Inner Carton (unit: mm)
4 .Size of Outer Carton (unit: mm)
5. Packing Quantity
5meters/reel, 3reels/inner carton20 inner cartons/outer carton
6. A manual titled ‘Precautions in the Use of LED Products’ will be put into each anti-static bag for all
products.
ADD: NO.115 QiXin Road NingBo Zhejiang China
ZIP.: 315051
TEL: 0086-574-87927870 87933652
Http://www.foryard.com
FAX:0086-574-87927917
E-mail:sales@foryard.com
NINGBO FORYARD OPTO
ELECTRONICS CO.,LTD.
Monocolor Flexible SMD LED Strip Specification
PartNO.:
3528UGC-66-12VF
FYSH-
How to use:
1. Please use this product with 12V DC.
2. Please complete the ESD-prevention before using.
3. The flexible LED strips should be neither bent into right-angles nor folded.
4. For this product, every three LEDs on the same strip can be cut off and use separately (namely,
every 100mm works as a group). Please refer to the ‘Outline’ for the details.
5. The calculating way that how many this product a power supply can upload is: the current(A) that
the power supply can offer/the current distributed to each single group*total group of
this product
E.g.1. For 3528UG-66-12VF, the total group for this product is n=22; powered by the power
supply with 12V 60A, the current distributed to each single group is 0.02A, so the calculating way
is 60/ (0.02*n) =60/ (0.02*22)135In the other word, 12V 60A power supply can upload
45PCS of 3528UW-33-12VF.
6. The strip quantity of each sting that directly connected to the power supply should not exceed 30
PCS; otherwise, the brightness of the strip at the end of the string will be dimmed because of
the voltage reduction. Although a loop circuit can avoid reduction happening, one string
should not connect too many strips.
7. The wire with gray line is anode, while the redgreenblue yellowwhite is cathode, If polarities
connected in a wrong way, the strip will not be lit, but will not be damaged either. What only
needs to do is changing the polarity connection.
8. When installing the strips in the plastic letters or characters, please try to use 3 or 4 branch
wires and when doing the connection try to make the strips in a letter or character or box form
a loop circuit or several loop circuits by using red and black wire to connect the strips at the
end of the strokes together according to their polarities.
9. This product is water-proof.
10.When installing the strip, the double-sided adhesive tape or carpenter’s glue is required to
make the clip slot of the strip firmly stuck together. When using the double-sided adhesive tape,
proper glass glue must be spread to avoid the strip falling off after long-time exposed in the
sunlight.
11.The strip quantity of each sting that directly connected to the power supply should not exceed
30pcs; otherwise, the brightness of the strip at the end of the string will be dimmed because
of the voltage reduction. Although a loop circuit can avoid reduction happening, one string
should not connect too many strips.
12.No push, squeeze or press on the components of the strip for fear damaging the components to
affect the lighting effects.
