EZ801905050MOD

型号：

EZ801905050MOD

描述：

eZ80190模块是一个紧凑的，高性能的以太网模块[ eZ80190 Module is a compact, high-performance Ethernet module ]

品牌：

ZILOG[ ZILOG, INC. ]

页数：

36 页

PDF大小：

429 K

下载PDF手册

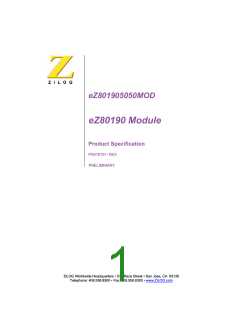

eZ801905050MOD
eZ80190 Module
Product Specification
PS019101-1003
PRELIMINARY
ZiLOG Worldwide Headquarters • 532 Race Street • San Jose, CA 95126
Telephone: 408.558.8500 • Fax: 408.558.8300 • www.ZiLOG.com
This publication is subject to replacement by a later edition. To determine whether
a later edition exists, or to request copies of publications, contact:
ZiLOG Worldwide Headquarters
532 Race Street
San Jose, CA 95126
Telephone: 408.558.8500
Fax: 408.558.8300
www.ZiLOG.com
ZiLOG is a registered trademark of ZiLOG Inc. in the United States and in other countries. All other
products and/or service names mentioned herein may be trademarks of the companies with which
they are associated.
Document Disclaimer
©2003 by ZiLOG, Inc. All rights reserved. Information in this publication concerning the devices,
applications, or technology described is intended to suggest possible uses and may be superseded.
ZiLOG, INC. DOES NOT ASSUME LIABILITY FOR OR PROVIDE A REPRESENTATION OF
ACCURACY OF THE INFORMATION, DEVICES, OR TECHNOLOGY DESCRIBED IN THIS
DOCUMENT. ZiLOG ALSO DOES NOT ASSUME LIABILITY FOR INTELLECTUAL PROPERTY
INFRINGEMENT RELATED IN ANY MANNER TO USE OF INFORMATION, DEVICES, OR
TECHNOLOGY DESCRIBED HEREIN OR OTHERWISE. Except with the express written approval
ZiLOG, use of information, devices, or technology as critical components of life support systems is
not authorized. No licenses or other rights are conveyed, implicitly or otherwise, by this document
under any intellectual property rights.
PS019101-1003
P R E L I M I N A R Y
eZ801905050MOD
eZ80190 Module Product Specification
iii
Table of Contents
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
The eZ80190 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Module Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
eZ80190 Processor Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
I/O Connector (JP2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Peripheral Bus Connector (JP1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Onboard Component Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Logic-Level I/Os . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Onboard Battery Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ethernet Media Access Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ethernet LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ethernet Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
GPIO Pins for Enabling LAN Activity, Sleep, Interrupt . . . . . . . . . . . . . 13
EMAC Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
EMAC Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Wait States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Static RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Flash Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Real-Time Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Reset Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Serial Interface Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
ESD/EMI Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Document Number Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Change Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Customer Feedback Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
PS019101-1003
P R E L I M I N A R Y
Table of Contents
eZ801905050MOD
eZ80190 Module Product Specification
iv
List of Figures
Figure 1. eZ80190 Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . 3
Figure 2. eZ80190 Module Peripheral Bus Connector Pin Configuration—JP1 4
Figure 3. eZ80190 Module I/O Connector Pin Configuration—JP2 . . . . . . . . . 8
Figure 4. Physical Dimensions of the eZ80190 Module . . . . . . . . . . . . . . . . . 17
Figure 5. eZ80190 Module—Top Layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 6. eZ80190 Module—Bottom Layer . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 7. Power Supply Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 8. eZ80190 Module Schematic Diagram, #1 of 9—CPU . . . . . . . . . . . 23
Figure 9. eZ80190 Module Schematic Diagram, #2 of 9—36-Pin SRAM
Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 10. eZ80190 Module Schematic Diagram, #3 of 9—NOR Flash Device 25
Figure 11. eZ80190 Module Schematic Diagram, #4 of 9—Ethernet Module . 26
Figure 12. eZ80190 Module Schematic Diagram, #5 of 9—Ethernet Module
Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 13. eZ80190 Module Schematic Diagram, #6 of 9—Ethernet Module
Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 14. eZ80190 Module Schematic Diagram, #7 of 9—Headers . . . . . . . . 29
Figure 15. eZ80190 Module Schematic Diagram, #8 of 9—Power Supply . . . 30
PS019101-1003
P R E L I M I N A R Y
List of Figures
eZ801905050MOD
eZ80190 Module Product Specification
v
List of Tables
Table 1. eZ80190 Module Peripheral Bus Connector Pin Identification. . . . . . . . 5
Table 2. eZ80190 Module I/O Connector Pin Identification . . . . . . . . . . . . . . . . . 8
Table 3. Ethernet Connector Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 4. Chip Frequency to Wait State Cycle Time Calculation. . . . . . . . . . . . . 14
Table 5. Real-Time Clock Registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Table 6. Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
PS019101-1003
P R E L I M I N A R Y
List of Tables
eZ801905050MOD
eZ80190 Module Product Specification
1
The eZ80190 Module
The eZ80190 Module is a compact, high-performance Ethernet module specially
designed for the rapid development and deployment of embedded systems
requiring control and Internet/Intranet connectivity. It features the low-cost
eZ80190 microprocessor powered by ZiLOG’s latest power-efficient, high-speed
®
eZ80 CPU.
The eZ80190 microprocessor is a high-speed single-cycle instruction-fetch micro-
processor, which can operate with a clock speed of 50MHz. It can operate in Z80-
compatible addressing mode (64KB) or full 24-bit addressing mode (16MB).
The rich peripheral set of the eZ80190 makes it suitable for a variety of applica-
tions, including industrial control, communication, security, automation, point-of-
sale terminals, and embedded networking applications.
Module Features
•
eZ80190 microprocessor operating at 50MHz
•
•
•
•
•
•
Ethernet Media Access Controller+ PHY with RJ45 connector
512KB zero-wait-state onboard SRAM
1MB onboard NOR Flash ROM (90–100ns)
Real-Time Clock with 32.768kHz Crystal with battery backup
I/O connector provides 32 general-purpose 5V-tolerant I/O pinouts
Onboard peripheral bus connector provides I/O bus for external peripheral con-
nections (IRQ, CS, 24 address, 8 data)
•
•
•
Small footprint 78.7mm x 63.5mm; height is 24mm
Module operates from external 3.3V power supply
Standard operating temperature range: 0ºC to +70ºC
eZ80190 Processor Features
®
•
•
•
•
Single-cycle instruction fetch, high-performance, pipelined eZ80 CPU core
Low power features including SLEEP mode and HALT mode
Two UARTs with independent baud rate generators
Two SPI interfaces with independent clock rate generators
PS019101-1003
P R E L I M I N A R Y
The eZ80190 Module
eZ801905050MOD
eZ80190 Module Product Specification
2
2
•
•
•
•
Two I C interfaces with independent clock rate generators
Fast multiply accumulate unit (MACC)
DMA Controller for fast memory-to-memory transfers
Glueless external memory and I/O interface featuring 4 chip selects with individual
wait state generators
•
Fixed-priority vectored interrupts (both internal and external) and interrupt control-
ler
•
•
•
•
•
•
•
Six 16-bit Counter/Timers with prescalers and direct input/output drive
Watch-Dog Timer
32 bits of general-purpose I/O
2-wire ZDI debug interface
100-pin LQFP package
3.3V 0.3V supply voltage with 5V tolerant inputs
Standard operating temperature range: 0ºC to +70ºC
Note:
All signals with an overline are active Low. For example, B/W, for which
WORD is active Low, and B/W, for which BYTE is active Low.
PS019101-1003
P R E L I M I N A R Y
eZ80190 Processor Features
eZ801905050MOD
eZ80190 Module Product Specification
3
Block Diagram
Figure 1 illustrates a block diagram of the eZ80190 microprocessor.
Power-On
Reset
50MHz
Oscillator
GPIO
UART
SPI
PD
eZ80 CPU
I2C
6 x 16-Bit
Timer
GPIO
UART
SPI
PC
PB
ZDI
ZDI
I2C
Watch-Dog
Timer
GPIO
GPIO
MACC
DMA
PA
I2C
Bus Controller
8-Bit Data
24-Bit Address
Gold
Cap
RTC
EMAC
1 MB
Flash/ROM
LEDs
RJ45
32 kHz XTAL
512 KB SRAM
Figure 1. eZ80190 Functional Block Diagram
PS019101-1003
P R E L I M I N A R Y
eZ80190 Processor Features
eZ801905050MOD
eZ80190 Module Product Specification
4
Pin Description
I/O Connector (JP2)
Figure 2 illustrates the pin layout of the 60-pin Peripheral Bus Connector (JP1) of
®
the eZ80190 Module. The eZ80 Development Platform, however, features a 50-
pin connector. The eZ80190 Module is designed to interface pin 60 of its JP1 con-
®
nector to pin 50 of the eZ80 Development Platform’s JP1 connector so that pins
®
1–10 of the eZ80190 Module overlap the edge of the eZ80 Development Plat-
form. Table 1 identifies the pins and their functions.
Figure 2. eZ80190 Module
Peripheral Bus Connector Pin Configuration—JP1
PS019101-1003
P R E L I M I N A R Y
Pin Description
eZ801905050MOD
eZ80190 Module Product Specification
5
Table 1. eZ80190 Module Peripheral Bus Connector Pin Identification*
Pull
Pin # Symbol
Up/Down* Signal Direction Comments
1
2
3
4
5
Reserved
Reserved
Reserved
Reserved
TRSTN
Input
Input
Reset for On-Chip Instrumentation (OCI);
not used with the eZ80190 Module.
6
7
Reserved
F91_WE
PU 10KΩ
A Low enables a Write to on-chip Flash
memory. If this pin is unconnected, on-chip
Flash memory is write-protected; not used
with the eZ80190 Module.
8
Reserved
GND
9
V
/Ground (0V).
SS
10
11
12
13
14
15
16
17
18
19
20
21
22
V
3.3V supply input pin.
CC
A6
Bidirectional
Bidirectional
Bidirectional
Bidirectional
A0
A10
A3
GND
V
/Ground (0V).
SS
V
3.3V supply input pin.
CC
A8
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
A7
A13
A9
A15
A14
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80190 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS019101-1003
P R E L I M I N A R Y
I/O Connector (JP2)
eZ801905050MOD
eZ80190 Module Product Specification
6
Table 1. eZ80190 Module Peripheral Bus Connector Pin Identification* (Continued)
Pull
Pin # Symbol
Up/Down* Signal Direction Comments
23
24
25
26
27
28
29
30
31
32
33
34
35
36
A18
Bidirectional
Bidirectional
Bidirectional
A16
A19
GND
A2
V
/Ground (0V).
SS
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
A1
A11
A12
A4
A20
A5
A17
Reserved
DIS_Flash
PU 10KΩ
Input
A Low disables onboard Flash memory.
Flash is enabled if DIS_Flash is not
connected; CMOS Input 3.3V (5V tolerant).
37
38
39
40
41
42
43
44
45
A21
Bidirectional
V
3.3V supply input pin.
CC
A22
A23
CS0
CS1
CS2
D0
Bidirectional
Bidirectional
Output
Output
Output
PU 4k7Ω
PU 4k7Ω
Bidirectional
Bidirectional
D1
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80190 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS019101-1003
P R E L I M I N A R Y
I/O Connector (JP2)
eZ801905050MOD
eZ80190 Module Product Specification
7
Table 1. eZ80190 Module Peripheral Bus Connector Pin Identification* (Continued)
Pull
Pin # Symbol
Up/Down* Signal Direction Comments
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
D2
PU 4k7Ω
PU 4k7Ω
PU 4k7Ω
PU 4k7Ω
Bidirectional
Bidirectional
Bidirectional
Bidirectional
D3
D4
D5
GND
D7
V
V
/Ground (0V).
/Ground (0V).
SS
PU 4k7Ω
Bidirectional
Bidirectional
Bidirectional
Bidirectional
D6
MREQ
IORQ
GND
RD
SS
Bidirectional
Bidirectional
Output
WR
INSTRD
BUSACK
BUSREQ
Output
PU 2k2Ω
Input
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80190 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
Peripheral Bus Connector (JP1)
Figure 3 illustrates the pin layout of the 60-pin I/O Connector (JP2) of the eZ80190
®
Module. The eZ80 Development Platform, however, features a 50-pin connector.
The eZ80190 Module is designed to interface pin 60 of its JP2 connector to pin 50
®
of the eZ80 Development Platform’s JP2 connector so that pins 1–10 of the
®
eZ80190 Module overlap the edge of the eZ80 Development Platform
identifies the pins and their functions.
. Table 2
PS019101-1003
P R E L I M I N A R Y
Peripheral Bus Connector (JP1)
eZ801905050MOD
eZ80190 Module Product Specification
8
Figure 3. eZ80190 Module
I/O Connector Pin Configuration—JP2
Table 2. eZ80190 Module I/O Connector Pin Identification*
Pull
Signal
Pin # Symbol
Up/Down Direction
Comments
1
2
3
PA7
PA6
PA5
Bidirectional
Bidirectional
Bidirectional
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80190 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS019101-1003
P R E L I M I N A R Y
Peripheral Bus Connector (JP1)
eZ801905050MOD
eZ80190 Module Product Specification
9
Table 2. eZ80190 Module I/O Connector Pin Identification* (Continued)
Pull Signal
Pin # Symbol
Up/Down Direction
Comments
4
PA4
PA3
PA2
PA1
PA0
Bidirectional
5
Bidirectional
6
Bidirectional
7
Bidirectional
8
Bidirectional
9
V
3.3V supply input pin.
V /Ground (0V).
CC
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
GND
PB7
PB6
PB5
PB4
PB3
PB2
PB1
PB0
GND
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
SS
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
V
/Ground (0V).
SS
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80190 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS019101-1003
P R E L I M I N A R Y
Peripheral Bus Connector (JP1)
eZ801905050MOD
eZ80190 Module Product Specification
10
Table 2. eZ80190 Module I/O Connector Pin Identification* (Continued)
Pull Signal
Pin # Symbol
Up/Down Direction
Comments
28
29
30
31
32
33
34
35
36
37
PD7
PD6
GND
PD5
PD4
PD3
PD2
PD1
PD0
TDO
Bidirectional
Bidirectional
V
/Ground (0V).
SS
Bidirectional
PD 4k7
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Bidirectional
Output
ZDI Data Output pin; not used with the eZ80190
Module.
38
39
40
TDI
Input
ZDI Data Input pin.
GND
V
/Ground (0V).
SS
TRIGOUT
Output
Active High trigger event indicator; not used with the
eZ80190 Module.
41
42
TCK
TMS
PU 10KΩ Input
PU 10KΩ Input
ZDI Clock. High on reset enables ZDI mode; Low on
reset enables OCI debug.
JTAG Test Mode Select Input; not used with the
eZ80190 Module.
43
44
45
46
47
48
RTC_V
RTC supply from GoldCap (or external battery).
Synchronous CPU clock output.
DD
EZ80CLK
Output
2
2
I CSCL
PU 4k7
PU 4k7
Bidirectional
I C Bus Clock.
GND
V
/Ground (0V).
SS
2
2
I CSDA
Bidirectional
Power
I C Data Clock.
V /Ground (0V).
SS
GND
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80190 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS019101-1003
P R E L I M I N A R Y
Peripheral Bus Connector (JP1)
eZ801905050MOD
eZ80190 Module Product Specification
11
Table 2. eZ80190 Module I/O Connector Pin Identification* (Continued)
Pull Signal
Pin # Symbol
Up/Down Direction
Comments
49
FlashWE
PU 10KΩ Input
A Low enables a Write to external Flash memory
boot block area. If this pin is unconnected, the Flash
memory boot block area is write-protected.
50
51
52
GND
V
/Ground (0V).
SS
CS3
Output
Connected to the CS8900 EMAC.
DIS_IRDA
PU 10KΩ Input
A Low disables the onboard IRDA transceiver to use
PC0/PC1 UART pins externally; not used with the
eZ80190 Module.
53
54
RESET
WAIT
PU 2k2
PU 2k2
Reset Output from module or push-button reset.
Bidirectional
Input
Driving the WAIT pin Low forces the CPU to provide
additional clock cycles for an external peripheral or
external memory to complete its Read or Write oper-
ation; not used with the eZ80190 Module.
55
56
57
V
3.3V supply input pin.
CC
GND
V
/Ground (0V).
SS
HALT_SLP
Output, Active A Low on this pin indicates that the CPU enters
Low
either HALT or SLEEP mode because of execution
of either a HALT or SLP instruction.
58
NMI
PU 10KΩ Schmitt Trig- The NMI input is a higher priority input than the
ger Input,
Active Low
maskable interrupts. It is always recognized at the
end of an instruction, regardless of the state of the
interrupt enable control bits. This input includes a
Schmitt trigger to allow RC rise times. This external
NMI signal is combined with an internal NMI signal
generated from the WDT block before being con-
nected to the NMI input of the CPU.
59
60
V
3.3V supply input pin.
CC
Reserved
NC
Reserved—No Connection.
Notes: *External capacitive loads on RD, WR, IORQ, MREQ, D0–D7 and A0–A23 should be below 10pF to satisfy
timing requirements for the CPU.
All unused inputs should be pulled to either V
consumption and to reduce noise sensitivity.
or GND, depending on their inactive levels, to reduce power
DD
To prevent EMI, the EZ80CLK output can be deactivated via software in the eZ80190 Peripheral Power-Down
Register.
All inputs are CMOS level 3.3V (5V tolerant), except where otherwise noted.
PS019101-1003
P R E L I M I N A R Y
Peripheral Bus Connector (JP1)
eZ801905050MOD
eZ80190 Module Product Specification
12
Onboard Component Description
Logic-Level I/Os
The I/O connector features 32 general-purpose 3.3V CMOS I/O pins that can be
used as outputs or inputs interfacing to external logic. All I/Os are 5V tolerant.
2
Some of the General-Purpose I/O pins support dual mode functions (SPI, I C,
UARTs, and bit I/O with edge- or level-triggered interrupt functions on each pin).
For more information on eZ80190 dual modes, please refer to the eZ80190 Prod-
uct Specification (PS0066).
Onboard Battery Backup
An onboard 0.1F capacitor (GoldCap) is used to bridge power outages of 2–4
hours if the power supply to the module is disconnected. The capacitor is charged
to 3.1V during normal operation and is discharged through the on-chip Real Time
Clock. The VRTC pin is available on the I/O connector of the module to connect
external components to a power supply or to a larger GoldCap.
Do not connect a Lithium Battery to the GoldCap capacitor, because
onboard charging circuitry for the capacitor can destroy the lithium
battery.
Caution:
Ethernet Media Access Controller
The eZ80190 contains a CS8900A EMAC which is attached to the data/address
bus of the processor. This chip is connected to the processor’s CS3 Chip Select,
A0–A3, D0–D7, RD, WR, and PD4 pins for interrupt purposes. Connection of pins
PD6 and PD7 for LANACT (wake-up from sleep) and SLEEP is optional and resis-
tor-selectable onboard.
Ethernet LEDs
There are two green LEDs, a Link LED and a LAN LED, that are located adjacent
to each other on the eZ80190 Module. A steady LAN LED (top) indicates received
link pulses from the Ethernet. A flashing Link LED (bottom) indicates Traffic (RX or
TX) on the LAN.
PS019101-1003
P R E L I M I N A R Y
Onboard Component Description
eZ801905050MOD
eZ80190 Module Product Specification
13
An RJ45 loopback connector can be used to verify the correct operation of the
Receiver and the Transmitter. The green LED should be on if RX+ is connected
with TX+ and RX– is connected with TX–.
Ethernet Connector
The eZ80190 is equipped with an RJ45 connector that features integrated mag-
netics (transformer, common mode chokes). The remaining pins on the onboard
RJ45 connector are not connected.
Node assignments for the RJ45 Ethernet connector are shown in Table 3.
Table 3. Ethernet Connector Pin Assignments
Pin
1
Function
TX+
2
TX–
3
RX+
6
RX–
Node assignment, in contrast to hub assignment, means that a straight-through
cable (equivalent pin numbers on both sides of the cable are connected to each
other) is used to attach the board to an Ethernet hub or switch. To connect the
eZ80190 Module directly to another node (e.g., a personal computer), a crossover
cable must be used.
The EMAC can be additionally protected by placing a U9 ESD protection array on
the module. This array can be either of the LCDA15C-6 (Semtech) or ESDA25B1
(ST Microelectronics) devices.
GPIO Pins for Enabling LAN Activity, Sleep, Interrupt
GPIO input bit PD4 serves as an active High interrupt input for the EMAC’s
INTRQ0 output.
GPIO output bit PD7 can be used to place the EMAC into SLEEP mode. In
SLEEP mode, the CS8900 draws less current, because only the receiver is oper-
ating. A zero-Ohm resistor at position R14 on the eZ80190 is required for this
function. In this case, the PD6 pin is not available for GPIO on the I/O connector.
If LAN activity is detected, the LANACT signal is pulled Low. The LANACT is con-
nected to GPIO input PD6 and can be used in interrupt edge-detection mode to
wake up and reinitialize the Ethernet chip. A zero-Ohm resistor at position R15 on
PS019101-1003
P R E L I M I N A R Y
Ethernet Media Access Controller
eZ801905050MOD
eZ80190 Module Product Specification
14
the module is required for this function. In this case, the PD6 pin is not available
for GPIO on the I/O connector.
EMAC Ports
The I/O base address is user-selectable. The EMAC is connected as an 8-bit
device.
EMAC Access
For 50MHz operation, set CS3_CTL (I/O address 0xB3) to 0xF8 (7 wait states for
I/O). CS3 is used for selecting the Ethernet MAC. By pulling JP1 pin 25 (DIS_Eth)
Low, access to the Ethernet MAC can be disabled on a per-cycle basis.
Memory
The eZ80190 offers SRAM and Flash memories and the wait states that support
memory operations, as described in this section.
Wait States
To ensure that valid data is read from or written to slower memories, a number of
wait states must be inserted into the memory or I/O access operations by the pro-
cessor. The number of wait states that are required should be added by program-
ming the chip select control registers. To calculate the minimum number of wait
states required, refer to Table 4.
Table 4. Chip Frequency to Wait State Cycle Time Calculation
MHz
20
Cycle Time
50.0ns
24
41.7ns
40
25.0ns
50
20.0ns
Static RAM
The eZ80190 features 512KB of fast SRAM. Access speed is typically 12ns or
faster, allowing zero-wait-state operation at 50MHz. With the CPU at 50MHz,
PS019101-1003
P R E L I M I N A R Y
Memory
eZ801905050MOD
eZ80190 Module Product Specification
15
onboard SRAM can be accessed with zero wait states. The CS1_CTL register can
be set to 08h (no wait states).
Flash Memory
The Flash Boot Loader, application code, and user configuration data are held
permanently in NOR Flash memory. A typical application requires eight times
more ROM for code than RAM. As an example, for 128KB onboard SRAM, 1MB
of ROM is required. The eZ80190 allows NOR Flash memories between
4megabits (512KB) and 32 megabits (4MB) to be used. The chips are housed in
wide TSOP40 cases. Typical Flash ROM access time is 100ns.
For 50MHz CPU operation, set the Chip Select Control register CS0_CTL (I/O
address 0xAA) to 0xA8. This setting selects 5 wait states. CS0 is used for select-
ing Flash memory. By pulling JP1 pin 26 (DIS_Flash) Low, access to Flash mem-
ory can be disabled on a per-cycle basis.
Real-Time Clock
An onboard real-time-clock operates continually, even if the system power supply
is down. An onboard capacitor (GoldCap) or external accumulator/battery serves
as a standby power supply. The Real-Time-Clock M41T11 contains Binary Coded
Decimal (BCD) counting registers for Seconds, Minutes, Hours, Day, Month, and
Year; a Century bit and 56 bytes of backed-up RAM are also included. The fully
charged 0.1F GoldCap bridges power outages with a maximum of 4 hours. The
GoldCap, in contrast to a battery or an accumulator, offers the dual advantage of
no service (replacement) requirements and no effects upon memory.
2
2
The I C addresses of the RTC are 0xD0 for WRITE and 0xD1 for READ. The I C
sequence for writing to the RTC is:
Start → 0xD0 → RegNo → VALUE1 → … → VALUEn → Stop
and the sequence for reading from the RTC is:
Start → 0xD1 → RegNo → VALUE1 → … → VALUEn → Stop
2
where VALUE1…VALUEn… are sent by the RTC. The processor (I C Master)
requests another value by sending an ACK. The first register to be read is set by a
preceding WRITE sequence, without sending data values. Clock updates do not
occur while any of the seven clock registers are being read. See Figure 5.
PS019101-1003
P R E L I M I N A R Y
Real-Time Clock
eZ801905050MOD
eZ80190 Module Product Specification
16
Table 5. Real-Time Clock Registers
Data
Function/Range BCD
Format
Address
D7
ST
X
D6
D5
D4
D3
D2
D1
D0
0
1
2
3
4
5
6
7
10 Seconds
10 Minutes
Seconds
Seconds
Minutes
Hours
Day
00–59
00–59
Minutes
Hours
CEB*
X
CB
X
10 Hours
0–1/00–23
01–07
X
X
S
X
X
Day
X
X
10 Date
Date
Month
Years
Date
01-31
X
X
10 M.
Month
Year
01–12
10 Years
00–99
OUT
FT
Calibration
Control
Notes: *When CEB is set to 1, CB toggles from 0 to 1 or from 1 to 0 every 100 years, depending upon the initial vale
set. When CEB is set to 0, CB does not toggle.
Keys: S = Sign bit, FT = Frequency Test bit, ST = Stop bit, OUT = Output level, X = Don’t care, CEB = Century
Enable bit, CB = Century Bit.
For further details, please refer to the M41T11 data sheet from SGS-Thomson at
www.st.com.
Reset Generator
The onboard Reset Generator Chip performs reliable Power-On Reset. The chip
generates a reset pulse with a duration of 200ms if the power supply drops below
2.93V. This reset pulse ensures that the board always starts in a defined condi-
tion. The RESET pin on the I/O connector reflects the status of the RESET line. It
is a bidirectional pin for resetting external peripheral components or for resetting
the eZ80190 with a low-impedance output (e.g. a 100-Ohm pushbutton).
Serial Interface Ports
The processor contains two 16550-style UARTs with programmable baud rate
®
generators. When the eZ80190 Module is plugged in to the eZ80 Development
Platform, UART0 is connected to a console connector and UART1 is connected to
a modem connector. There are no RS232-level shifters on the eZ80190.
Do not connect an RS-232 interface without level shifters.
Note:
PS019101-1003
P R E L I M I N A R Y
Reset Generator
eZ801905050MOD
eZ80190 Module Product Specification
17
Physical Dimensions
The footprint of the eZ80190 Module PCB is 63.5mmx78.7mm. With an RJ-45
Ethernet connector, the overall height is 25mm. See Figure 4.
63.5 mm
Figure 4. Physical Dimensions of the eZ80190 Module
PS019101-1003
P R E L I M I N A R Y
Serial Interface Ports
eZ801905050MOD
eZ80190 Module Product Specification
18
Figure 5 illustrates the top layer silkscreen of the eZ80190 Module.
Figure 5. eZ80190 Module—Top Layer
PS019101-1003
P R E L I M I N A R Y
Serial Interface Ports
eZ801905050MOD
eZ80190 Module Product Specification
19
Figure 6 illustrates the bottom layer silkscreen of the eZ80190 Module.
Figure 6. eZ80190 Module—Bottom Layer
ESD/EMI Protection
Caution:
The eZ80190 is a component that is intended to be part of a system
design for end-user devices. Therefore, the user must exercise caution
to use ESD protection on the I/O pins.
The EMAC can be additionally protected by placing an ESD protection array on
the eZ80190 at position U9. Either use ESDA25B1 from ST Microelectronics or
LCDA15C-6 from Semtech. A mounting hole on the board can be used for
grounding the shield of the Ethernet RJ45 jack to prevent surge or ESD currents
from flowing through the digital circuitry.
The RJ45 Ethernet Connector on the eZ80190 contains a transformer and com-
mon mode chokes for EMI suppression.
CMOS I/Os are ESD-sensitive and must be handled with care.
Handling of the module should be performed in ESD-safe
environments (for example with a wrist-wrap attached). When
Caution:
PS019101-1003
P R E L I M I N A R Y
ESD/EMI Protection
eZ801905050MOD
eZ80190 Module Product Specification
20
developing applications, the user must provide for proper ESD
protection on external, user-accessible I/Os (e.g. suppressor arrays for
the I/Os).
The components are mounted on a multilayer PCB to provide a stable ground
plane for onboard components. The module features several GND pins next to
pins with higher switching frequency for short ground returns. If unused, the clock
output can be separated from the module header by removing a series resistor on
the module. Removing the series resistor further reduces electromagnetic emis-
sions.
Absolute Maximum Ratings
Stresses greater than those listed in Table 6 can cause permanent damage to the
device. These ratings are stress ratings only. Operation of the device at any con-
dition outside those indicated in the operational sections of these specifications is
not implied. Exposure to absolute maximum rating conditions for extended peri-
ods may affect device reliability. For improved reliability, unused inputs should be
tied to one of the supply voltages (VDD or VSS).
Table 6. Absolute Maximum Ratings
Parameter
Min
0
Max
+70
+85
90%
3.3
Units
ºC
Standard operating temperature
Storage temperature
–45
25%
—
ºC
Operating Humidity (RH @ 50ºC)
Operating Voltage ( 5%)
V
Power Supply
The eZ80™ Webserver-i E-NET Module requires a regulated external 3.3VDC/
0.5A power supply. You may use a Low Dropout Regulator (LDO) to get 3.3V from
5V or use the following switcher circuit to generate 3.3V from unregulated 10-28V
power supply.
Power connections follow these conventional descriptions:
Connection
Power
Circuit
VCC
Device
V
V
DD
SS
Ground
GND
PS019101-1003
P R E L I M I N A R Y
Power Supply
eZ801905050MOD
eZ80190 Module Product Specification
21
Switcher 10–28V → 3.3V
To Module
U1
LM2575S-ADJ
4
2
L1
10–28V
VDD
3.3V
FB
VOUT
1
V
VIN
O
IN
N
330uH/1A
R1
5k6
1%
/
G
N
D
O
F
F
C2
C1
100n
D1
1A/30V
C3
1000uF
470uF/6.3V
Low ESR
R2
3k3
3
5
1%
GND
GND
LDO 5V → 3.3V
U1
LM3940
4-6V
VDD
V
VI
VO
3.3V
CC
G
N
D
C3
470uF/6.3V
Low ESR
C1
100n
GND
GND
Figure 7. Power Supply Examples
PS019101-1003
P R E L I M I N A R Y
Power Supply
eZ801905050MOD
eZ80190 Module Product Specification
22
Document Number Description
The Document Control Number that appears in the footer of each page of this
document contains unique identifying attributes, as indicated in the following
table:
PS
Product Specification
Unique Document Number
Revision Number
0191
01
1003
Month and Year Published
Change Log
Rev
Date
Purpose
Original issue
By
01
October 2003
M. Staubermann
PS019101-1003
P R E L I M I N A R Y
Document Number Description
eZ801905050MOD
eZ80190 Module Product Specification
Schematic Diagrams
23
Figures 8 through 15 present the schematics of the eZ80190 Module.
X1
R13
ETHIRQ
-SLEEP
-ACTIVE
PD4
PD7
PD6
PA[0..7]
XIN
3
1
=
ETHIRQ
-SLEEP
-ACTIVE
OUT
OE
4k7
0603
50.000MHz, 3.3V
SG-710
PD[0..7]
0R
0603
R14
R15
PA[0..7]
PA[0..7]
0R
0603
CLK_OUT
don't
stuff
PC[0..7]
-WR
-RD
-MREQ
-WR
-RD
-CS0
-CS1
-CS2
-CS3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
75
-WR
-RD
MREQ
WR
RD
CS0
CS1
CS2
CS3
VDD
VSS
A0
A1
A2
A3
A4
A5
A6
A7
VDD
VSS
A8
TEST
PC7/RI1
PC6/DCD1
PC5/DSR1
PC4/DTR1
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
PB[0..7]
PB[0..7]
-CS[0..3]
PC[0..7]
PC[0..7]
-CS[0..3]
PC3/SS1/CTS1
PC2/SCK1/RTS1
PC1/SDA1/MOSI1/RxD1
PC0/SCL1/MISO1/TxD1
PD[0..7]
PD[0..7]
-CS0 --> FLASH
-CS1 --> RAM
-CS2 --> ext. IO
-CS3 --> ETH
U1
A0
A1
A2
A3
A4
A5
A6
A7
VSS
VDD
PB7
PB6
PB5
PB4
PB3
PB2
PB1
PB7
PB6
PB5
PB4
PB3
PB2
PB1
PB0
ZDA
ZCL
-RESET
-IOREQ
-INSTRD
-HALT
ZDA
ZDA
D[0..7]
ZCL
ZCL
eZ80190
D[0..7]
A[0..23]
A[0..23]
TQFP100
PB0
ZDA
ZCL
-BUSREQ
-BUSACK
-MREQ
A8
A9
A10
A11
A12
A13
-BUSREQ
-BUSACK
-MREQ
A9
PB[0..7]
A10
A11
A12
A13
RESET
IORQ
INSTRD
HALT
-RESET
-RESET
CLK_OUT
CLK_OUT
-IOREQ
-IOREQ
-INSTRD
-INSTRD
R4
-NMI
-HALT
-HALT
1k
0603
R30
R31
-NMI
-NMI
don't
stuff
0R
0603
0R
0603
A[0..23]
D[0..7]
IICSDA
IICSCL
PA7
IICSDA
IICSCL
0R
0603
R32
R33
place caps close
to pins 97, 8, 38, 48
C18
1nF
0603
C19
1nF
0603
C20
1nF
0603
PA6
0R
0603
Figure 8. eZ80190 Module Schematic Diagram, #1 of 9—CPU
PS019101-1003
PRELIMINARY
Schematic Diagrams
eZ801905050MOD
eZ80190 Module Product Specification
24
U2
A18
A0
A1
A2
A3
-CSRAM
D0
D1
A20
A16
A15
A14
A13
-RD
D7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
A0
A1
A2
A3
N.C.
A18
A17
A16
A15
OE
I/O7
I/O6
VSS
VDD
I/O5
I/O4
A14
A13
A12
A11
A10
N.C.
RN1
10
D[0..7]
D[0..7]
D7
D6
D5
D4
D3
D2
D1
D0
9
8
7
6
5
4
3
2
A[0..23]
A21/ A22/ A23
not used her e
A[0..23]
A4
CE
I/O0
I/O1
VDD
VSS
I/O2
I/O3
WE
A5
A6
A7
A8
A9
D6
-CS1
-CSRAM
1
=
-CS1
D2
D3
-WR
A12
A9
A6
A4
A17
D5
D4
A11
A8
A10
A7
A5
9 x 4k7
SIP10
-RD
-RD
-WR
-WR
A19
512kx8 fast SRAM
SOJ36.400
AS7C34096-10JC
V3.3
VDD
VSS
C1
100nF
0603
GND
Figure 9. eZ80190 Module Schematic Diagram, #2 of 9—36-Pin SRAM Device
PS019101-1003
PRELIMINARY
Schematic Diagrams
eZ801905050MOD
eZ80190 Module Product Specification
25
D[0..7]
A[0..23]
I nt el - Type
U3
U4
A0
A1
A2
A3
A4
A5
A6
A7
DFLASH0
DFLASH1
DFLASH2
DFLASH3
DFLASH4
DFLASH5
DFLASH6
DFLASH7
D0
D1
D2
D3
D4
D5
D6
D7
21
20
19
18
17
16
15
14
8
7
36
6
5
4
3
2
1
40
13
37
25
DQ0
26
2
5
6
3
4
7
8
11
14
17
18
21
22
A0
A1
A2
A3
A4
A5
A6
A7
1B1
1A1
1A2
1A3
1A4
1A5
2A1
2A2
2A3
2A4
2A5
DQ1
27
1B2
1B3
1B4
1B5
2B1
2B2
2B3
2B4
2B5
DQ2
28
9
DQ3
32
10
15
16
19
20
23
DQ4
33
DQ5
34
DQ6
35
DQ7
A8
A9
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
-CSFLASH
-RD
-WR
-RESFLASH
-WP
22
CE
C2
100nF
0603
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
24
1
13
OE
9
1OE
2OE
-CSFLASH
WE
RP
WP
10
12
74CBTLV3384
SO24.300
R5
VPP
11
VPP
0R 0603
A21
A20
29
N.C.
A20/ A21 used f or
16/ 32Mbi t - Fl ash
38
N.C.
Pi n37=N. C.
f or 4Mbi t -
Fl ashes
Flash 1Mx8 3.3V
TSOP40.20MM
MT28F008B3VG
D[0..7]
D[0..7]
A[0..23]
A22/ A23
A[0..23]
U5A
1
not used her e
U6A
-CS0
-RD
-CSFLASH
3
-RD
-DIS_FLASH
-FLASH_EN
1
2
2
-WR
-WR
-CS0
74LCX32
TSSOP14
R6
74LCX04
TSSOP14
V3.3
-CS0
10k
0603
-DIS_FLASH
-DIS_FLASH
VDD
VSS
R7
-RESET
-RESFLASH
=
10k
0603
-RESET
U6B
GND
-FLASHWE
-FLASHWE
-WP
3
4
-FLASHWE
Note: Must be pulled Low
externally for programming.
74LCX04
TSSOP14
Figure 10. eZ80190 Module Schematic Diagram, #3 of 9—NOR Flash Device
PS019101-1003
PRELIMINARY
Schematic Diagrams
eZ801905050MOD
eZ80190 Module Product Specification
26
R8
10k
0603
Dual-LED assembly,
right angle, grn/grn
R9
100
0603
R10
100
0603
LD1
green
-LANLED
-LINKLED
-LANLED
-LINKLED
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
SD9
SD8
LANLED
LINKLED/HC0
XTAL2
XTAL1
AVSS
upper LED
green
R11
4k7
0603
MEMW
MEMR
INTRQ2
INTRQ1
INTRQ0
IOCS16
MEMCS16
INTRQ3
SHBE
SA0
SA1
SA2
SA3
SA4
SA5
SA6
SA7
SA8
Y1
20.000 MHz
HC49
lower LED
5682F5;5
LED5682F
AVDD
AVSS
RES
ETHIRQ
R12
4k99/1%
U7
RXD-
RXD+
RXD-
0603
RXD+
AVDD
AVSS
TXD-
TXD+
AVSS
AVDD
DO-
DO+
CI-
ESD protection array
U8
CS8900A-CQ3
TQFP100
SA0
SA1
SA2
SA3
TXD-
TXD+
RD+
RD-
TD+
TD-
1
2
3
4
8
7
6
5
SA[0..3]
CI+
DI-
DI+
SA9
SA10
SA11
REFRESH
SA12
BSTATUS/HC1
SLEEP
TEST
-DIS_ETH
-SLEEP
i nt . Pul l - Up
LCDA15C-6
SO8.150
GND
GND
TXD-
TD-
CASE
8R2
0603
C3
560pF
0603
R1
J1
device addresses:
00300h bis 0030Fh
1
2
3
4
5
6
TXD+
TD+
CTD
C4
100nF
0603
8R2
0603
R2
-ETHRD
-ETHWR
-DIS_ETH
CRD
-ETHRD
-ETHWR
-ETHRD
-ETHWR
RXD-
RD-
8
R3
-DIS_ETH
100
0603
shi el d
HFJ11-1041(E)
HALOFASTJACK
RXD+
JP4
RD+
C5
100nF
0603
C6
SD[0..7]
SA[0..3]
ETHIRQ
SD[0..7]
TX+ <- > 1
TX- <- > 2
RX+ <- > 3
RX- <- > 6
100nF
0603
SD[0..7]
SA[0..3]
ETHIRQ
through-hole
solder pad
place near
FAST JACK
HEADER 1
SIP1
V3.3
plane or
big trace
CASE
do not
stuff
VDD
VSS
L1
-SLEEP
CASE
-SLEEP
ferrite
1210
-ACTIVE
-LANLED
=
-ACTIVE
GND
do not stuff
Figure 11. eZ80190 Module Schematic Diagram, #4 of 9—Ethernet Module
PS019101-1003
PRELIMINARY
Schematic Diagrams
eZ801905050MOD
eZ80190 Module Product Specification
27
U9
D[0..7]
D0
D1
D2
D3
D4
D5
D6
D7
SD0
SD1
SD2
SD3
SD4
SD5
SD6
SD7
SD[0..7]
SD[0..7]
3
4
5
6
7
8
9
10
22
21
20
19
18
17
16
15
D[0..7]
A0
A1
A2
A3
A4
A5
A6
A7
B0
B1
B2
B3
B4
B5
B6
B7
A[0..23]
SA[0..3]
SA[0..3]
A[0..23]
-RD
-RD
-ETHWR
-WR
-CSETH
13
14
11
OEAB
LEAB
CEAB
-WR
D[0..7]
SD[0..7]
-WR
-RD
2
1
23
OEBA
LEBA
CEBA
-CS3
-CSETH
=
-CS3
-CSETH
74LCX543
TSSOP24
-ETHRD
-ETHRD
CLK_OUT
CLK_OUT
-ETHWR
-ETHWR
U10
A0
A1
A2
A3
SA0
SA1
SA2
SA3
2
3
4
5
6
7
8
9
19
D1
D2
D3
D4
D5
D6
D7
D8
Q1
Q2
18
17
16
15
14
13
12
Q3
Q4
Q5
Q6
Q7
Q8
A[0..23]
SA[0..3]
CSETH_P
11
1
LE
OE
74LCX573
TSSOP20
U5B
-RD
4
5
-ETHRD
-ETHWR
6
8
-CSETH1D
U6C
74LCX32
TSSOP14
CSETH_P
5
6
don't
stuff
R16
0R
0603
U5C
74LCX04
TSSOP14
-WR
9
U11A
U11B
Q
-CSETH
-CSETH1D
CLK_OUT
-CSETH2D
2
3
5
6
12
D
9
8
10
D
Q
R17
0R
0603
CLK_OUT
74LCX32
TSSOP14
11
CLK
CLK
Q
Q
V3.3
74LCX74
TSSOP14
74LCX74
TSSOP14
VDD
VSS
V3.3
V3.3
GND
Figure 12. eZ80190 Module Schematic Diagram, #5 of 9—Ethernet Module Logic
PS019101-1003
PRELIMINARY
Schematic Diagrams
eZ801905050MOD
eZ80190 Module Product Specification
28
power supervisor
V3.3
C7
100nF
0603
R18
2k2
0603
U12
-RESET
-RESET
2
-RESET
RESET
open-drain
C8
10nF
0603
MAX6328UR29
SOT-23-L3
alternative:
Maxim MAX6802UR29D3
real-time clock
Gold Cap
C9
0,1F
R19
V3.3
100
0603
GOLDCAP_SD_V
D1
RTC_VDD
C10
100nF
0603
RTC_VDD
TMM BAT41
MINIMELF_AK
R20
VBAT
5
RTC_VDD
0R
0603
U13
1
IICSDA
ICISCL
SDA
SCL
R21
R22
6
OSCI
2
4k7
0603
4k7
0603
OSCO
Y2
7
FT/OUT
V3.3
4k7
0603
R23
IICSDA
ICISCL
M41T11M6
SO8.150
32.768kHz
XTAL3
IICSDA
VDD
ICISCL
VSS
I2C bus address:
{D0}H/{D1}H
C11
unplace
0603
GND
Figure 13. eZ80190 Module Schematic Diagram, #6 of 9—Ethernet Module Peripherals
PS019101-1003
PRELIMINARY
Schematic Diagrams
eZ801905050MOD
eZ80190 Module Product Specification
29
A[0..23]
D[0..7]
A[0..23]
D[0..7]
connector 1
connector 2
JP1
JP2
PA7
PA5
PA3
PA1
V3.3_EXT
PB7
PB5
PB3
PB1
GND_EXT
PC6
PC4
PC2
PC0
PD6
PD5
PD3
PD1
PA6
PA4
PA2
1
3
5
7
2
4
6
1
3
5
7
2
4
6
-CS[0..3]
-CS[0..3]
PA0
8
8
GND_EXT
A6
A10
GND_EXT
A8
A13
A15
A18
A19
A2
A11
A4
A5
-DIS_ETH
A21
V3.3_EXT
A0
A3
V3.3_EXT
A7
A9
A14
A16
GND_EXT
A1
A12
GND_EXT
9
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
9
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
IICSDA
IICSCL
PB6
PB4
PB2
PB0
PC7
PC5
PC3
PC1
PD7
IICSDA
IICSCL
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
R24
CLK_OUT
EZ80CLK
CLK_OUT
33 0603
-DIS_FLASH
-DIS_FLASH
place near eZ80
output (PHI)
-FLASHWE
RTC_VDD
PB[0..7]
GND_EXT
PD4
-FLASHWE
RTC_VDD
PB[0..7]
A20
A17
PD2
PD0
ZDA
-DIS_FLASH
V3.3_EXT
A23
-CS1
D0
D2
D4
GND_EXT
D6
-IOREQ
-RD
A22
GND_EXT
ZCL
RTC_VDD
IICSCL
IICSDA
-FLASHWE
-CS3
-RESET
V3.3_EXT
-HALT
PC[0..7]
-CS0
-CS2
D1
D3
D5
PC[0..7]
EZ80CLK
GND_EXT
GND_EXT
GND_EXT
PD[0..7]
R25
PD[0..7]
10k
0603
PA[0..7]
PA[0..7]
D7
-DIS_ETH
-MREQ
GND_EXT
-WR
-BUSACK
NOTUSED1
GND_EXT
-NMI
-DIS_ETH
-INSTRD
-BUSREQ
-RESET
V3.3_EXT
-RESET
NC
-RD
-WR
Header 30x2
Header 30x2
-RD
-WR
Pin 50 open,
to be keyed
peripheral bus
connector
I/O connector
-IOREQ
-MREQ
-INSTRD
-IOREQ
-MREQ
-INSTRD
R26
2k2
0603
-HALT
-HALT
-BUSREQ
-BUSACK
-BUSREQ
-BUSACK
R27
R28
R29
10k
0603
10k
0603
10k
0603
-NMI
-NMI
ZDA
ZCL
NOTUSED1
( * WAI T * )
ZDA
ZCL
V3.3
V3.3_EXT
GND_EXT
GND
Figure 14. eZ80190 Module Schematic Diagram, #7 of 9—Headers
PS019101-1003
PRELIMINARY
Schematic Diagrams
eZ801905050MOD
eZ80190 Module Product Specification
30
common power plane
V3.3
GND
VDD
no power supply on board
C12
C13
C14
1nF
C15
100nF
0603
C16
1nF
0603
C17
22uF
22uF
100nF
0603
SMT7343
SMT7343
0603
VSS
Input: VDD ( = V3.3) = 3.3V 5%
Power: Pmax = tbd
Ptyp = tbd
common ground plane
Current: lmax = tbd
ltyp = tbd
PCB1
eZ80190 ethernet module board
98Cxxxx-xxx
U6D
U5D
12
11
13
9
11
13
8
74LCX32
TSSOP14
74LCX04
TSSOP14
unused gates
U6E
10
74LCX04
TSSOP14
U6F
12
74LCX04
TSSOP14
Figure 15. eZ80190 Module Schematic Diagram, #8 of 9—Power Supply
PS019101-1003
PRELIMINARY
Schematic Diagrams
eZ801905050MOD
eZ80190 Module Product Specification
31
Customer Feedback Form
The eZ80190 Module Product Specification
If you experience any problems while operating this product, or if you note any inaccuracies
while reading this Product Specification, please copy and complete this form, then mail or fax it to
ZiLOG (see Return Information, below). We also welcome your suggestions!
Customer Information
Name
Country
Phone
Fax
Company
Address
City/State/Zip
Email
Product Information
Serial # or Board Fab #/Rev. #
Software Version
Document Number
Host Computer Description/Type
Return Information
ZiLOG
System Test/Customer Support
532 Race Street
San Jose, CA 95126
Phone: (408) 558-8500
Fax: (408) 558-8536
ZiLOG Customer Support
Problem Description or Suggestion
Provide a complete description of the problem or your suggestion. If you are reporting a specific
problem, include all steps leading up to the occurrence of the problem. Attach additional pages
as necessary.
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
PS019101-1003
P R E L I M I N A R Y
Customer Feedback Form
厂商 型号 描述 页数 下载

ZILOG

 		EZ80190 eZ80190模块是一个紧凑的，高性能的以太网模块[ eZ80190 Module is a compact, high-performance Ethernet module ] 36 页

IXYS

 		EZ80190AZ050EC [ Microcontroller, 8-Bit, Z80 CPU, 50MHz, CMOS, PQFP100, LQFP-100 ] 219 页

IXYS

 		EZ80190AZ050EG [ Microcontroller, 8-Bit, 50MHz, CMOS, PQFP100, LQFP-100 ] 219 页

IXYS

 		EZ80190AZ050SC [ Microcontroller, 8-Bit, Z80 CPU, 50MHz, CMOS, PQFP100, LQFP-100 ] 219 页

ZILOG

 		EZ80F91 eZ80Acclaim -TM闪存微控制器[ eZ80Acclaim-TM Flash Microcontrollers ] 396 页

ZILOG

 		EZ80F910200ZCO eZ80Acclaim -TM闪存微控制器[ eZ80Acclaim-TM Flash Microcontrollers ] 396 页

IXYS

 		EZ80F9105005MODG [ Microcontroller, CMOS ] 384 页

IXYS

 		EZ80F9105050MODG [ IC MICROCONTROLLER, Microcontroller ] 384 页

ZILOG

 		EZ80F915005MOD eZ80F91迷你Enet模块[ eZ80F91 Mini Enet Module ] 25 页

ZILOG

 		EZ80F915050MOD eZ80F91模块结构紧凑，高性能的以太网模块[ eZ80F91 Module compact, high-performance Ethernet module ] 34 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.196372s
