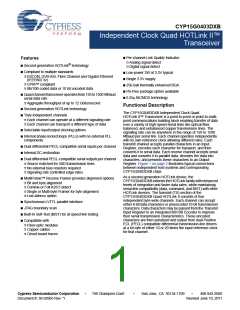

CYP15G0403DXB

Independent Clock Quad HOTLink II™

Transceiver

■ Per-channel Link Quality Indicator

❐ Analog signal detect

❐ Digital signal detect

Features

■ Second-generation HOTLink^®technology

■ Compliant to multiple standards

■ Low-power 3W at 3.3V typical

❐ ESCON, DVB-ASI, Fibre Channel and Gigabit Ethernet

(IEEE802.3z)

■ Single 3.3V supply

❐ CPRI™ compliant

❐ 8B/10B coded data or 10 bit uncoded data

■ 256-ball thermally enhanced BGA

■ Pb-Free package option available

■ 0.25 BiCMOS technology

■ Quadchanneltransceiveroperatesfrom195to1500 MBaud

serial data rate

❐ Aggregate throughput of up to 12 Gbits/second

Functional Description

■ Second-generation HOTLink technology

The CYP15G0403DXB Independent Clock Quad

■ Truly independent channels

HOTLink II™ Transceiver is a point-to-point or point-to-multi-

point communications building block enabling transfer of data

over a variety of high-speed serial links like optical fiber,

balanced, and unbalanced copper transmission lines. The

signaling rate can be anywhere in the range of 195 to 1500

MBaud per serial link. Each channel operates independently

with its own reference clock allowing different rates. Each

transmit channel accepts parallel characters in an Input

Register, encodes each character for transport, and then

converts it to serial data. Each receive channel accepts serial

data and converts it to parallel data, decodes the data into

characters, and presents these characters to an Output

Register. Figure 1 on page 2 illustrates typical connections

between independent host systems and corresponding

CYP15G0403DXB chips

❐ Each channel can operate at a different signaling rate

❐ Each channel can transport a different type of data

■ Selectable input/output clocking options

■ Internal phase-locked loops (PLLs) with no external PLL

components

■ Dual differential PECL-compatible serial inputs per channel

■ Internal DC-restoration

■ Dual differential PECL-compatible serial outputs per channel

❐ Source matched for 50 transmission lines

❐ No external bias resistors required

❐ Signaling-rate controlled edge-rates

As a second-generation HOTLink device, the

■ MultiFrame™ Receive Framer provides alignment options

❐ Bit and byte alignment

❐ Comma or Full K28.5 detect

❐ Single or Multi-byte Framer for byte alignment

❐ Low-latency option

CYP15G0403DXB extends the HOTLink family with enhanced

levels of integration and faster data rates, while maintaining

serial-link compatibility (data, command, and BIST) with other

HOTLink devices. The transmit (TX) section of the

CYP15G0403DXB Quad HOTLink II consists of four

independent byte-wide channels. Each channel can accept

either 8-bit data characters or preencoded 10-bit transmission

characters. Data characters may be passed from the Transmit

Input Register to an integrated 8B/10B Encoder to improve

their serial transmission characteristics. These encoded

characters are then serialized and output from dual Positive

ECL (PECL) compatible differential transmission-line drivers

at a bit-rate of either 10 or 20 times the input reference clock

for that channel.

■ Synchronous LVTTL parallel interface

■ JTAG boundary scan

■ Built-In Self-Test (BIST) for at-speed link testing

■ Compatible with

❐ Fiber-optic modules

❐ Copper cables

❐ Circuit board traces

.

Cypress Semiconductor Corporation

Document #: 38-02065 Rev. *I

•

198 Champion Court

•

San Jose, CA 95134-1709

•

408-943-2600

Revised June 10, 2011

CYP15G0403DXB

Figure 1. HOTLink II™ System Connections

10

Serial Links

10

Independent

CYP15G0403DXB

10

CYP15G0403DXB

10

Backplane or

Cabled

Connections

10

Serial Links

The receive (RX) section of the CYP15G0403DXB Quad

HOTLink II consists of four independent byte-wide channels.

Each channel accepts a serial bit-stream from one of two

PECL-compatible differential line receivers, and using a

completely integrated Clock and Data Recovery PLL, recovers

the timing information necessary for data reconstruction. Each

recovered bit-stream is deserialized and framed into characters,

8B/10B decoded, and checked for transmission errors.

Recovered decoded characters are then written to an internal

Elasticity Buffer, and presented to the destination host system.

tecture. In addition to clocking the transmit path with a local

reference clock, the receive interface may also be configured to

present data relative to a recovered clock or to a local reference

clock.

Each transmit and receive channel contains an independent

BIST pattern generator and checker. This BIST hardware allows

at-speed testing of the high-speed serial data paths in each

transmit and receive section, and across the interconnecting

links.

The CYP15G0403DXB is ideal for port applications where

different data rates and serial interface standards are necessary

for each channel. Some applications include multi-protocol

routers, aggregation equipment, and switches.

The integrated 8B/10B encoder/decoder may be bypassed for

systems that present externally encoded or scrambled data at

the parallel interface.

The parallel I/O interface may be configured for numerous forms

of clocking to provide the highest flexibility in system archi-

Document #: 38-02065 Rev. *I

Page 2 of 48

CYP15G0403DXB

Contents

CYP15G0403DXB Transceiver Logic Block Diagram.... 4

Transmit Path Block Diagram .........................................5

Receive Path Block Diagram ...........................................6

Device Configuration and Control Block Diagram ........7

Pin Configuration (Top View) ..........................................8

Pin Configuration (Bottom View) ....................................9

Pin Descriptions

AC Electrical Characteristics ........................................31

Transmitter LVTTL Switching Characteristics ...........31

Receiver LVTTL Switching Characteristics ...............31

REFCLKx Switching Characteristics .........................31

Bus Configuration Write Timing Characteristics .......32

JTAG Test Clock Characteristics .............................32

Device RESET Characteristics .................................32

Transmit Serial Outputs and TX PLL Characteristics 32

Receive Serial Inputs and CDR PLL Characteristics 33

Capacitance ....................................................................33

HOTLink II Transmitter Switching Waveforms ............34

Switching Waveforms for the HOTLink II Receiver .....35

X3.230 Codes and Notation Conventions ....................39

Notation Conventions ................................................39

8B/10B Transmission Code .......................................39

Transmission Order ...................................................39

Valid and Invalid Transmission Characters ...............39

Use of the Tables for Generating Transmission

Characters .................................................................40

Use of the Tables for Checking the Validity of Received

Transmission Characters ..........................................40

Ordering Information ......................................................46

Ordering Code Definition ...............................................46

Package Diagram ............................................................46

Document History Page .................................................47

Sales, Solutions, and Legal Information ......................48

Worldwide Sales and Design Support .......................48

Products ....................................................................48

PSoC Solutions .........................................................48

CYP15G0403DXB Quad HOTLink II Transceiver .........10

CYP15G0403DXB HOTLink II Operation .......................15

CYP15G0403DXB Transmit Data Path .....................15

Transmit Modes .........................................................16

Transmit BIST .................................................................16

Transmit PLL Clock Multiplier ....................................16

Serial Output Drivers ......................................................17

CYP15G0403DXB Receive Data Path ............................17

Serial Line Receivers ................................................17

Signal Detect/Link Fault ............................................17

Clock/Data Recovery .................................................18

Deserializer/Framer ...................................................18

10B/8B Decoder Block ..............................................19

Receive BIST Operation ............................................19

Receive Elasticity Buffer ............................................20

Receive Modes ..........................................................20

Power Control ............................................................20

Output Bus ......................................................................20

Device Configuration and Control Interface ..............21

JTAG Support .................................................................26

Maximum Ratings ...........................................................29

Power-up Requirements ............................................29

Operating Range .............................................................29

DC Electrical Characteristics ........................................29

AC Test Loads and Waveforms .....................................30

Document #: 38-02065 Rev. *I

Page 3 of 48

CYP15G0403DXB

CYP15G0403DXB Transceiver Logic Block Diagram

x10

x11

x10

x11

Phase

Align

Buffer

Phase

Align

Buffer

Phase

Align

Buffer

Elasticity

Buffer

Elasticity

Buffer

Elasticity

Buffer

Elasticity

Buffer

Align

Buffer

Decoder

8B/10B

Decoder

8B/10B

Decoder

8B/10B

Encoder

8B/10B

Decoder

8B/10B

Encoder

8B/10B

Encoder

8B/10B

Encoder

8B/10B

Framer

Serializer

Deserializer

Serializer

Deserializer

Serializer

Deserializer

RX

TX

Document #: 38-02065 Rev. *I

Page 4 of 48

CYP15G0403DXB

TXLB[A..D] are Internal Serial Loopback Signals

Transmit Path Block Diagram

= Internal Signal

REFCLKA+

Bit-Rate Clock

OEA[2..1]

REFCLKA–

TXRATEA

TrTarannssmmiittPPLLLL

CClolocckkMMuultilptliiperlieAr

Character-Rate Clock A

PABRSTA

SPDSELA

TXCLKOA

ENCBYPA

TXERRA

TXCLKA

OEA[2..1]

A

TXBIST

0

1

TXCKSELA

8

OUTA1+

OUTA1–

TXDA[7:0]

10

2

OUTA2+

OUTA2–

TXCTA[1:0]

TXLBA

REFCLKB+

REFCLKB–

Bit-Rate Clock

OEB[2..1]

Transmit PLL

Clock Multiplier B

TXRATEB

SPDSELB

TXCLKOB

ENCBYPB

Character-Rate Clock B

PABRSTB

TXERRB

TXCLKB

B

TXBIST

OEB[2..1]

0

1

TXCKSELB

OUTB1+

OUTB1–

8

10

TXDB[7:0]

OUTB2+

OUTB2–

2

TXCTB[1:0]

TXLBB

REFCLKC+

REFCLKC–

Bit-Rate Clock

OEC[2..1]

Transmit PLL

Clock Multiplier C

TXRATEC

SPDSELC

TXCLKOC

ENCBYPC

Character-Rate Clock C

PABRSTC

TXERRC

TXCLKC

OEC[2..1]

C

TXBIST

0

1

TXCKSELC

8

OUTC1+

OUTC1–

TXDC[7:0]

10

2

OUTC2+

OUTC2–

TXCTC[1:0]

TXLBC

REFCLKD+

REFCLKD–

Bit-Rate Clock

OED[2..1]

Transmit PLL

Clock Multiplier D

TXRATED

SPDSELD

TXCLKOD

TXERRD

ENCBYPD

OED[2..1]

Character-Rate Clock D

PABRSTD

TXBISTD

TXCLKD

0

1

TXCKSELD

OUTD1+

OUTD1–

10

8

10

TXDD[7:0]

OUTD2+

OUTD2–

2

TXCTD[1:0]

TXLBD

Document #: 38-02065 Rev. *I

Page 5 of 48

CYP15G0403DXB

TXLB[A..D] are Internal Serial Loopback Signals

Receive Path Block Diagram

= Internal Signal

RESET

TRST

JTAG

TMS

TCLK

TDI

SPDSELA

Boundary

Scan

RXPLLPDA

SDASELA[1:0]

Controller

TDO

LFIA

Receive

Signal

LPENA

INSELA

Monitor

INA1+

INA1–

8

RXDA[7:0]

INA2+

INA2–

Clock &

Data

Recovery

PLL

TXLBA

3

RXSTA[2:0]

ULCA

SPDSELB

RXPLLPDB

SDASELB[1:0]

RXCLKA+

RXCLKA–

Clock

Select

2

Receive

Signal

Monitor

LPENB

INSELB

LFIB

INB1+

INB1–

8

RXDB[7:0]

Clock &

Data

Recovery

PLL

INB2+

INB2–

3

TXLBB

RXSTB[2:0]

ULCB

SPDSELC

Clock

Select

RXCLKB+

RXCLKB–

RXPLLPDC

SDASELC[1:0]

2

LPENC

INSELC

Receive

Signal

Monitor

LFIC

INC1+

INC1–

8

RXDC[7:0]

INC2+

INC2–

Clock &

Data

Recovery

PLL

3

TXLBC

RXSTC[2:0]

ULCC

SPDSELD

RXPLLPDD

SDASELD[1:0]

Clock

Select

RXCLKC+

RXCLKC–

2

LPEND

INSELD

Receive

Signal

Monitor

LFID

IND1+

IND1–

8

RXDD[7:0]

IND2+

IND2–

Clock &

Data

Recovery

PLL

3

TXLBD

RXSTD[2:0]

ULCD

Clock

Select

RXCLKD+

RXCLKD–

LDTDEN

2

RFMODE[A..D][1:0]

RFEN[A..D]

FRAMCHAR[A..D]

DECMODE[A..D]

RXBIST[A..D]

RXCKSEL[A..D]

DECBYP[A..D]

RXRATE[A..D]

Document #: 38-02065 Rev. *I

Page 6 of 48

CYP15G0403DXB

= Internal Signal

Device Configuration and Control Block Diagram

RFMODE[A..D][1:0]

RFEN[A..D]

FRAMCHAR[A..D]

DECMODE[A..D]

RXBIST[A..D]

WREN

Device Configuration

and Control Interface

ADDR[3:0]

DATA[7:0]

RXCKSEL[A..D]

DECBYP[A..D]

RXRATE[A..D]

SDASEL[2..1][A..D][1:0]

RXPLLPD[A..D]

TXRATE[A..D]

TXCKSEL[A..D]

PABRST[A..D]

TXBIST[A..D]

OE[2..1][A..D]

ENCBYP[A..D]

GLEN[11..0]

FGLEN[2..0]

Document #: 38-02065 Rev. *I

Page 7 of 48

CYP15G0403DXB

Pin Configuration (Top View)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

IN

C1–

OUT

C1–

IN

C2–

OUT

C2–

IN

D1–

OUT

D1–

IN

D2–

OUT

D2–

IN

A1–

OUT

A1–

IN

A2–

OUT

A2–

IN

B1–

OUT

B1–

IN

B2–

OUT

B2–

V

GND

V

A

B

C

D

CC

IN

C1+

OUT

C1+

IN

C2+

OUT

C2+

IN

D1+

OUT

D1+

IN

D2+

OUT

D2+

IN

A1+

OUT

A1+

IN

A2+

OUT

A2+

IN

B1+

OUT

B1+

IN

B2+

OUT

B2+

V

GND

V

TDI

TMS INSELC INSELB

ULCD ULCC

DATA

[7]

DATA

[5]

DATA

[3]

DATA

[1]

NC

SPD

SELD

LDTD

EN

TRST LPEND TDO

TCLK RESET INSELD INSELA

ULCA

SPD

SELC

DATA

[6]

DATA

[4]

DATA

[2]

DATA

[0]

LPENB ULCB

LPENA LTEN1 SCAN TMEN3

EN2

V

CC

E

F

CC

RX

DC[6]

RX

DC[7]

TX

DC[0]

NC

RX

TX

RX

STB[1] CLKOB STB[0]

TX

DC[7]

WREN

TX

DC[4]

TX

DC[1]

SPD

SELB

LP

ENC

SPD

SELA

RX

DB[1]

G

GND GND GND GND

H

J

TX

RX

CTC[1] DC[5]

DC[2]

DC[3]

STB[2] DB[0]

DB[5]

DB[2]

RX

REF

TX

RX

DB[3]

RX

DB[4]

RX

DB[7]

LFIB

K

L

DC[2] CLKC– CTC[0] CLKC

RX

REF

LFIC

NC

TX

DC[6]

RX

TX

DC[3] CLKC+

DB[6] CLKB+ CLKB– DB[6]

RX

DC[4]

RX

DC[5]

TX

ERRC

REF REF TX TX

M

CLKB+ CLKB– ERRB CLKB

GND GND GND GND

N

P

RX

DC[1]

RX

TX

DB[5]

TX

DB[4]

TX

DB[3]

TX

DB[2]

DC[0] STC[0] STC[1]

RX

TX

RX

TX

DB[1]

TX

R

STC[2] CLKOC CLKC+ CLKC–

DB[0] CTB[1] DB[7]

V

CC

T

CC

TX

DD[0]

TX

DD[1]

TX

RX

DD[2]

RX

DD[1]

TX

CTA[1]

ADDR

[0]

REF

CLKD– DA[1]

TX

RX

TX

RX

V

GND

V

U

CC

DD[2] CTD[1]

DA[4] CTA[0]

DA[2] CTB[0] STA[2] STA[1]

TX

DD[3]

TX

RX

STD[2]

ADDR

[2]

REF

CLKD+ CLKOA

TX

DA[3]

TX

DA[7]

RX

DA[7]

RX

DA[3]

RX

V

W

Y

DD[4] CTD[0] DD[6]

DD[3] STD[0]

DA[0] STA[0]

TX

DD[5]

TX

DD[7]

LFID

RX

CLKD–

RX

ADDR ADDR

[3]

RX

TX

DA[2]

TX

DA[6]

LFIA

REF

CLKA+ DA[4]

RX

DA[1]

DD[4] STD[1]

[1]

CLKA+ ERRA

TX

DD[6]

TX

CLKD

RX

DD[5]

RX

DD[0]

TX

CLKOD

NC

TX

RX

TX

DA[0]

TX

DA[5]

TX

REF RX

RX

DA[5]

DD[7] CLKD+

CLKA CLKA–

ERRD CLKA– DA[6]

Document #: 38-02065 Rev. *I

Page 8 of 48

CYP15G0403DXB

Pin Configuration (Bottom View)

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

OUT

B2–

IN

B2–

OUT

B1–

IN

B1–

OUT

A2–

IN

A2–

OUT

A1–

IN

A1–

OUT

D2–

IN

D2–

OUT

D1–

IN

D1–

OUT

C2–

IN

C2–

OUT

C1–

IN

C1–

V

GND

V

A

B

C

CC

OUT

B2+

IN

B2+

OUT

B1+

IN

B1+

OUT

A2+

IN

A2+

OUT

A1+

IN

A1+

OUT

D2+

IN

D2+

OUT

D1+

IN

D1+

OUT

C2+

IN

2+

OUT

C1+

IN

C1+

V

GND

V

TDO

LP

END

TRST

LDTD

EN

SPD

SELD

NC

DATA

[1]

DATA

[3]

DATA

[5]

DATA

[7]

ULCC ULCD

IN

SELB

IN

SELC

TMS

TDI

TMEN3 SCAN LTEN1

EN2

LP

ENA

ULCB

LP

ENB

DATA

[0]

DATA

[2]

DATA

[4]

DATA

[6]

SPD

SELC

ULCA

IN

SELA

IN

SELD

RESET TCLK

V

GND

V

CC

D

CC

V

E

F

CC

RX

TX

RX

NC

TX

DC[0]

RX

DC[7]

Rx

DC[6]

STB[0] CLKOB STB[1]

RX

DB[1]

SPD

SELA

LP

ENC

SPD

SELB

TX

DC[1]

TX

DC[4]

WREN

TX

DC[7]

G

GND GND GND GND

H

J

RX

TX

DB[2]

DB[5]

DB[0] STB[2]

DC[3]

DC[2]

DC[5] CTC[1]

LFIB

RX

DB[7]

RX

DB[4]

RX

DB[3]

TX

REF

RX

K

CLKC CTC[0] CLKC– DC[2]

TX

RX

TX

DC[6]

LFIC

NC

REF

CLKC+ DC[3]

RX

L

DB[6] CLKB– CLKB+ DB[6]

TX TX REF REF

TX

ERRC

RX

DC[5]

RX

DC[4]

M

CLKB ERRB CLKB– CLKB+

GND GND GND GND

N

P

TX

DB[2]

TX

DB[3]

TX

DB[4]

TX

DB[5]

RX

DC[1]

STC[1] STC[0] DC[0]

TX

DB[1]

RX

TX

RX

R

DB[7] CTB[1] DB[0]

CLKC– CLKC+ CLKOC STC[2]

V

T

CC

RX

TX

RX

TX

REF

ADDR

[0]

TXC

TA[1]

RX

DD[1]

RX

DD[2]

TX

DD[0]

V

GND

V

CC

U

CC

STA[1] STA[2] CTB[0] DA[2]

CTA[0] DA[4]

DA[1] CLKD–

CTD[1] DD[2]

DD[1]

TX

RX

DA[3]

RX

DA[7]

TX

DA[7]

TX

DA[3]

TX

REF

ADDR

[2]

RX

STD[2]

RX

TX

DD[3]

V

GND

V

W

Y

CC

STA[0] DA[0]

CLKOA CLKD+

STD[0] DD[3]

DD[6] CTD[0] DD[4]

RX

DA[1]

RX

REF

LFIA

TX

DA[6]

TX

DA[2]

TX

RX

ADDR ADDR

[1]

RX

CLKD–

LFID

TX

DD[7]

TX

DD[5]

DA[4] CLKA+

ERRA CLKA+

[3]

STD[1] DD[4]

RX

DA[5]

RX REF

DA[6] CLKA– ERRD

TX

DA[5]

TX

DA[0]

RX

TX

NC

TX

CLKOD

RX

DD[0]

RX

DD[5]

RX

TX

CLKD

TX

DD[6]

CLKA– CLKA

CLKD+ DD[7]

Document #: 38-02065 Rev. *I

Page 9 of 48

CYP15G0403DXB

Pin Descriptions

CYP15G0403DXB Quad HOTLink II Transceiver

Name

I/O Characteristics Signal Description

Transmit Path Data and Status Signals

TXDA[7:0]

TXDB[7:0]

TXDC[7:0]

TXDD[7:0]

LVTTL Input,

synchronous,

sampled by the

associated

Transmit Data Inputs. TXDx[7:0] data inputs are captured on the rising edge of the

transmit interface clock. The transmit interface clock is selected by the TXCKSELx

latch via the device configuration interface, and passed to the encoder or Transmit

Shifter. When the Encoder is enabled, TXDx[7:0] specifies the specific data or

command character sent.

TXCLKx or

REFCLKx^[1]

TXCTA[1:0]

TXCTB[1:0]

TXCTC[1:0]

TXCTD[1:0]

LVTTL Input,

synchronous,

sampled by the

associated

Transmit Control. TXCTx[1:0] inputs are captured on the rising edge of the transmit

interface clock. The transmit interface clock is selected by the TXCKSELx latch via

the device configuration interface, and passed to the Encoder or Transmit Shifter.

The TXCTA[1:0] inputs identify how the associated TXDx[7:0] characters are inter-

preted. When the Encoder is bypassed, these inputs are interpreted as data bits.

When the Encoder is enabled, these inputs determine if the TXDx[7:0] character is

encoded as Data, a Special Character code, or replaced with other Special

Character codes. See Table 3 on page 16 for details.

TXCLKx or

REFCLKx ^[1]

TXERRA

TXERRB

TXERRC

TXERRD

LVTTL Output,

synchronous to

Transmit Path Error. TXERRx is asserted HIGH to indicate detection of a transmit

Phase-Align Buffer underflow or overflow. If an underflow or overflow condition is

detected, TXERRx, for the channel in error, is asserted HIGH and remains asserted

until either a Word Sync Sequence is transmitted on that channel, or the transmit

Phase-Align Buffer is re-centered with the PABRSTx latch via the device configu-

ration interface. When TXBISTx = 0, the BIST progress is presented on the

associated TXERRx output. The TXERRx signal pulses HIGH for one

REFCLKx ^[2]

,

synchronous to

RXCLKx when

selected as

REFCLKx,

asynchronous to

transmit channel

enable / disable,

transmit-character clock period to indicate a pass through the BIST sequence once

every 511 or 527 (depending on RXCKSELx) character times. If RXCKSELx = 1, a

one character pulse occurs every 527 character times. If RXCKSELx = 0, a one

asynchronous to loss character pulse occurs every 511 character times.

or return of

TXERRx is also asserted HIGH, when any of the following conditions is true:

REFCLKx±

■ The TXPLL for the associated channel is powered down. This occurs when OE2x

and OE1x for a given channel are both disabled by setting OE2x = 0 and OE1x = 0.

■ The absence of the REFCLKx± signal

Transmit Path Clock Signals

REFCLKA±

REFCLKB±

REFCLKC±

REFCLKD±

Differential LVPECL Reference Clock. REFCLKx± clock inputs are used as the timing references for the

or single-ended

transmit and receive PLLs. These input clocks may also be selected to clock the

transmit and receive parallel interfaces. When driven by a single-ended LVCMOS

or LVTTL clock source, connect the clock source to either the true or complement

REFCLKx input, and leave the alternate REFCLKx input open (floating). When

driven by an LVPECL clock source, the clock must be a differential clock, using both

inputs.

LVTTL input clock

TXCLKA

TXCLKB

TXCLKC

TXCLKD

LVTTL Clock Input,

internal pull-down

Transmit Path Input Clock. When configuration latch TXCKSELx = 0, the

associated TXCLKx input is selected as the character-rate input clock for the

TXDx[7:0] and TXCTx[1:0] inputs. In this mode, the TXCLKx input must be

frequency-coherent to its associated TXCLKOx output clock, but may be offset in

phase by any amount. Once initialized, TXCLKx is allowed to drift in phase as much

as ±180 degrees. If the input phase of TXCLKx drifts beyond the handling capacity

of the Phase Align Buffer, TXERRx is asserted to indicate the loss of data, and

remains asserted until the Phase Align Buffer is initialized. The phase of the TXCLKx

input clock relative to its associated REFCLKx± is initialized when the configuration

latch PABRSTx is written as 0. When the associated TXERRx is deasserted, the

Phase Align Buffer is initialized and input characters are correctly captured.

Document #: 38-02065 Rev. *I

Page 10 of 48

CYP15G0403DXB

Pin Descriptions (continued)

CYP15G0403DXB Quad HOTLink II Transceiver

Name

I/O Characteristics Signal Description

Notes

1. When REFCLKx± is configured for half-rate operation, these inputs are sampled relative to both the rising and falling edges of the associated REFCLKx±.

2. When REFCLKx± is configured for half-rate operation, these outputs are presented relative to both the rising and falling edges of the associated REFCLKx±.

TXCLKOA

TXCLKOB

TXCLKOC

TXCLKOD

LVTTL Output

Transmit Clock Output. TXCLKOx output clock is synthesized by each channel’s

transmit PLL and operates synchronous to the internal transmit character clock.

TXCLKOx operates at either the same frequency as REFCLKx± (TXRATEx = 0), or

at twice the frequency of REFCLKx± (TXRATEx = 1). The transmit clock outputs

have no fixed phase relationship to REFCLKx±.

Receive Path Data and Status Signals

RXDA[7:0]

RXDB[7:0]

RXDC[7:0]

RXDD[7:0]

LVTTL Output,

synchronous to the

selected RXCLK±

Parallel Data Output. RXDx[7:0] parallel data outputs change relative to the receive

interface clock. The receive interface clock is selected by the RXCKSELx latch. If

RXCLKx± is a full-rate clock, the RXCLKx± clock outputs are complementary clocks

output or REFCLKx± operating at the character rate. The RXDx[7:0] outputs for the associated receive

input

channels follow rising edge of RXCLKx+ or falling edge of RXCLKx–. If RXCLKx±

is a half-rate clock, the RXCLKx± clock outputs are complementary clocks operating

at half the character rate. The RXDx[7:0] outputs for the associated receive

channels follow both the falling and rising edges of the associated RXCLKx± clock

outputs.

RXSTA[2:0]

RXSTB[2:0]

RXSTC[2:0]

RXSTD[2:0]

LVTTL Output,

synchronous to the

selected RXCLK±

Parallel Status Output. RXSTA[2:0] status outputs change relative to the receive

interface clock. The receive interface clock is selected by the RXCKSELx latch. If

RXCLKx± is a full-rate clock, the RXCLKx± clock outputs are complementary clocks

output or REFCLKx± operating at the character rate. The RXSTAx[2:0] outputs for the associated receive

input

channels follow rising edge of RXCLKx+ or falling edge of RXCLKx–. If RXCLKx±

is a half-rate clock, the RXCLKx± clock outputs are complementary clocks operating

at half the character rate. The RXSTAx[2:0] outputs for the associated receive

channels follow both the falling and rising edges of the associated RXCLKx± clock

outputs. When the decoder is bypassed, RXSTx[1:0] become the two low-order bits

of the 10-bit received character. RXSTx[2] = HIGH indicates the presence of a

Comma character in the Output Register. When the decoder is enabled, RXSTx[2:0]

provide status of the received signal. See Table 11 on page 27 for a list of received

character status.

Receive Path Clock Signals

RXCLKA±

RXCLKB±

RXCLKC±

RXCLKD±

LVTTL Output Clock Receive Clock Output. RXCLKx± is the receive interface clock used to control

timing of the RXDx[7:0] and RXSTA[2:0] parallel outputs. The source of the

RXCLKx± outputs is selected by the RXCKSELx latch via the device configuration

interface. These true and complement clocks are used to control timing of data

output transfers. These clocks are output continuously at either the dual-character

rate (1/20^ththe serial bit-rate) or character rate (1/10^ththe serial bit-rate) of the data

being received, as selected by RXRATEx. When configured such that the output

data path is clocked by the REFCLKx± instead of a recovered clock, the RXCLKx±

output drivers present a buffered or divided form (depending on RXRATEx) of the

associated REFCLKx± that are delayed in phase to align with the data. This phase

difference allows the user to select the optimal clock (REFCLKx± or RXCLK±) for

setup/hold timing for their specific system.

When REFCLKx± is a full-rate clock, the RXCLKx± rate depends on the value of

RXRATEx.

When REFCLKx± is a half-rate clock and RXCKSELx = 0, the RXCLKx± rate

depends on the value of RXRATEx.

When REFCLKx± is a half-rate clock and RXCKSELx=1, the RXCLKx± rate does

not depend on the value of RXRATEx and operates at the same rate as REFCLKx±.

Document #: 38-02065 Rev. *I

Page 11 of 48

CYP15G0403DXB

Pin Descriptions (continued)

CYP15G0403DXB Quad HOTLink II Transceiver

Name

I/O Characteristics Signal Description

Device Control Signals

RESET

LVTTL Input,

asynchronous,

internal pull-up

Asynchronous Device Reset. RESET initializes all state machines, counters, and

configuration latches in the device to a known state. RESET must be asserted LOW

for a minimum pulse width. When the reset is removed, all state machines, counters

and configuration latches are at an initial state. As per the JTAG specifications the

device RESET cannot reset the JTAG controller. Therefore, the JTAG controller has

to be reset separately. Refer to “JTAG Support” on page 26 for the methods to reset

the JTAG state machine. See Table 9 on page 22 for the initialize values of the

device configuration latches.

LDTDEN

LVTTL Input,

internal pull-up

Level Detect Transition Density Enable. When LDTDEN is HIGH, the Signal Level

Detector, Range Controller, and Transition Density Detector are all enabled to

determine if the RXPLL tracks REFCLKx± or the selected input serial data stream.

If the Signal Level Detector, Range Controller, or Transition Density Detector are out

of their respective limits while LDTDEN is HIGH, the RXPLL locks to REFCLK± until

such a time they become valid. The (SDASEL[A..D][1:0]) are used to configure the

trip level of the Signal Level Detector. The Transition Density Detector limit is one

transition in every 60 consecutive bits. When LDTDEN is LOW, only the Range

Controller is used to determine if the RXPLL tracks REFCLKx± or the selected input

serial data stream. For the cases when RXCKSELx = 0 (recovered clock), it is

recommended to set LDTDEN = HIGH.

ULCA

ULCB

ULCC

ULCD

LVTTL Input,

internal pull-up

Use Local Clock. When ULCx is LOW, the RXPLL is forced to lock to REFCLKx±

instead of the received serial data stream. While ULCx is LOW, the LFIx for the

associated channel is LOW indicating a link fault.

When ULCx is HIGH, the RXPLL performs Clock and Data Recovery functions on

the input data streams. This function is used in applications in which a stable

RXCLKx± is needed. In cases when there is an absence of valid data transitions for

a long period of time, or the high-gain differential serial inputs (INx±) are left floating,

there may be brief frequency excursions of the RXCLKx± outputs from REFCLKx±.

SPDSELA

SPDSELB

SPDSELC

SPDSELD

3-Level Select^[3]

static control input

Serial Rate Select. The SPDSELx inputs specify the operating signaling-rate range

of each channel’s transmit and receive PLL.

LOW = 195 – 400 MBaud

MID = 400 – 800 MBaud

HIGH = 800 – 1500 MBaud

INSELA

INSELB

INSELC

INSELD

LVTTL Input,

asynchronous

Receive Input Selector. The INSELx input determines which external serial bit

stream is passed to the receiver’s Clock and Data Recovery circuit. When INSELx

is HIGH, the Primary Differential Serial Data Input, INx1±, is selected for the

associated receive channel. When INSELx is LOW, the Secondary Differential

Serial Data Input, INx2±, is selected for the associated receive channel.

LPENA

LPENB

LPENC

LPEND

LVTTL Input,

asynchronous,

internal pull-down

Loop-Back-Enable. The LPENx input enables the internal serial loop-back for the

associated channel. When LPENx is HIGH, the transmit serial data from the

associated channel is internally routed to the associated receive Clock and Data

Recovery (CDR) circuit. All enabled serial drivers on the channel are forced to differ-

ential logic-1, and the serial data inputs are ignored. When LPENx is LOW, the

internal serial loop-back function is disabled.

Note

3. 3-Level Select inputs are used for static configuration. These are ternary inputs that make use of logic levels of LOW, MID, and HIGH. The LOW level is usually

implemented by direct connection to V (ground). The HIGH level is usually implemented by direct connection to V (power). The MID level is usually

SS

CC

implemented by not connecting the input (left floating), which allows it to self bias to the proper level.

Document #: 38-02065 Rev. *I

Page 12 of 48

CYP15G0403DXB

Pin Descriptions (continued)

CYP15G0403DXB Quad HOTLink II Transceiver

Name

I/O Characteristics Signal Description

LFIA

LFIB

LFIC

LFID

LVTTL Output,

asynchronous

Link Fault Indication Output. LFIx is an output status indicator signal. LFIx is the

logical OR of six internal conditions. LFIx is asserted LOW when any of the following

conditions is true:

■ Received serial data rate outside expected range

■ Analog amplitude below expected levels

■ Transition density lower than expected

■ Receive channel disabled

■ ULCx is LOW

■ Absence of REFCLKx±.

Device Configuration and Control Bus Signals

WREN

LVTTL input,

asynchronous,

internal pull-up

Control Write Enable. The WREN input writes the values of the DATA[7:0] bus into

the latch specified by the address location on the ADDR[3:0] bus.^[4]

ADDR[3:0]

LVTTL input

asynchronous,

internal pull-up

Control Addressing Bus. The ADDR[3:0] bus is the input address bus used to

configure the device. The WREN input writes the values of the DATA[7:0] bus into

the latch specified by the address location on the ADDR[3:0] bus.^[4]Table 9 on page

22 lists the configuration latches within the device, and the initialization value of the

latches upon the assertion of RESET. Table 10 on page 26 shows how the latches

are mapped in the device.

DATA[7:0]

LVTTL input

asynchronous,

internal pull-up

Control Data Bus. The DATA[7:0] bus is the input data bus used to configure the

device. The WREN input writes the values of the DATA[7:0] bus into the latch

specified by address location on the ADDR[3:0] bus.^{[4 ]}Table 9 lists the configuration

latches within the device, and the initialization value of the latches upon the

assertion of RESET. Table 10 shows how the latches are mapped in the device.

Internal Device Configuration Latches

RFMODE[A..D][1:0] Internal Latch^[5]

FRAMCHAR[A..D] Internal Latch^[5]

Reframe Mode Select.

Framing Character Select.

Receiver Decoder Mode Select.

Receiver Decoder Bypass.

Receive Clock Select.

DECMODE[A..D]

DECBYP[A..D]

RXCKSEL[A..D]

RXRATE[A..D]

Internal Latch^[5]

Receive Clock Rate Select.

Signal Detect Amplitude Select.

Transmit Encoder Bypassed.

Transmit Clock Select.

SDASEL[A..D][1:0] Internal Latch^[5]

ENCBYP[A..D]

TXCKSEL[A..D]

TXRATE[A..D]

RFEN[A..D]

Internal Latch^[5]

Transmit PLL Clock Rate Select.

Reframe Enable.

RXPLLPD[A..D]

RXBIST[A..D]

TXBIST[A..D]

OE2[A..D]

Receive Channel Power Control.

Receive Bist Disabled.

Transmit Bist Disabled.

Differential Serial Output Driver 2 Enable.

Differential Serial Output Driver 1 Enable.

OE1[A..D]

Notes

4. See “Device Configuration and Control Interface” on page 21 for detailed information on the operation of the Configuration Interface.

5. See “Device Configuration and Control Interface” on page 21 for detailed information on the internal latches.

Document #: 38-02065 Rev. *I

Page 13 of 48

CYP15G0403DXB

Pin Descriptions (continued)

CYP15G0403DXB Quad HOTLink II Transceiver

Name

I/O Characteristics Signal Description

PABRST[A..D]

GLEN[11..0]

FGLEN[2..0]

Factory Test Modes

LTEN1

Internal Latch^[5]

Transmit Clock Phase Alignment Buffer Reset.

Global Latch Enable.

Force Global Latch Enable.

LVTTL input,

Factory Test 1. LTEN1 input is for factory testing only. This input may be left as a

NO CONNECT, or GND only.

internal pull-down

SCANEN2

TMEN3

LVTTL input,

internal pull-down

Factory Test 2. SCANEN2 input is for factory testing only. This input may be left as

a NO CONNECT, or GND only.

LVTTL input,

internal pull-down

Factory Test 3. TMEN3 input is for factory testing only. This input may be left as a

NO CONNECT, or GND only.

Analog I/O

OUTA1±

OUTB1±

OUTC1±

OUTD1±

CML Differential

Output

Primary Differential Serial Data Output. The OUTx1± PECL-compatible CML

outputs (+3.3V referenced) are capable of driving terminated transmission lines or

standard fiber-optic transmitter modules, and must be AC-coupled for

PECL-compatible connections.

OUTA2±

OUTB2±

OUTC2±

OUTD2±

CML Differential

Output

Secondary Differential Serial Data Output. The OUTx2± PECL-compatible CML

outputs (+3.3V referenced) are capable of driving terminated transmission lines or

standard fiber-optic transmitter modules, and must be AC-coupled for PECL-compatible

connections.

INA1±

INB1±

INC1±

IND1±

Differential Input

Primary Differential Serial Data Input. The INx1± input accepts the serial data

stream for deserialization and decoding. The INx1± serial stream is passed to the

receive CDR circuit to extract the data content when INSELx = HIGH.

INA2±

INB2±

INC2±

IND2±

Secondary Differential Serial Data Input. The INx2± input accepts the serial data

stream for deserialization and decoding. The INx2± serial stream is passed to the

receiver CDR circuit to extract the data content when INSELx = LOW.

JTAG Interface

TMS

LVTTL Input,

internal pull-up

Test Mode Select. Used to control access to the JTAG Test Modes. If maintained

high for 5 TCLK cycles, the JTAG test controller is reset.

TCLK

TDO

TDI

LVTTL Input,

internal pull-down

JTAG Test Clock.

3-State LVTTL Output Test Data Out. JTAG data output buffer. High-Z while JTAG test mode is not

selected.

LVTTL Input,

internal pull-up

Test Data In. JTAG data input port.

TRST

LVTTL Input,

internal pull-up

JTAG reset signal. When asserted (LOW), this input asynchronously resets the

JTAG test access port controller.

Power

V_CC

+3.3V Power.

GND

Signal and Power Ground for all internal circuits.

Document #: 38-02065 Rev. *I

Page 14 of 48

CYP15G0403DXB

If the phase offset, between the initialized location of the input

clock and REFCLKx¦, exceeds the skew handling capabilities of

the Phase-Align Buffer, an error is reported on that channel’s

TXERRx output. This output indicates an error continuously until

the Phase-Align Buffer for that channel is reset. While the error

remains active, the transmitter for that channel outputs a

continuous C0.7 character to indicate to the remote receiver that

an error condition is present in the link.

CYP15G0403DXB HOTLink II Operation

The CYP15G0403DXB is a highly configurable, independent

clocking, quad-channel transceiver designed to support reliable

transfer of large quantities of data, using high-speed serial links

from multiple sources to multiple destinations. This device

supports four single-byte channels.

CYP15G0403DXB Transmit Data Path

Each Phase-Align Buffer may be individually reset with minimal

disruption of the serial data stream. When a Phase-Align Buffer

error is present, the transmission of a Word Sync Sequence

re-centers the Phase-Align Buffer and clears the error indication.

Input Register

The bits in the Input Register for each channel support different

assignments, based on if the input data is encoded or

unencoded. These assignments are shown in Table 1.

Note. K28.5 characters may be added or removed from the data

stream during the Phase Align Buffer reset operation. When

used with non-Cypress devices that require a complete

16-character Word Sync Sequence for proper receive Elasticity

Buffer Operation, it is recommend that the Phase Alignment

Buffer reset be followed by a Word Sync Sequence to ensure

proper operation.

When the ENCODER is enabled, each input register captures

eight data bits and two control bits on each input clock cycle.

When the Encoder is bypassed, the control bits are part of the

pre-encoded 10-bit character.

When the Encoder is enabled, the TXCTx[1:0] bits are inter-

preted along with the associated TXDx[7:0] character to

generate a specific 10-bit transmission character.

Encoder

Each character received from the Input Register or Phase-Align

Buffer is passed to the Encoder logic. This block interprets each

character and any associated control bits, and outputs a 10-bit

transmission character.

Phase-Align Buffer

Data from each Input Register is passed to the associated

Phase-Align Buffer, when the TXDx[7:0] and TXCTx[1:0] input

registers are clocked using TXCLKx¦ (TXCKSELx = 0 and

TXRATEx = 0). When the TXDx[7:0] and TXCTx[1:0] input

registers are clocked using REFCLKx± (TXCKSELx = 1) and

REFCLKx± is a full-rate clock, the associated Phase Alignment

Buffer in the transmit path is bypassed. These buffers are used

to absorb clock phase differences between the TXCLKx input

clock and the internal character clock for that channel.

Depending on the operational mode, the generated transmission

character may be

■ the 10-bit pre-encoded character accepted in the Input

Register.

■ the 10-bit equivalent of the 8-bit Data character accepted in the

Input Register.

Once initialized, TXCLKx is allowed to drift in phase as much as

±180 degrees. If the input phase of TXCLKx drifts beyond the

handling capacity of the Phase Align Buffer, TXERRx is asserted

to indicate the loss of data, and remains asserted until the Phase

Align Buffer is initialized. The phase of the TXCLKx relative to its

associated internal character rate clock is initialized when the

configuration latch PABRSTx is written as 0. When the

■ the 10-bit equivalent of the 8-bit Special Character code

accepted in the Input Register.

■ the 10-bit equivalent of the C0.7 violation character if a

Phase-Align Buffer overflow or underflow error is present.

■ a character that is part of the 511-character BIST sequence.

associated TXERRx is deasserted, the Phase Align Buffer is

initialized and input characters are correctly captured.

■ a K28.5 character generated as an individual character or as

part of the 16-character Word Sync Sequence.

Table 1. Input Register Bit Assignments^[6]

Data Encoding

Signal Name

TXDx[0] (LSB)

TXDx[1]

Unencoded

DINx[0]

DINx[1]

DINx[2]

DINx[3]

DINx[4]

DINx[5]

DINx[6]

DINx[7]

DINx[8]

DINx[9]

Encoded

TXDx[0]

TXDx[1]

TXDx[2]

TXDx[3]

TXDx[4]

TXDx[5]

TXDx[6]

TXDx[7]

TXCTx[0]

TXCTx[1]

Raw data, as received directly from the Transmit Input Register,

is seldom in a form suitable for transmission across a serial link.

The characters must usually be processed or transformed to

guarantee

TXDx[2]

■ aminimumtransitiondensity(toallowthereceivePLLtoextract

a clock from the serial data stream).

TXDx[3]

TXDx[4]

■ a DC-balance in the signaling (to prevent baseline wander).

TXDx[5]

■ run-lengthlimitsintheserialdata(tolimitthebandwidthrequire-

ments of the serial link).

TXDx[6]

TXDx[7]

■ the remote receiver a way of determining the correct character

boundaries (framing).

TXCTx[0]

TXCTx[1] (MSB)

When the Encoder is enabled (ENCBYPx = 1), the characters

transmitted are converted from Data or Special Character codes

Note

6. LSB shifted out first.

Document #: 38-02065 Rev. *I

Page 15 of 48

CYP15G0403DXB

to 10-bit transmission characters, using an integrated 8B/10B

encoder. When directed to encode the character as a Special

Character code, the encoder uses the Special Character

encoding rules listed in Table 16 on page 45. When directed to

encode the character as a Data character, it is encoded using the

Data Character encoding rules in Table 15 on page 41.

Table 3. Transmit Modes

TXCTx[1] TXCTx[0]

Characters Generated

0

1

0

1

0

1

Encoded data character

K28.5 fill character

Special character code

The 8B/10B encoder is standards compliant with ANSI/NCITS

ASC X3.230-1994 Fibre Channel, IEEE 802.3z Gigabit Ethernet,

the IBM^®ESCON^®and FICON™ channels, ETSI DVB-ASI, and

ATM Forum standards for data transport.

16-character Word Sync Sequence

Word Sync Sequence

Many of the Special Character codes listed in Table 16 may be

generated by more than one input character. The

When TXCTx[1:0] = 11, a 16-character sequence of K28.5

characters, known as a Word Sync Sequence, is generated on

the associated channel. This sequence of K28.5 characters may

start with either a positive or negative disparity K28.5 (as deter-

mined by the current running disparity and the 8B/10B coding

rules). The disparity of the second and third K28.5 characters in

this sequence are reversed from what normal 8B/10B coding

rules would generate. The remaining K28.5 characters in the

sequence follow all 8B/10B coding rules. The disparity of the

generated K28.5 characters in this sequence follow a pattern of

either ++––+–+–+–+–+–+– or ––++–+–+–+–+–+–+.

CYP15G0403DXB is designed to support two independent (but

non-overlapping) Special Character code tables. This allows the

CYP15G0403DXB to operate in mixed environments with other

Cypress HOTLink devices using the enhanced Cypress

command code set, and the reduced command sets of other

non-Cypress devices. Even when used in an environment that

normally uses non-Cypress Special Character codes, the

selective use of Cypress command codes can permit operation

where running disparity and error handling must be managed.

Following conversion of each input character from eight bits to a

10-bit transmission character, it is passed to the Transmit Shifter

and is shifted out LSB first, as required by ANSI and IEEE

standards for 8B/10B coded serial data streams.

The generation of this sequence, once started, cannot be

stopped until all 16 characters have been sent. The content of

the associated input registers are ignored for the duration of this

sequence. At the end of this sequence, if the TXCTx[1:0] = 11

condition is sampled again, the sequence restarts and remains

uninterruptible for the following 15 character clocks.

Transmit Modes

Encoder Bypass

Transmit BIST

When the Encoder is bypassed, the character captured from the

TXDx[7:0] and TXCTx[1:0] input register is passed directly to the

transmit shifter without modification. With the encoder bypassed,

the TXCTx[1:0] inputs are considered part of the data character

and do not perform a control function that would otherwise

modify the interpretation of the TXDx[7:0] bits. The bit usage and

mapping of these control bits when the Encoder is bypassed is

shown in Table 2.

Each transmit channel contains an internal pattern generator that

can be used to validate both the link and device operation. These

generators are enabled by the associated TXBISTx latch via the

device configuration interface. When enabled, a register in the

associated transmit channel becomes a signature pattern

generator by logically converting to a Linear Feedback Shift

Register (LFSR). This LFSR generates a 511-character (or

526-character) sequence that includes all Data and Special

Character codes, including the explicit violation symbols. This

provides a predictable yet pseudo-random sequence that can be

matched to an identical LFSR in the attached Receiver(s).

Table 2. Encoder Bypass Mode

Signal Name

TXDx[0] (LSB)

TXDx[1]

Bus Weight

10B Name

2⁰

2¹

2²

2³

2⁴

2⁵

2⁶

2⁷

2⁸

2⁹

a^[6]

b

c

d

e

i

A device reset (RESET sampled LOW) presets the BIST Enable

Latches to disable BIST on all channels.

TXDx[2]

All data and data-control information present at the associated

TXDx[7:0] and TXCTx[1:0] inputs are ignored when BIST is

active on that channel. If the receive channels are configured for

reference clock operation, each pass is preceded by a

16-character Word Sync Sequence to allow Elasticity Buffer

alignment and management of clock-frequency variations.

TXDx[3]

TXDx[4]

TXDx[5]

TXDx[6]

f

Transmit PLL Clock Multiplier

TXDx[7]

g

h

j

TXCTx[0]

TXCTx[1] (MSB)

Each Transmit PLL Clock Multiplier accepts a character-rate or

half-character-rate external clock at the associated REFCLKx±

input, and that clock is multiplied by 10 or 20 (as selected by

TXRATEx) to generate a bit-rate clock for use by the transmit

shifter. It also provides a character-rate clock used by the

transmit paths, and outputs this character rate clock as

TXCLKOx.

When the encoder is enabled, the TXCTx[1:0] data control bits

control the interpretation of the TXDx[7:0] bits and the characters

generated by them. These bits are interpreted as listed in

Table 3.

Each clock multiplier PLL can accept a REFCLKx± input

between 19.5 MHz and 150 MHz, however, this clock range is

Document #: 38-02065 Rev. *I

Page 16 of 48

CYP15G0403DXB

limited by the operating mode of the CYP15G0403DXB clock

multiplier (TXRATEx) and by the level on the associated

SPDSELx input.

SPDSELx are 3-level select^[3]inputs that select one of three

operating ranges for the serial data outputs and inputs of the

associated channel. The operating serial signaling-rate and

allowable range of REFCLKx± frequencies are listed in Table 4.

Note. When a disabled transmit channel (i.e., both outputs

disabled) is re-enabled:

■ data on the serial outputs may not meet all timing specifications

for up to 250 s

■ the state of the phase-align buffer cannot be guaranteed, and

a phase-align reset is required if the phase-align buffer is used

Table 4. Operating Speed Settings

CYP15G0403DXB Receive Data Path

REFCLKx±

Frequency

(MHz)

Signaling Rate

Serial Line Receivers

SPDSELx TXRATE

(MBaud)

Two differential Line Receivers, INx1± and INx2±, are available

on each channel for accepting serial data streams. The active

Serial Line Receiver on a channel is selected using the

associated INSELx input. The Serial Line Receiver inputs are

differential, and can accommodate wire interconnect and filtering

losses or transmission line attenuation greater than 16 dB. For

normal operation, these inputs should receive a signal of at least

VI_DIFF> 100 mV, or 200 mV peak-to-peak differential. Each Line

Receiver can be DC- or AC-coupled to +3.3V powered fiber-optic

interface modules (any ECL/PECL family, not limited to 100K

PECL) or AC-coupled to +5V powered optical modules. The

common-mode tolerance of these line receivers accommodates

a wide range of signal termination voltages. Each receiver

provides internal DC-restoration, to the center of the receiver’s

common mode range, for AC-coupled signals.

LOW

MID (Open)

HIGH

1

0

1

0

1

0

reserved

19.5–40

20–40

195–400

400–800

40–80

40–75

800–1500

80–150

The REFCLKx± inputs are differential inputs with each input

internally biased to 1.4V. If the REFCLKx+ input is connected to

a TTL, LVTTL, or LVCMOS clock source, the input signal is

recognized when it passes through the internally biased

reference point. When driven by a single-ended TTL, LVTTL, or

LVCMOS clock source, connect the clock source to either the

true or complement REFCLKx input, and leave the alternate

REFCLKx input open (floating).

The local internal loopback (LPENx) allows the serial transmit

data outputs to be routed internally back to the Clock and Data

Recovery circuit associated with each channel. When configured

for local loopback, the associated transmit serial driver outputs

are forced to output a differential logic-1. This prevents local

diagnostic patterns from being broadcast to attached remote

receivers.

When both the REFCLKx+ and REFCLKx– inputs are

connected, the clock source must be a differential clock. This can

either be a differential LVPECL clock that is DC-or AC-coupled

or a differential LVTTL or LVCMOS clock.

By connecting the REFCLKx– input to an external voltage

source, it is possible to adjust the reference point of the

REFCLKx+ input for alternate logic levels. When doing so it is

necessary to ensure that the input differential crossing point

remains within the parametric range supported by the input.

Signal Detect/Link Fault

Each selected Line Receiver (i.e., that routed to the clock and

data recovery PLL) is simultaneously monitored for

■ analog amplitude above amplitude level selected by SDASELx

■ transition density above the specified limit

Serial Output Drivers

■ range controls report the received data stream inside normal

The serial output interface drivers use differential Current Mode

Logic (CML) drivers to provide source-matched drivers for trans-

mission lines. These drivers accept data from the Transmit

Shifters. These drivers have signal swings equivalent to that of

standard PECL drivers, and are capable of driving AC-coupled

optical modules or transmission lines. When configured for local

loopback (LPENx = HIGH), all enabled serial drivers are

configured to drive a static differential logic.

frequency range (±1500 ppm^[27]

■ receive channel enabled

■ Presence of reference clock

■ ULCx is not asserted.

)

All of these conditions must be valid for the Signal Detect block

to indicate a valid signal is present. This status is presented on

the LFIx (Link Fault Indicator) output associated with each

receive channel, which changes synchronous to the selected

receive interface clock.

Transmit Channels Enabled

Each driver can be enabled or disabled separately via the device

configuration interface.

Analog Amplitude

When a driver is disabled via the configuration interface, it is

internally powered down to reduce device power. If both serial

drivers for a channel are in this disabled state, the associated

internal logic for that channel is also powered down. A device

reset (RESET sampled LOW) disables all output drivers.

While most signal monitors are based on fixed constants, the

analog amplitude level detection is adjustable to allow operation

with highly attenuated signals, or in high-noise environments.

The analog amplitude level detection is set by the SDASELx

latch via device configuration interface. The SDASELx latch sets

the trip point for the detection of a valid signal at one of three

Document #: 38-02065 Rev. *I

Page 17 of 48

CYP15G0403DXB

levels, as listed in Table 5. This control input affects the analog

monitors for all receive channels.

latch as controlled by the device configuration interface. When

the RXPLLPDx latch = 0, the associated PLL and analog circuitry

of the channel is disabled. Any disabled channel indicates a

constant link fault condition on the LFIx output. When

RXPLLPDx = 1, the associated PLL and receive channel is

enabled to receive and decode a serial stream.

Table 5. Analog Amplitude Detect Valid Signal Levels^[7]

SDASEL Typical Signal with Peak Amplitudes Above

00

01

10

11

Analog Signal Detector is disabled

140 mV p-p differential

Note. When a disabled receive channel is reenabled, the status

of the associated LFIx output and data on the parallel outputs for

the associated channel may be indeterminate for up to 2 ms.

280 mV p-p differential

420 mV p-p differential

Clock/Data Recovery

The extraction of a bit-rate clock and recovery of bits from each

received serial stream is performed by a separate CDR block

within each receive channel. The clock extraction function is

performed by an integrated PLL that tracks the frequency of the

transitions in the incoming bit stream and align the phase of the

internal bit-rate clock to the transitions in the selected serial data

stream.

The Analog Signal Detect monitors are active for the Line

Receiver as selected by the associated INSELx input. When

configured for local loopback, no input receivers are selected,

and the LFIx output for each channel reports only the receive

VCO frequency out-of-range and transition density status of the

associated transmit signal. When local loopback is active, the

associated Analog Signal Detect Monitor is disabled.

Each CDR accepts a character-rate (bit-rate ÷ 10) or

half-character-rate (bit-rate ÷ 20) reference clock from the

associated REFCLKx± input. This REFCLKx± input is used to

Transition Density

The Transition Detection logic checks for the absence of transi-

tions spanning greater than six transmission characters (60 bits).

If no transitions are present in the data received, the Detection

logic for that channel asserts LFIx.

■ ensurethattheVCO(withintheCDR)isoperatingatthecorrect

frequency (rather than a harmonic of the bit-rate)

■ reduce PLL acquisition time

Range Controls

■ limit unlocked frequency excursions of the CDR VCO when

there is no input data present at the selected Serial Line

Receiver.

The CDR circuit includes logic to monitor the frequency of the

PLL Voltage Controlled Oscillator (VCO) used to sample the

incoming data stream. This logic ensures that the VCO operates

at, or near the rate of the incoming data stream for two primary

cases:

Regardless of the type of signal present, the CDR attempts to

recover a data stream from it. If the signalling rate of the

recovered data stream is outside the limits set by the range

control monitors, the CDR tracks REFCLKx± instead of the data

stream. Once the CDR output (RXCLK±) frequency returns back

close to REFCLKx± frequency, the CDR input is switched back

to the input data stream. If no data is present at the selected line

receiver, this switching behavior may result in brief RXCLK±

frequency excursions from REFCLKx±. However, the validity of

the input data stream is indicated by the LFIx output. The

frequency of REFCLKx± is required to be within ±1500 ppm^[27]

of the frequency of the clock that drives the REFCLKx± input of

the remote transmitter to ensure a lock to the incoming data

stream.

■ when the incoming data stream resumes after a time in which

it has been “missing.”

■ when the incoming data stream is outside the acceptable

signaling rate range.

To perform this function, the frequency of the RXPLL VCO is

periodically compared to the frequency of the REFCLKx± input.

If the VCO is running at a frequency beyond ±1500 ppm^[27]as

defined by the REFCLKx± frequency, it is periodically forced to

the correct frequency (as defined by REFCLKx±, SPDSELx, and

TXRATEx) and then released in an attempt to lock to the input

data stream.

For systems using multiple or redundant connections, the LFIx

output can be used to select an alternate data stream. When an

LFIx indication is detected, external logic can toggle selection of

the associated INx1± and INx2± input through the associated

INSELx input. When a port switch takes place, it is necessary for

the receive PLL for that channel to reacquire the new serial

stream and frame to the incoming character boundaries.

The sampling and relock period of the Range Control is calcu-

lated as follows: RANGE_CONTROL_ SAMPLING_PERIOD =

(RECOVERED BYTE CLOCK PERIOD) * (4096).

During the time that the Range Control forces the RXPLL VCO

to track REFCLKx±, the LFIx output is asserted LOW. After a

valid serial data stream is applied, it may take up to one RANGE

CONTROL SAMPLING PERIOD before the PLL locks to the

input data stream, after which LFIx should be HIGH.

Deserializer/Framer

Each CDR circuit extracts bits from the associated serial data

stream and clocks these bits into the Shifter/Framer at the

bit-clock rate. When enabled, the Framer examines the data

stream looking for one or more COMMA or K28.5 characters at

all possible bit positions. The location of this character in the data

Receive Channel Enabled

The CYP15G0403DXB contains four receive channels that can

be independently enabled and disabled. Each channel can be

enabled or disabled separately through the RXPLLPDx input

Note

7. The peak amplitudes listed in this table are for typical waveforms that have generally 3–4 transitions for every ten bits. In a worse case environment the signals

may have a sine-wave appearance (highest transition density with repeating 0101...). Signal peak amplitudes levels within this environment type could increase

the values in the table above by approximately 100 mV.

Document #: 38-02065 Rev. *I

Page 18 of 48

CYP15G0403DXB

stream is used to determine the character boundaries of all

following characters.

distributed to other external circuits or components using

PLL-based clock distribution elements. In this framing mode the

character boundaries are only adjusted if the selected framing

character is detected at least twice within a span of 50 bits, with

both instances on identical 10-bit character boundaries.

Framing Character

The CYP15G0403DXB allows selection of different framing

characters on each channel. Two combinations of framing

characters are supported to meet the requirements of different

interfaces. The selection of the framing character is made

through the FRAMCHARx latches via the configuration interface.

When RFMODEx[1:0] = 01, the Alternate-mode Multi-Byte

Framer is enabled. Like the Cypress-mode Multi-Byte Framer,

multiple framing characters must be detected before the

character boundary is adjusted. In this mode, the data stream

must contain a minimum of four of the selected framing

characters, received as consecutive characters, on identical

10-bit boundaries, before character framing is adjusted.

The specific bit combinations of these framing characters are

listed in Table 6. When the specific bit combination of the

selected framing character is detected by the framer, the bound-

aries of the characters present in the received data stream are

known.

10B/8B Decoder Block

The decoder logic block performs two primary functions:

Table 6. Framing Character Selector

■ decoding the received transmission characters to Data and

Special Character codes

Bits detected in framer

FRAMCHARx

Character Name

Bits Detected

00111110XX^[8]

or 11000001XX

■ comparing generated BIST patterns with received characters

to permit at-speed link and device testing.

0

1

COMMA+

COMMA–

The framed parallel output of each deserializer shifter is passed

to its associated 10B/8B Decoder where, if the decoder is

enabled, the input data is transformed from a 10-bit transmission

character back to the original Data or Special Character code.

This block uses the 10B/8B decoder patterns in Table 15 on page

41 and Table 16 on page 45. Received Special Code characters

are decoded using Table 16. Valid data characters are indicated

by a 000b bit-combination on the associated RXSTx[2:0] status

bits, and Special Character codes are indicated by a 001b

bit-combination of these status outputs. Framing characters,

Invalid patterns, disparity errors, and synchronization status are

presented as alternate combinations of these status bits.

–K28.5

+K28.5

0011111010 or

1100000101

Framer

The framer on each channel operates in one of three different

modes. Each framer may be enabled or disabled using the

RFENx latches via the configuration interface. When the framer

is disabled (RFENx = 0), no combination of received bits alters

the frame information.

When the Low-Latency framer is selected (RFMODEx[1:0] = 00),

the framer operates by stretching the recovered character clock

until it aligns with the received character boundaries. In this

mode the framer starts its alignment process on the first

detection of the selected framing character. To reduce the impact

on external circuits that use the recovered clock, the clock period

is not stretched by more than two bit-periods in any one clock

cycle. When operated with a character-rate output clock, the

output of properly framed characters may be delayed by up to

nine character-clock cycles from the detection of the selected

framing character. When operated with a half-character-rate

output clock, the output of properly framed characters may be

delayed by up to 14 character-clock cycles from the detection of

the framing character.

When DECBYPx = 0, the 10B/8B decoder is bypassed via the

configuration interface. When bypassed, raw 10-bit characters

are passed through the receiver and presented at the RXDx[7:0]

and the RXSTA[1:0] outputs as 10-bit wide characters.

When the decoder is enabled by setting DECBYPx = 1 via the

configuration interface, the 10-bit transmission characters are

decoded using Table 15 and Table 16. Received Special

characters are decoded using Table 16. The columns used in

Table 16 are determined by the DECMODEx latch via the device

configuration interface. When DECMODEx = 0 the ALTERNATE

table is used and when DECMODEx = 1 the CYPRESS table is

used.

Note. When Receive BIST is enabled on a channel, the

Low-Latency Framer must not be enabled. The BIST sequence

contains an aliased K28.5 framing character, which causes the

Receiver to update its character boundaries incorrectly.

Receive BIST Operation

The receiver channel contains an internal pattern checker that

can be used to validate both device and link operation. These

pattern checkers are enabled by the associated RXBISTx latch

via the device configuration interface. When enabled, a register

in the associated receive channel becomes a signature pattern

generator and checker by logically converting to a Linear

Feedback Shift Register (LFSR). This LFSR generates a

511-character or 526-character sequence that includes all Data

and Special Character codes, including the explicit violation

symbols. This provides a predictable yet pseudo-random

sequence that can be matched to an identical LFSR in the

attached Transmitter(s). When synchronized with the received

When RFMODEx[1:0] = 10, the Cypress-Mode Multi-Byte framer

is selected. The required detection of multiple framing characters

makes the associated link much more robust to incorrect framing

due to aliased SYNC characters in the data stream. In this mode,

the framer does not adjust the character clock boundary, but

instead aligns the character to the already recovered character

clock. This ensures that the recovered clock does not contain

any significant phase changes or hops during normal operation

or framing, and allows the recovered clock to be replicated and

Note

8. The standard definition of a Comma contains only seven bits. However, since all valid Comma characters within the 8B/10B character set also have the eighth

bit as an inversion of the seventh bit, the compare pattern is extended to a full eight bits to reduce the possibility of a framing error.

Document #: 38-02065 Rev. *I

Page 19 of 48

CYP15G0403DXB

data stream, the associated Receiver checks each character in

the Decoder with each character generated by the LFSR and

indicates compare errors and BIST status at the RXSTx[2:0] bits

of the Output Register.

buffer. The write clock for these buffers is always the recovered

clock for the associated read channel.

Receive Modes

When the receive channel is clocked by REFCLKx±, the

RXCLKx± outputs present a buffered or divided (depending on

RXRATEx) and delayed form of REFCLKx±. In this mode, the

receive Elasticity Buffers are enabled. For REFCLKx± clocking,

the Elasticity Buffers must be able to insert K28.5 characters and

delete framing characters as appropriate.

When BIST is first recognized as being enabled in the Receiver,

the LFSR is preset to the BIST-loop start-code of D0.0. This code

D0.0 is sent only once per BIST loop. The status of the BIST

progress and any character mismatches are presented on the

RXSTx[2:0] status outputs.

Code rule violations or running disparity errors that occur as part

of the BIST loop do not cause an error indication. RXSTx[2:0]

indicates 010b or 100b for one character period per BIST loop to

indicate loop completion. This status can be used to check test

pattern progress. These same status values are presented when

the decoder is bypassed and BIST is enabled on a receive

channel.

The insertion of a K28.5 or deletion of a framing character can

occur at any time on any channel, however, the actual timing of

these insertions and deletions is controlled in part by how the

transmitter sends its data. Insertion of a K28.5 character can only

occur when the receiver has a framing character in the Elasticity

Buffer. Likewise, to delete a framing character, one must also be

in the Elasticity Buffer. To prevent a buffer overflow or underflow

on a receive channel, a minimum density of framing characters

must be present in the received data streams.

The specific status reported by the BIST state machine are listed

in Table 11 on page 27. These same codes are reported on the

receive status outputs.

When the receive channel Output Register is clocked by a

recovered clock, no characters are added or deleted and the

receiver Elasticity Buffer is bypassed.

The specific patterns checked by each receiver are described in

detail in the Cypress application note “HOTLink Built-In

Self-Test.” The sequence compared by the CYP15G0403DXB is

identical to that in the CY7B933, CY7C924DX, and

CYP15G0401DXB, allowing interoperable systems to be built

when used at compatible serial signaling rates.

Power Control

The CYP15G0403DXB supports user control of the powered up

or down state of each transmit and receive channel. The receive

channels are controlled by the RXPLLPDx latch via the device

configuration interface. When RXPLLPDx = 0, the associated

PLL and analog circuitry of the channel is disabled. The transmit

channels are controlled by the OE1x and the OE2x latches via

the device configuration interface. When a driver is disabled via

the configuration interface, it is internally powered down to

reduce device power. If both serial drivers for a channel are in

this disabled state, the associated internal logic for that channel

is also powered down.

If the number of invalid characters received ever exceeds the

number of valid characters by 16, the receive BIST state

machine aborts the compare operations and resets the LFSR to

the D0.0 state to look for the start of the BIST sequence again.

When the receive paths are configured for REFCLKx± operation,

each pass must be preceded by a 16-character Word Sync

Sequence to allow management of clock frequency variations.

The receive BIST state machine requires the characters to be

correctly framed for it to detect the BIST sequence. If the Low

Latency Framer is enabled, the Framer misaligns to an aliased

SYNC character within the BIST sequence. If the Alternate

Multi-Byte Framer is enabled and the Receiver outputs are

clocked relative to a recovered clock, it is generally necessary to

frame the receiver before BIST is enabled. If the receive outputs

are clocked relative to REFCLKx±, the transmitter precedes

every 511 character BIST sequence with a 16

Device Reset State

When the CYP15G0403DXB is reset by assertion of RESET, all

state machines, counters, and configuration latches in the device

are initialized to a reset state, and the Elasticity Buffer pointers

are set to a nominal offset. Additionally, the JTAG controller must

also be reset to ensure valid operation (even if JTAG testing is

not performed). See “JTAG Support” on page 26 for JTAG state

machine initialization. See Table 9 on page 22 for the initialize

values of the configuration latches.

character-character Word Sync Sequence.

A device reset (RESET sampled LOW) presets the BIST Enable

Latches to disable BIST on all channels.

Following a device reset, it is necessary to enable the transmit

and receive channels used for normal operation. This can be

done by sequencing the appropriate values on the device config-

uration interface.^[4]

Receive Elasticity Buffer

Each receive channel contains an Elasticity Buffer that is

designed to support multiple clocking modes. These buffers

allow data to be read using a clock that is asynchronous in both

frequency and phase from the Elasticity Buffer write clock, or to

be read using a clock that is frequency coherent but with uncon-

trolled phase relative to the Elasticity Buffer write clock.

Output Bus

Each receive channel presents an 11-signal output bus

consisting of

If the chip is configured for operation with a recovered clock, the

Elasticity Buffer is bypassed.

■ an 8-bit data bus

■ a 3-bit status bus.

Each Elasticity Buffer is 10 characters deep, and supports and

an 11 bit wide data path. It is capable of supporting a decoded

character and three status bits for each character present in the

The signals present on this output bus are modified by the

present operating mode of the CYP15G0403DXB as selected by

the DECBYPx configuration latch. This mapping is shown in

Document #: 38-02065 Rev. *I

Page 20 of 48

CYP15G0403DXB

Table 7.

framer logic such that the rising edge of RXCLKx+ occurs when

COMDETx is present on the associated output bus.

Table 7. Output Register Bit Assignments

This adjustment only occurs when the framer is enabled. When

the framer is disabled, the clock boundaries are not adjusted,

and COMDETx may be asserted during the rising edge of

RXCLKx– (if an odd number of characters were received

following the initial framing).

BYPASS ACTIVE

Signal Name

DECODER

(DECBYPx = 0)

COMDETx

DOUTx[0]

DOUTx[1]

DOUTx[2]

DOUTx[3]

DOUTx[4]

DOUTx[5]

DOUTx[6]

DOUTx[7]

DOUTx[8]

DOUTx[9]

(DECBYP = 1)

RXSTx[2]

RXSTx[1]

RXSTx[0]

RXDx[0]

RXSTx[2] (LSB)

RXSTx[1]

RXSTx[0]

RXDx[0]

Receive Status Bits

When the 10B/8B decoder is enabled, each character presented

at the Output Register includes three associated status bits.

These bits are used to identify

RXDx[1]

RXDx[2]

■ if the contents of the data bus are valid,

■ the type of character present,

■ the state of receive BIST operations,

■ character violations.

RXDx[3]

RXDx[4]

RXDx[5]

RXDx[6]

These conditions often overlap; e.g. a valid data character

received with incorrect running disparity is not reported as a valid

data character. It is instead reported as a decoder violation of

some specific type. This implies a hierarchy or priority level to the

various status bit combinations. The hierarchy and value of each

status are listed in Table 11.

RXDx[7] (MSB)

RXDx[7]

When the 10B/8B decoder is bypassed, the framed 10-bit value

is presented to the associated Output Register, along with a

status output signal indicating if the character in the Output

Register is one of the selected framing characters. The bit usage

and mapping of the external signals to the raw 10B transmission

character is shown in Table 8.

A second status mapping, listed in Table 11, is used when the

receive channel is configured for BIST operation. This status is

used to report receive BIST status and progress.

Table 8. Decoder Bypass Mode

BIST Status State Machine

Signal Name

RXSTx[2] (LSB)

RXSTx[1]

RXSTx[0]

RXDx[0]

Bus Weight

10 Bit Name

When a receive path is enabled to look for and compare the

received data stream with the BIST pattern, the RXSTx[2:0] bits

identify the present state of the BIST compare operation.

COMDETx

2⁰

2¹

2²

2³

2⁴

2⁵

2⁶

2⁷

2⁸

2⁹

a

b

c

d

e

i

The BIST state machine has multiple states, as shown in

Figure 2 and Table 11. When the receive PLL detects an

out-of-lock condition, the BIST state is forced to the Start-of-BIST

state, regardless of the present state of the BIST state machine.

If the number of detected errors ever exceeds the number of

valid matches by greater than 16, the state machine is forced to

the WAIT_FOR_BIST state where it monitors the receive path for

the first character of the next BIST sequence (D0.0). Also, if the

Elasticity Buffer ever hits an overflow/underflow condition, the

status is forced to the BIST_START until the buffer is re-centered

(approximately nine character periods).

RXDx[1]

RXDx[2]

RXDx[3]

RXDx[4]

f

RXDx[5]

g

h

j

RXDx[6]

RXDx[7] (MSB)

To ensure compatibility between the source and destination

systems when operating in BIST modes, the sending and

receiving ends of the link must use the same receive clock

configuration.

The COMDETx status output operates the same regardless of

the bit combination selected for character framing by the

FRAMCHARx latch. COMDETx is HIGH when the character in

the output register contains the selected framing character at the

proper character boundary, and LOW for all other bit combina-

tions.

Device Configuration and Control Interface

The CYP15G0403DXB is highly configurable via the configu-

ration interface. The configuration interface allows the device to

be configured globally or allows each channel to be configured

independently. Table 9 lists the configuration latches within the

device including the initialization value of the latches upon the

assertion of RESET. Table 10 on page 26 shows how the latches

are mapped in the device. Each row in the Table 10 maps to a

8-bit latch bank. There are 16 such write-only latch banks. When

WREN = 0, the logic value in the DATA[7:0] is latched to the latch

bank specified by the values in ADDR[3:0]. The second column

of Table 10 specifies the channels associated with the corre-

When the low-latency framer and half-rate receive port clocking

are also enabled, the framer stretches the recovered clock to the

nearest 20-bit boundary such that the rising edge of RXCLKx+

occurs when COMDETx is present on the associated output bus.

When the Cypress or Alternate Mode Framer is enabled and

half-rate receive port clocking is also enabled, the output clock

is not modified when framing is detected, but a single pipeline

stage may be added or subtracted from the data stream by the

Document #: 38-02065 Rev. *I

Page 21 of 48

CYP15G0403DXB

sponding latch bank. For example, the first three latch banks (0,1

and 2) consist of configuration bits for channel A. The latch banks

12, 13 and 14 consist of Global configuration bits and the last

latch bank (15) is the Mask latch bank that can be configured to

perform bit-by-bit configuration.

basis. A logic 1 in a bit location allows for the update of that same

location of the target latch bank(s), whereas a logic 0 disables it.

The reset value of this latch bank is FFh, thereby making its use

optional by default. The mask latch bank is not maskable. The

FGLEN functionality is not affected by the bit 0 value of the mask

latch bank.

Global Enable Function

Latch Types

The global enable function, controlled by the GLENx bits, is a

feature that can be used to reduce the number of write opera-

tions needed to setup the latch banks. This function is beneficial

in systems that use a common configuration in multiple

channels. The GLENx bit is present in bit 0 of latch banks 0

through 11 only. Its default value (1) enables the global update

of the latch bank's contents. Setting the GLENx bit to 0 disables

this functionality.

There are two types of latch banks: static (S) and dynamic (D).

Each channel is configured by 2 static and 1 dynamic latch

banks. The S type contain those settings that normally do not

change for a given application, whereas the D type controls the

settings that could change dynamically during the application's

lifetime.The first row of latches for each channel (address

numbers 0, 3, 7, and 10) are the static receiver control latches.

The second row of latches for each channel (address numbers

1, 4, 8, and 11) are the static transmitter control latches. The third

row of latches for each channel (address numbers 2, 5, 9, and

12) are the dynamic control latches that are associated with

enabling dynamic functions within the device.

Latch Banks 12, 13, and 14 are used to load values in the related

latch banks in a global manner. A write operation to latch bank

12 could do a global write to latch banks 0, 3, 6, and 9 depending

on the value of GLENx in these latch banks; latch bank 13 could

do a global write to latch banks 1, 4, 7 and 10; and latch banks

14 could do a global write to latch banks 2, 5, 8 and 11. The

GLENx bit cannot be modified by a global write operation.

Latch Bank 14 is also useful for those users that do not need the

latch-based programmable feature of the device. This latch bank

could be used in those applications that do not need to modify

the default value of the static latch banks, and that can afford a

global (i.e., not independent) control of the dynamic signals. In

this case, this feature becomes available when ADDR[3:0] is left

unchanged with a value of “1110” and WREN is left asserted. The

signals present in DATA[7:0] effectively become global control

pins, and for the latch banks 2, 5, 8 and 11.

Force Global Enable Function

FGLENx forces the global update of the target latch banks, but

does not change the contents of the GLENx bits. If FGLENx = 1

for the associated global channel, FGLENx forces the global

update of the target latch banks.

Mask Function

An additional latch bank (15) is used as a global mask vector to

control the update of the configuration latch banks on a bit-by-bit

Table 9. Device Configuration and Control Latch Descriptions

Name

Signal Description

RFMODEA[1:0] Reframe Mode Select. The initialization value of the RFMODEx [1:0] latches = 10. RFMODEx is used to

RFMODEB[1:0] select the operating mode of the framer. When RFMODEx[1:0] = 00, the low-latency framer is selected. This

RFMODEC[1:0] frames on each occurrence of the selected framing character(s) in the received data stream. This mode of

RFMODED[1:0] framing stretches the recovered clock for one or multiple cycles to align that clock with the recovered data.

When RFMODEx[1:0] = 01, the alternate mode Multi-Byte parallel framer is selected. This requires detection

of the selected framing character(s) in the received serial bit stream, on identical 10-bit boundaries, on four

directly adjacent characters. The recovered character clock remains in the same phasing regardless of

character offset. When RFMODEx[1:0] =10, the Cypress-mode Multi-Byte parallel framer is selected. This

requires a pair of the selected framing character(s), on identical 10-bit boundaries, within a span of 50 bits,

before the character boundaries are adjusted. The recovered character clock remains in the same phasing

regardless of character offset. RFMODEx[1:0] = 11 is reserved for test.

FRAMCHARA

FRAMCHARB

FRAMCHARC

FRAMCHARD

Framing Character Select. The initialization value of the FRAMCHARx latch = 1. FRAMCHARx is used to

select the character or portion of a character used for framing of each channel’s received data stream. When

FRAMCHARx = 1, the framer looks for either disparity of the K28.5 character. When FRAMCHARx = 0, the

framer looks for either disparity of the 8-bit Comma characters. The specific bit combinations of these framing

characters are listed in Table 6 on page 19.

DECMODEA

DECMODEB

DECMODEC

DECMODED

Receiver Decoder Mode Select. The initialization value of the DECMODEx latch = 1. DECMODEx selects

the Decoder Mode used for the associated channel. When DECMODEx = 1 and decoder is enabled, the

Cypress Decoding Mode is used. When DECMODEx = 0 and decoder is enabled, the Alternate Decoding

mode is used. When the decoder is enabled (DECBYPx = 1), the 10-bit transmission characters are decoded

using Table 15 on page 41 and Table 16 on page 45. The column used in the Special Characters Table 16 is

determined by the DECMODEx latch.

Document #: 38-02065 Rev. *I

Page 22 of 48

CYP15G0403DXB

Table 9. Device Configuration and Control Latch Descriptions (continued)

Name

Signal Description

DECBYPA

DECBYPB

DECBYPC

DECBYPD

Receiver Decoder Bypass. The initialization value of the DECBYPx latch = 1. DECBYPx selects if the

Receiver Decoder is enabled or bypassed. When DECBYPx = 1, the decoder is enabled and the Decoder

Mode is selected by DECMODEx. When DECBYPx = 0, the decoder is bypassed and raw 10-bit characters

are passed through the receiver.

RXCKSELA

RXCKSELB

RXCKSELC

RXCKSELD

Receive Clock Select. The initialization value of the RXCKSELx latch = 1. RXCKSELx selects the receive

clock source used to transfer data to the Output Registers and the clock source for the RXCLK output. When

RXCKSELx = 1, the associated Output Registersare clocked by REFCLKx± at the associated RXCLKx

output buffer. When RXCKSELx = 0, the associated Output Registers, are clocked by the Recovered Byte

clock at the associated RXCLKxoutput buffer. These output clocks may operate at the character-rate or half

the character-rate as selected by RXRATEx.

RXRATEA

RXRATEB

RXRATEC

RXRATED

Receive Clock Rate Select. The initialization value of the RXRATEx latch = 1. RXRATEx is used to select

the rate of the RXCLKx± clock output.

When RXRATEx = 1 and RXCKSELx = 0, the RXCLKx± clock outputs are complementary clocks that follow

the recovered clock operating at half the character rate. Data for the associated receive channels should be

latched alternately on the rising edge of RXCLKx+ and RXCLKx–.

When RXRATEx = 0 and RXCKSELx = 0, the RXCLKx± clock outputs are complementary clocks that follow

the recovered clock operating at the character rate. Data for the associated receive channels should be latched

on the rising edge of RXCLKx+ or falling edge of RXCLKx–.

When RXRATEx = 1 with RXCKSELx = 1 and REFCLKx± is a full-rate clock, the RXCLKx± clock outputs are

complementary clocks that follow the reference clock operating at half the character rate. Data for the

associated receive channels should be latched alternately on the rising edge of RXCLKx+ and RXCLKx–.

When RXRATEx = 0 with RXCKSELx = 1 and REFCLKx± is a full-rate clock, the RXCLKx± clock outputs are

complementary clocks that follow the reference clock operating at the character rate. Data for the associated

receive channels should be latched on the rising edge of RXCLKx+ or falling edge of RXCLKx–.

When RXCKSELx = 1 and REFCLKx± is a half-rate clock, the value of RXRATEx is not interpreted and the

RXCLKx± clock outputs are complementary clocks that follow the reference clock operating at half the

character rate. Data for the associated receive channels should be latched alternately on the rising edge of

RXCLKx+ and RXCLKx–.

SDASEL1A[1:0] Primary Serial Data Input Signal Detector Amplitude Select. The initialization value of the SDASEL1x[1:0]

SDASEL1B[1:0] latch = 10. SDASEL1x[1:0] selects the trip point for the detection of a valid signal for the INx1± Primary

SDASEL1C[1:0] Differential Serial Data Inputs.

SDASEL1D[1:0] When SDASEL1x[1:0] = 00, the Analog Signal Detector is disabled.

When SDASEL1x[1:0] = 01, the typical p-p differential voltage threshold level is 140 mV.

When SDASEL1x[1:0] = 10, the typical p-p differential voltage threshold level is 280 mV.

When SDASEL1x[1:0] = 11, the typical p-p differential voltage threshold level is 420 mV.

SDASEL2A[1:0] Secondary Serial Data Input Signal Detector Amplitude Select. The initialization value of the

SDASEL2B[1:0] SDASEL2x[1:0] latch = 10. SDASEL2x[1:0] selects the trip point for the detection of a valid signal for the INx2±

SDASEL2C[1:0] Secondary Differential Serial Data Inputs.

SDASEL2D[1:0] When SDASEL2x[1:0] = 00, the Analog Signal Detector is disabled

When SDASEL2x[1:0] = 01, the typical p-p differential voltage threshold level is 140 mV.

When SDASEL2x[1:0] = 10, the typical p-p differential voltage threshold level is 280 mV.

When SDASEL2x[1:0] = 11, the typical p-p differential voltage threshold level is 420 mV.

ENCBYPA

ENCBYPB

ENCBYPC

ENCBYPD

Transmit Encoder Bypassed. The initialization value of the ENCBYPx latch = 1. ENCBYPx selects if the

Transmit Encoder is enabled or bypassed. When ENCBYPx = 1, the Transmit encoder is enabled. When

ENCBYPx = 0, the Transmit Encoder is bypassed and raw 10-bit characters are transmitted.

TXCKSELA

TXCKSELB

TXCKSELC

TXCKSELD

Transmit Clock Select. The initialization value of the TXCKSELx latch = 1. TXCKSELx selects the clock

source used to write data into the Transmit Input Register. When TXCKSELx = 1, the associated input register,

TXDx[7:0] and TXCTx[1:0], is clocked by REFCLKx In this mode, the phase alignment buffer in the transmit

path is bypassed. When TXCKSELx = 0, the associated TXCLKx is used to clock in the input registers,

TXDx[7:0] and TXCTx[1:0].

Document #: 38-02065 Rev. *I

Page 23 of 48

CYP15G0403DXB

Table 9. Device Configuration and Control Latch Descriptions (continued)

Name

Signal Description

TXRATEA

TXRATEB

TXRATEC

TXRATED

Transmit PLL Clock Rate Select. The initialization value of the TXRATEx latch = 0. TXRATEx is used to

select the clock multiplier for the Transmit PLL. When TXRATEx = 0, each transmit PLL multiples the

associated REFCLKx± input by 10 to generate the serial bit-rate clock. When TXRATEx = 0, the TXCLKOx

output clocks are full-rate clocks and follow the frequency and duty cycle of the associated REFCLKx± input.

When TXRATEx = 1, each Transmit PLL multiplies the associated REFCLKx± input by 20 to generate the

serial bit-rate clock. When TXRATEx = 1, the TXCLKOx output clocks are twice the frequency rate of the

REFCLKx± input. When TXCKSELx = 1 and TXRATEx = 1, the Transmit Data Inputs are captured using both

the rising and falling edges of REFCLKx. TXRATEx = 1 and SPDSELx is LOW, is an invalid state and this

combination is reserved.

RFENA

RFENB

RFENC

RFEND

Reframe Enable. The initialization value of the RFENx latch = 1. RFENx selects if the receiver framer is

enabled or disabled. When RFENx = 1, the associated channel’s framer is enabled to frame per the presently

enabled framing mode and selected framing character. When RFENx = 0, the associated channel’s framer is

disabled, and no received bits alters the frame offset.

RXPLLPDA

RXPLLPDB

RXPLLPDC

RXPLLPDD

Receive Channel Enable. The initialization value of the RXPLLPDx latch = 0. RXPLLPDx selects if the

associated receive channel is enabled or powered-down. When RXPLLPDx = 0, the associated PLL and

analog circuitry is powered-down. When RXPLLPDx = 1, the associated PLL and analog circuitry is enabled.

RXBISTA

RXBISTB

RXBISTC

RXBISTD

Receive Bist Disabled. The initialization value of the RXBISTx latch = 1. RXBISTx selects if receive BIST is

disabled or enabled. When RXBISTx = 1, the receiver BIST function is disabled. When RXBISTx = 0, the

receive BIST function is enabled.

TXBISTA

TXBISTB

TXBISTC

TXBISTD

Transmit Bist Disabled. The initialization value of the TXBISTx latch = 1. TXBISTx selects if the transmit

BIST is disabled or enabled. When TXBISTx = 1, the transmit BIST function is disabled. When TXBISTx = 0,

the transmit BIST function is enabled.

OE2A

OE2B

OE2C

OE2D

Secondary Differential Serial Data Output Driver Enable. The initialization value of the OE2x latch = 0.

OE2x selects if the OUT2± secondary differential output drivers are enabled or disabled. When OE2x = 1, the

associated serial data output driver is enabled allowing data to be transmitted from the transmit shifter. When

OE2x = 0, the associated serial data output driver is disabled. When a driver is disabled via the configuration

interface, it is internally powered down to reduce device power. If both serial drivers for a channel are in this

disabled state, the associated internal logic for that channel is also powered down. A device reset (RESET

sampled LOW) disables all output drivers.

OE1A

OE1B

OE1C

OE1D

Primary Differential Serial Data Output Driver Enable. The initialization value of the OE1x latch = 0. OE1x

selects if the OUT1± primary differential output drivers are enabled or disabled. When OE1x = 1, the associated

serial data output driver is enabled allowing data to be transmitted from the transmit shifter. When OE1x = 0,

the associated serial data output driver is disabled. When a driver is disabled via the configuration interface,

it is internally powered down to reduce device power. If both serial drivers for a channel are in this disabled

state, the associated internal logic for that channel is also powered down. A device reset (RESET sampled

LOW) disables all output drivers.

PABRSTA

PABRSTB

PABRSTC

PABRSTD

Transmit Clock Phase Alignment Buffer Reset. The initialization value of the PABRSTx latch = 1. The

PABRSTx is used to re-center the Transmit Phase Align Buffer. When the configuration latch PABRSTx is

written as a 0, the phase of the TXCLKx input clock relative to its associated REFCLKx+/- is initialized.

PABRST is an asynchronous input, but is sampled by each TXCLKx to synchronize it to the internal clock

domain. PABRSTx is a self clearing latch. This eliminates the requirement of writing a 1 to complete the

initialization of the Phase Alignment Buffer.

GLEN[11..0]

FGLEN[2..0]

Global Enable. The initialization value of the GLENx latch = 1. The GLENx is used to reconfigure several

channels simultaneously in applications where several channels may have the same configuration. When

GLENx = 1 for a given address, that address is allowed to participate in a global configuration. When GLENx

= 0 for a given address, that address is disabled from participating in a global configuration.

Force Global Enable. The initialization value of the FGLENx latch is NA. The FGLENx latch forces a GLobal

ENable no matter what the setting is on the GLENx latch. If FGLENx = 1 for the associated Global channel,

FGLEN forces the global update of the target latch banks.

Document #: 38-02065 Rev. *I

Page 24 of 48

CYP15G0403DXB

Device Configuration Strategy

4. Set the dynamic bank of latches for the target channel. Enable

the Receive PLLs and transmit channels. May be performed

using a global operation, if the application permits it.

[Required step.]

The following is a series of ordered events needed to load the

configuration latches on a per channel basis:

1. Pulse RESET Low after device power-up. This operation

resets all four channels. Initialize the JTAG state machine to

its reset state as detailed in “JTAG Support” on page 26.

5. Reset the Phase Alignment Buffer for the target channel. May

be performed using a global operation, if the application

permits it. [Optional if phase align buffer is bypassed.]

2. Set the static receiver latch bank for the target channel. May

be performed using a global operation, if the application

permits it. [Optional step if the default settings match the

desired configuration.]

When a receive channel is configured with the decoder

bypassed and the receive clock selected as recovered clock in

half-rate mode (DECBYPx = 0, RXRATEx = 1, RXCKSELx = 0),

the channel cannot be dynamically reconfigured to enable the

decoder with RXCLKx selected as the REFCLKx (DECBYPx =

1, RXCKSELx = 1). If such a change is desired, a global reset

should be performed and all channels should be reconfigured to

the desired settings.

3. Set the static transmitter latch bank for the target channel.

May be performed using a global operation, if the application

permits it. [Optional step if the default settings match the

desired configuration.]

Document #: 38-02065 Rev. *I

Page 25 of 48

CYP15G0403DXB

Table 10. Device Control Latch Configuration Table

Reset

ADDR Channel Type

DATA7

RFMODEA[1] RFMODEA[0] FRAMCHARA

SDASEL2A[1] SDASEL2A[0] SDASEL1A[1] SDASEL1A[0] ENCBYPA TXCKSELA TXRATEA

RFENA RXPLLPDA RXBISTA TXBISTA OE2A OE1A PABRSTA

RFMODEB[1] RFMODEB[0] FRAMCHARB DECMODEB DECBYPB RXCKSELB RXRATEB

SDASEL2B[1] SDASEL2B[0] SDASEL1B[1] SDASEL1B[0] ENCBYPB TXCKSELB TXRATEB

RFENB RXPLLPDB RXBISTB TXBISTB OE2B OE1B PABRSTB

DATA6

DATA5

DATA4

DATA3

DATA2

DATA1

DATA0

Value

0

A

S

D

S

D

S

D

S

D

S

D

DECMODEA DECBYPA RXCKSELA RXRATEA

GLEN0

10111111

(0000b)

1

A

GLEN1

GLEN2

GLEN3

GLEN4

GLEN5

GLEN6

GLEN7

GLEN8

10101101

10110011

10111111

10101101

10110011

10111111

10101101

10110011

10111111

10101101

10110011

N/A

(0001b)

2

A

(0010b)

3

B

(0011b)

4

B

(0100b)

5

B

(0101b)

6

C

RFMODEC[1] RFMODEC[0] FRAMCHARC DECMODEC DECBYPC RXCKSELC RXRATEC

SDASEL2C[1] SDASEL2C[0] SDASEL1C[1] SDASEL1C[0] ENCBYPC TXCKSELC TXRATEC

(0110b)

7

C

(0111b)

8

C

D

RFENC

RXPLLPDC

RXBISTC

TXBISTC

OE2C

OE1C

PABRSTC

(1000b)

9

RFMODED[1] RFMODED[0] FRAMCHARD DECMODED DECBYPD RXCKSELD RXRATE D GLEN9

SDASEL2D[1] SDASEL2D[0] SDASEL1D[1] SDASEL1D[0] ENCBYPD TXCKSELD TXRATED GLEN10

(1001b)

10

(1010b)

D

11

(1011b)

D

RFEND

RXPLLPDD

RXBISTD

TXBISTD

OE2D

OE1D

PABRSTD GLEN11

12

GLOBAL

MASK

RFMODEGL[1]

RFMODE

GL[0]

FRAMCHARGL DECMODEGL DECBYPGL RXCKSELGL RXRATEG FGLEN0

L

(1100b)

13

(1101b)

SDASEL2GL[1] SDASEL2GL[ SDASEL1GL[1] SDASEL1GL[0 ENCBPGL TXCKSELGL TXRATEG FGLEN1

N/A

0]

]

L

14

(1110b)

RFENGL

D7

RXPLLPDGL

RXBISTGL

D5

TXBISTGL

OE2GL

D3

OE1GL

D2

PABRSTG FGLEN2

L

N/A

15

(1111b)

D6

D4

D1

D0

11111111

that the JTAG controller does not enter any of the test modes

after device power-up. In this JTAG reset state, the rest of the

device will be in normal operation.

JTAG Support

The CYP15G0403DXB contains a JTAG port to allow system

level diagnosis of device interconnect. Of the available JTAG

modes, boundary scan, and bypass are supported. This

capability is present only on the LVTTL inputs and outputs and

the REFCLKx± clock input. The high-speed serial inputs and

outputs are not part of the JTAG test chain.

Note. The order of device reset (using RESET) and JTAG initial-

ization does not matter.

3-Level Select Inputs

Each 3-Level select inputs reports as two bits in the scan register.

These bits report the LOW, MID, and HIGH state of the

associated input as 00, 10, and 11 respectively

To ensure valid device operation after power-up (including

non-JTAG operation), the JTAG state machine should also be

initialized to a reset state. This should be done in addition to the

device reset (using RESET). The JTAG state machine can be

initialized using TRST (asserting it LOW and de-asserting it or

leaving it asserted), or by asserting TMS HIGH for at least 5

consecutive TCLK cycles. This is necessary in order to ensure

JTAG ID

The JTAG device ID for the CYP15G0403DXB is ‘0C810069’x.

Document #: 38-02065 Rev. *I

Page 26 of 48

CYP15G0403DXB

Table 11. Receive Character Status Bits

RXSTx[2:0] Priority

Description

Receive BIST Status

(Receive BIST = Enabled)

Normal Status

000

7

Normal character received. The valid Data

character on the output bus meets all the

formatting requirements of Data characters

listed in Table 15 on page 41.

BIST Data Compare. Character compared correctly.

001

7

Special code detected. The valid special

character on the output bus meets all the

formatting requirements of Special Code

characters listed in Table 16 on page 45, but is

not the presently selected framing character or a

decoder violation indication.

BIST Command Compare. Character compared

correctly.

010

011

2

5

Receive Elasticity buffer underrun/overrun BIST Last Good. Last Character of BIST sequence

error. The receive buffer was not able to

detected and valid.

add/drop a K28.5 or framing character

Framing character detected. This indicates

that a character matching the patterns identified

as a framing character (as selected by

FRAMCHARx) was detected. The decoded

value of this character is present in the

associated output bus.

100

101

4

1

Codeword violation. The character on the

output bus is a C0.7. This indicates that the

received character cannot be decoded into any

valid character.

BIST Last Bad. Last Character of BIST sequence

detected invalid.

Loss of sync. This indicates a PLL Out of Lock BIST Start. Receive BIST is enabled on this channel,

condition

but character compares have not yet commenced. This

also indicates a PLL Out of Lock condition, and

Elasticity Buffer overflow/underflow conditions.

110

111

6

3

Running disparity error. The character on the BIST Error. While comparing characters, a mismatch

output bus is a C4.7, C1.7, or C2.7.

was found in one or more of the decoded character bits.

Reserved

BIST Wait. The receiver is comparing characters. but

has not yet found the start of BIST character to enable

the LFSR.

Document #: 38-02065 Rev. *I

Page 27 of 48

CYP15G0403DXB

Figure 2. Receive BIST State Machine

Monitor Data

Received

Receive BIST

Detected LOW

RXSTx =

BIST_START (101)

RX PLL

Out of Lock

RXSTx =

BIST_START (101)

RXSTx =

BIST_WAIT (111)

Elasticity

Buffer Error

Yes

Start of

BIST Detected

No

Yes, RXSTx =

BIST_DATA_COMPARE (000) / BIST_COMMAND_COMPARE (001)

Compare

Next Character

RXSTx =

Mismatch

BIST_COMMAND_COMPARE (001)

Match

Command

Data or

Command

Auto-Abort

Condition

Yes

RXSTx =

BIST_DATA_COMPARE (000)

No

Data

End-of-BIST

State

End-of-BIST

State

No

Yes, RXSTx =

BIST_LAST_BAD (100)

Yes, RXSTx =

BIST_LAST_GOOD (010)

No, RXSTx =

BIST_ERROR (110)

Document #: 38-02065 Rev. *I

Page 28 of 48

CYP15G0403DXB

Static Discharge Voltage..........................................> 2000 V

(per MIL-STD-883, Method 3015)

Maximum Ratings

Above which the useful life may be impaired. User guidelines

only, not tested

Latch-up Current.....................................................> 200 mA

Power-up Requirements

Storage Temperature ..................................–65°C to +150°C

The CYP15G0403DXB requires one power-supply. The

Voltage on any input or I/O pin cannot exceed the power pin

during power-up.

Ambient Temperature with

Power Applied.............................................–55°C to +125°C

Supply Voltage to Ground Potential............... –0.5V to +3.8V

Operating Range

DC Voltage Applied to LVTTL Outputs

in High-Z State .......................................–0.5V to V_CC+ 0.5V

Range

Ambient Temperature

V_CC

Output Current into LVTTL Outputs (LOW)..................60 mA

DC Input Voltage....................................–0.5V to V_CC+ 0.5V

Commercial

0°C to +70°C

+3.3V ±5%

DC Electrical Characteristics

Parameter

Description

Test Conditions

Min.

Max.

Unit

LVTTL-compatible Outputs

V_OHT

V_OLT

I_OST

I_OZL

Output HIGH Voltage

Output LOW Voltage

I_OH=  4 mA, V_CC= Min.

I_OL= 4 mA, V_CC= Min.

V_OUT= 0V^[9], V_CC= 3.3V

V_OUT= 0V, V_CC

2.4

V

0.4

–100

20

Output Short Circuit Current

–20

mA

µA

High-Z Output Leakage Current

LVTTL-compatible Inputs

V_IHT

V_ILT

I_IHT

Input HIGH Voltage

2.0

V_CC+ 0.3

0.8

V

Input LOW Voltage

Input HIGH Current

–0.5

V

REFCLKx Input, V_IN= V_CC

Other Inputs, V_IN= V_CC

REFCLKx Input, V_IN= 0.0V

Other Inputs, V_IN= 0.0V

1.5

mA

µA

mA

µA

+40

I_ILT

Input LOW Current

–1.5

–40

I_IHPDT

I_ILPUT

Input HIGH Current with internal pull-down V_IN= V_CC

+200

–200

Input LOW Current with internal pull-up

V_IN= 0.0V

LVDIFF Inputs: REFCLKx

[10]

V_DIFF

Input Differential Voltage

400

1.2

0.0

1.0

V_CC

mV

V

V_IHHP

Highest Input HIGH Voltage

Lowest Input LOW voltage

Common Mode Range

V_ILLP

V_CC/2

V

[11]

V_COMREF

V_CC– 1.2V

V

3-Level Inputs

V_IHH

V_IMM

V_ILL

I_IHH

I_IMM

I_ILL

Three-Level Input HIGH Voltage

Min.  V_CC Max.

V_IN= V_CC

0.87 * V_CC

0.47 * V_CC

0.0

V_CC

0.53 * V_CC

0.13 * V_CC

200

V

Three-Level Input MID Voltage

Three-Level Input LOW Voltage

Input HIGH Current

V

µA

Input MID current

V_IN= V_CC/2

–50

50

Input LOW current

V_IN= GND

–200

Notes

9. Tested one output at a time, output shorted for less than one second, less than 10% duty cycle.

10. This is the minimum difference in voltage between the true and complement inputs required to ensure detection of a logic-1 or logic-0. A logic-1 exists when the

true (+) input is more positive than the complement () input. A logic-0 exists when the complement () input is more positive than true (+) input.

11. The common mode range defines the allowable range of REFCLKx+ and REFCLKxwhen REFCLKx+ = REFCLKx. This marks the zero-crossing between

the true and complement inputs as the signal switches between a logic-1 and a logic-0.

Document #: 38-02065 Rev. *I

Page 29 of 48

CYP15G0403DXB

DC Electrical Characteristics (continued)

Parameter

Description

Test Conditions

Min.

Max.

Unit

Differential CML Serial Outputs: OUTA1, OUTA2, OUTB1, OUTB2OUTC1, OUTC2, OUTD1, OUTD2

V_OHC

V_OLC

V_ODIF

Output HIGH Voltage

(V_ccReferenced)

100 differential load

150 differential load

100 differential load

150 differential load

100 differential load

150 differential load

V_CC– 0.5

V_CC– 1.4

450

V_CC– 0.2

V_CC– 0.7

900

V

Output LOW Voltage

(V_CCReferenced)

V

Output Differential Voltage

|(OUT+)  (OUT)|

mV

560

1000

Differential Serial Line Receiver Inputs: INA1, INA2, INB1, INB2, INC1, INC2, IND1, IND2

[10]

V_DIFFs

V_IHE

V_ILE

Input Differential Voltage |(IN+)  (IN)|

Highest Input HIGH Voltage

Lowest Input LOW Voltage

Input HIGH Current

100

1200

V_CC

mV

V

V_CC– 2.0

V

I_IHE

V_IN= V_IHEMax.

V_IN= V_ILEMin.

1350

+3.1

A

V

I_ILE

Input LOW Current

–700

[12]

VI_COM

Common Mode input range

((V_CC– 2.0V)+0.5)min,

(V_CC– 0.5V) max.

+1.25

Power Supply

Typ.

Max.

[13, 14]

I_CC

Max Power Supply Current

REFCLKx= Commercial

MAX

910

1270

mA

[13, 14]

I_CC

Typical Power Supply Current

REFCLKx= Commercial

125 MHz

900

1270

AC Test Loads and Waveforms

3.3V

R_L= 100

R

L

R1

R2

R1 = 590

(Includes fixture and

probe capacitance)

(b) CML Output Test Load^[15]

R2 = 435

C_L 7 pF

C_L

(Includes fixture and

probe capacitance)

(a) LVTTL Output Test Load ^[15]

V_IHE

3.0V

V_IHE

2.0V

0.8V

2.0V

0.8V

80%

V_th= 1.4V

20%

V_ILE

 270 ps

GND

V_ILE

 270 ps

 1 ns

(c) LVTTL Input Test Waveform^[16]

(d) CML/LVPECL Input Test Waveform

Notes

12. The common mode range defines the allowable range of INPUT+ and INPUTwhen INPUT+ = INPUT. This marks the zero-crossing between the true and

complement inputs as the signal switches between a logic-1 and a logic-0.

13. Maximum I is measured with V = MAX, RFENx = 0, T = 25°C, with all channels and Serial Line Drivers enabled, sending a continuous alternating 01

CC

A

pattern, and outputs unloaded.

14. Typical I is measured under similar conditions except with V = 3.3V, T = 25°C, RFENx = 0, with all channels enabled and one Serial Line Driver per transmit

CC

A

channel sending a continuous alternating 01 pattern. The redundant outputs on each channel are powered down and the parallel outputs are unloaded.

15. Cypress uses constant current (ATE) load configurations and forcing functions. This figure is for reference only.

16. The LVTTL switching threshold is 1.4V. All timing references are made relative to where the signal edges cross the threshold voltage.

Document #: 38-02065 Rev. *I

Page 30 of 48

CYP15G0403DXB

AC Electrical Characteristics

Parameter

Description

Min.

Max

Unit

Transmitter LVTTL Switching Characteristics Over the Operating Range

f_TS

TXCLKx Clock Cycle Frequency

TXCLKx Period=1/f_TS

19.5

6.66

2.2

150

MHz

ns

t_TXCLK

51.28

[17]

t_TXCLKH

TXCLKx HIGH Time

ns

[17]

t_TXCLKL

TXCLKx LOW Time

2.2

ns

[17, 18, 19, 20]

t_TXCLKR

t_TXCLKF

t_TXDS

TXCLKx Rise Time

0.2

1.7

ns

[17, 18, 19, 20]

TXCLKx Fall Time

0.2

ns

Transmit Data Set-up Time toTXCLKx (TXCKSELx  0)

Transmit Data Hold Time from TXCLKx(TXCKSELx  0)

TXCLKOx Clock Frequency = 1x or 2x REFCLKx Frequency

TXCLKOx Period=1/f_TOS

2.2

ns

t_TXDH

1.0

ns

f_TOS

19.5

6.66

–1.9

150

51.28

0

MHz

ns

t_TXCLKO

t_TXCLKOD

TXCLKO Duty Cycle centered at 60% HIGH time

ns

Receiver LVTTL Switching Characteristics Over the Operating Range

f_RS

RXCLKx± Clock Output Frequency

RXCLKx± Period = 1/f_RS

9.75

6.66

–1.0

150

102.56

+1.0

MHz

ns

t_RXCLKP

t_RXCLKD

RXCLKx± Duty Cycle Centered at 50% (Full Rate and Half Rate when

RXCKSELx = 0)

ns

[17]

t_RXCLKR

RXCLKx± Rise Time

RXCLKx± Fall Time

0.3

1.2

ns

[17]

t_RXCLKF

[21]

t_RXDv–

Status and Data Valid Time to RXCLKx± (RXRATEx = 0, RXCKSELx = 5UI – 2.0^[22]

0) (Full Rate)

Status and Data Valid Time to RXCLKx± (RXRATEx = 1, RXCKSELx = 5UI – 1.3^[22]

0) (Half Rate)

ns

5UI–1.8^[22]

[21]

t_RXDv+

Status and Data Valid Time to RXCLKx± (RXRATEx = 0, RXCKSELx =

0) (Full Rate)

Status and Data Valid Time to RXCLKx± (RXRATEx = 1, RXCKSELx =0) 5UI – 2.6^[22]

(Half Rate)

REFCLKx Switching Characteristics Over the Operating Range

f_REF

REFCLKx Clock Frequency

19.5

6.66

150^[17]

51.28

MHz

ns

%

t_REFCLK

t_REFH

REFCLKx Period = 1/f_REF

REFCLKx HIGH Time (TXRATEx = 1)(Half Rate)

REFCLKx HIGH Time (TXRATEx = 0)(Full Rate)

REFCLKx LOW Time (TXRATEx = 1)(Half Rate)

REFCLKx LOW Time (TXRATEx = 0)(Full Rate)

REFCLKx Duty Cycle

5.9^[23]

2.9^[17]

5.9^[23]

2.9^[17]

30

t_REFL

[24]

t_REFD

70

2

[17, 18, 19, 20]

t_REFR

REFCLKx Rise Time (20%–80%)

ns

Notes

17. Tested initially and after any design or process changes that may affect these parameters, but not 100% tested.

18. The ratio of rise time to falling time must not vary by greater than 2:1.

19. For a given operating frequency, neither rise or fall specification can be greater than 20% of the clock-cycle period or the data sheet maximum time.

20. All transmit AC timing parameters measured with 1 ns typical rise time and fall time.

21. Parallel data output specifications are only valid if all outputs are loaded with similar DC and AC loads.

22. Receiver UI (Unit Interval) is calculated as 1/(f

* 20) (when TXRATEx = 1) or 1/(f

* 10) (when TXRATEx = 0). In an operating link this is equivalent to t .

REF

R

E

F

B

23. If REFCLKx is selected as receive interface clock (RXCKSELx=1), then this parameter has to be greater than or equal to 6.3 ns.

24. The duty cycle specification is a simultaneous condition with the t

and t

parameters. This means that at faster character rates the REFCLKx± duty

REFL

REFH

cycle cannot be as large as 30%–70%.

Document #: 38-02065 Rev. *I

Page 31 of 48

CYP15G0403DXB

AC Electrical Characteristics (continued)

Parameter

Description

Min.

Max

Unit

ns

[17, 18, 19, 20]

t_REFF

REFCLKx Fall Time (20%–80%)

2

t_TREFDS

Transmit Data Set-up Time toREFCLKx - Full Rate

(TXRATEx = 0, TXCKSELx  1)

2.4

2.3

1.0

1.6

ns

Transmit Data Set-up Time toREFCLKx - Half Rate

(TXRATEx = 1, TXCKSELx  1)

ns

t_TREFDH

Transmit Data Hold Time from REFCLKx - Full Rate

(TXRATEx = 0, TXCKSELx  1)

Transmit Data Hold Time from REFCLKx - Half Rate

(TXRATEx = 1, TXCKSELx  1)

t_RREFDA

t_RREFDW

t_REFxDV–

Receive Data Access Time toREFCLKx (RXCKSELx  1)

Receive Data Valid Time Window (RXCKSELx  1)

9.7^[25]

ns

10UI – 5.8

10UI^[22]– 6.16

Received Data Valid Time to RXCLK when RXCKSELx  1

(TXRATEx = 0, RXRATEx = 0)

Received Data Valid Time to RXCLK when RXCKSELx  1

5UI – 2.53^[26]

10UI – 5.86^[26]

1.4

ns

%

(TXRATEx = 0, RXRATEx = 1)

Received Data Valid Time to RXCLK when RXCKSELx  1

(TXRATEx = 1)

t_REFxDV+

Received Data Valid Time from RXCLK when RXCKSELx  1

(TXRATEx = 0, RXRATEx = 0)

Received Data Valid Time from RXCLK when RXCKSELx  1

(TXRATEx = 0, RXRATEx = 1)

5UI – 1.83^[26]

1.0^[26]

Received Data Valid Time from RXCLK when RXCKSELx  1

(TXRATEx = 1)

[27]

t_REFRX

REFCLKx Frequency Referenced to Received Clock Period

–0.15

+0.15

Bus Configuration Write Timing Characteristics Over the Operating Range

t_DATAH

t_DATAS

t_WRENP

Bus Configuration Data Hold

0

ns

Bus Configuration Data Set-up

Bus Configuration WREN Pulse Width

10

JTAG Test Clock Characteristics Over the Operating Range

f_TCLK

t_TCLK

JTAG Test Clock Frequency

JTAG Test Clock Period

20

MHz

ns

50

30

Device RESET Characteristics Over the Operating Range

t_RSTDevice RESET Pulse Width

Transmit Serial Outputs and TX PLL Characteristics Over the Operating Range

Parameter Description Condition

ns

Min.

Max.

Unit

t_B

Bit Time

5128

666

ps

Notes

25. Since this timing parameter is greater than the minimum time period of REFCLK it sets an upper limit to the frequency in which REFCLKx can be used to clock

the receive data out of the output register. For predictable timing, users can use this parameter only if REFCLK period is greater than sum of t

and set-up

RREFDA

time of the upstream device. When this condition is not true, RXCLKx± (a buffered or divided version of REFCLK when RXCKSELx = 1) could be used to clock

the receive data out of the device.

26. Measured using a 50% duty cycle reference clock.

27. REFCLKx has no phase or frequency relationship with the recovered clock and only acts as a centering reference to reduce clock synchronization time. REFCLKx

must be within ±1500 ppm (±0.15%) of the remote transmitter’s PLL reference (REFCLKx) frequency. Although transmitting to a HOTLink II receiver channel

necessitates the frequency difference between the transmitter and receiver reference clocks to be within ±1500 ppm, the stability of the crystal needs to be

within the limits specified by the appropriate standard when transmitting to a remote receiver that is compliant to that standard. For example, to be IEEE 802.3z

Gigabit Ethernet compliant, the frequency stability of the crystal needs to be within ±100 ppm.l.

Document #: 38-02065 Rev. *I

Page 32 of 48

CYP15G0403DXB

AC Electrical Characteristics (continued)

Parameter

Description

Min.

60

Max

270

500

1000

270

500

1000

27

Unit

ps

[17]

t_RISE

CML Output Rise Time 2080% (CML Test Load) SPDSELx = HIGH

SPDSELx = MID

SPDSELx =LOW

100

180

60

[17]

t_FALL

CML Output Fall Time 8020% (CML Test Load)

SPDSELx = HIGH

SPDSELx = MID

SPDSELx =LOW

IEEE 802.3z

100

180

[17, 28, 30]

[17, 29, 30]

[17]

t_DJ

Deterministic Jitter (peak-peak)^[31]

Random Jitter ()^[31]

t_RJ

IEEE 802.3z

11

t_REFJ

REFCLKx jitter tolerance / Phase noise limits

TBD

200

t_TXLOCK

Transmit PLLx lock to REFCLKx±

s

Receive Serial Inputs and CDR PLL Characteristics Over the Operating Range

t_RXLOCK

Receive PLL lock to input data stream (cold start)

Receive PLL lock to input data stream

Receive PLL Unlock Rate

Total Jitter Tolerance^[31]

Deterministic Jitter Tolerance^[31]

376k

46

UI

ps

t_RXUNLOCK

[17]

t_JTOL

IEEE 802.3z

600

370

[17]

t_DJTOL

Capacitance^[17]

Parameter

C_INTTL

Description

Test Conditions

Max.

Unit

TTL Input Capacitance

PECL input Capacitance

T_A= 25°C, f₀= 1 MHz, V_CC= 3.3V

7

4

pF

C_INPECL

Notes

28. While sending continuous K28.5s, outputs loaded to a balanced 100 load, measured at the cross point of differential outputs, over the operating range.

29. While sending continuous K28.7s, after 100,000 samples measured at the cross point of differential outputs, time referenced to REFCLKx± input, over the operating

range.

30. Total jitter is calculated at an assumed BER of 1E 12. Hence: Total Jitter (t ) = (t * 14) + t .

DJ

J

RJ

31. Also meets all Jitter Generation and Jitter Tolerance requirements as specified by ESCON, FICON, Fibre Channel, and DVB-ASI.

Document #: 38-02065 Rev. *I

Page 33 of 48

CYP15G0403DXB

HOTLink II Transmitter Switching Waveforms

t

TXCLK

Transmit Interface

Write Timing

TXCLKx selected

t

TXCLKL

TXCLKH

TXCLKx

t

TXDH

TXDS

TXDx[7:0],

TXCTx[1:0],

Transmit Interface

Write Timing

REFCLKx selected

TXRATEx = 0

t

REFCLK

t

REFL

REFH

REFCLKx

t

TREFDS

TREFDH

TXDx[7:0],

TXCTx[1:0],

Transmit Interface

Write Timing

REFCLKx selected

TXRATEx = 1

t

REFCLK

t

REFL

REFH

REFCLKx

Note 32

t

TREFDS

t

TREFDH

TREFDS

TREFDH

TXDx[7:0],

TXCTx[1:0],

Transmit Interface

TXCLKOx Timing

t_REFCLK

t_REFH

t_REFL

TXRATEx = 1

REFCLKx

Note 33

t_TXCLKO

Note 34

TXCLKOx

(internal)

Notes

32. When REFCLKx± is configured for half-rate operation (TXRATE = 1) and data is captured using REFCLKx instead of a TXCLKx clock. Data is captured using

both the rising and falling edges of REFCLKx.

33. The TXCLKOx output remains at the character rate regardless of the state of TXRATE and does not follow the duty cycle of REFCLKx±.

34. The rising edge of TXCLKOx output has no direct phase relationship to the REFCLKx± input.

Document #: 38-02065 Rev. *I

Page 34 of 48

CYP15G0403DXB

HOTLink II Transmitter Switching Waveforms (continued)

Transmit Interface

TXCLKOx Timing

t

REFCLK

t

REFH

REFL

TXRATEx = 0

Note33

REFCLKx

t

TXCLKO

t

TXOL

TXOH

Note34

TXCLKOx

Switching Waveforms for the HOTLink II Receiver

Receive Interface

t_REFCLK

Read Timing

REFCLKx Selected

Full-rate RXCLKx±

t_REFH

t

REFL

REFCLKx

t

RREFDA

t

RREFDW

RXDx[7:0],

RXSTx[2:0],

[36]

TXERRx

t

REFxDV+

t

REFxDV

–

RXCLKx

Receive Interface

Read Timing

REFCLKx Selected

Half-rate RXCLKx±

t_REFCLK

t_REFH

t

REFL

REFCLKx

t

RREFDA

t

RREFDW

t

RREFDW

RREFDA

RXDx[7:0],

RXSTx[2:0],

[36]

TXERRx

t

REFxDV+

t

REFxDV

–

Note 35

RXCLKx

Notes

35. When operated with a half-rate REFCLKx±, the set-up and hold specifications for data relative to RXCLKx are relative to both rising and falling edges of the

respective clock output

36. TXERRx is synchronous to RXCLKx only when RXCLKx is selected as REFCLK.

Document #: 38-02065 Rev. *I

Page 35 of 48

CYP15G0403DXB

Switching Waveforms for the HOTLink II Receiver

Receive Interface

t_RXCLKP

Read Timing

Recovered Clock selected

RXRATEx = 0

RXCLKx+

RXCLKx–

RXDx[7:0],

RXSTx[2:0],

t

RXDV

–

t

RXDV+

Receive Interface

Read Timing

Recovered Clock selected

RXRATEx = 1

t_RXCLKP

RXCLKx+

RXCLKx–

t

RXDV

–

RXDx[7:0],

RXSTx[2:0]

t

RXDV+

Bus Configuration

Write Timing

ADDR[3:0]

DATA[7:0]

t_WRENP

t_DATAS

WREN

t_DATAH

Document #: 38-02065 Rev. *I

Page 36 of 48

CYP15G0403DXB

Table 12. Package Coordinate Signal Allocation

Ball

ID

Ball

ID

Ball

ID

Signal Name

Signal Type

Signal Name

Signal Type

Signal Name

Signal Type

A01

A02

A03

A04

A05

A06

A07

A08

A09

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

B01

B02

B03

B04

B05

B06

B07

B08

B09

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

C01

C02

C03

C04

C05

C06

INC1–

OUTC1–

INC2–

OUTC2–

VCC

CML IN

CML OUT

CML IN

C07

C08

C09

C10

C11

C12

C13

C14

C15

C16

C17

C18

C19

C20

D01

D02

D03

D04

D05

D06

D07

D08

D09

D10

D11

D12

D13

D14

D15

D16

D17

D18

D19

D20

E01

E02

E03

E04

E17

E18

E19

E20

F01

F02

F03

F04

ULCC

GND

LVTTL IN PU

GROUND

F17

F18

F19

F20

G01

G02

G03

G04

G17

G18

G19

G20

H01

H02

H03

H04

H17

H18

H19

H20

J01

J02

J03

J04

J17

J18

J19

J20

K01

K02

K03

K04

K17

K18

K19

K20

L01

L02

L03

L04

L17

L18

L19

L20

M01

M02

NC

RXSTB[1]

TXCLKOB

RXSTB[0]

TXDC[7]

WREN

NO CONNECT

LVTTL OUT

LVTTL IN

DATA[7]

DATA[5]

DATA[3]

DATA[1]

GND

LVTTL IN PU

GROUND

CML OUT

POWER

CML IN

IND1–

OUTD1–

GND

LVTTL IN PU

LVTTL IN

CML OUT

GROUND

CML IN

TXDC[4]

TXDC[1]

SPDSELB

LPENC

NC

NO CONNECT

3-LEVEL SEL

POWER

LVTTL IN

IND2–

OUTD2–

INA1–

SPDSELD

VCC

3-LEVEL SEL

LVTTL IN PD

3-LEVEL SEL

LVTTL OUT

GROUND

CML OUT

CML IN

LDTDEN

TRST

LVTTL IN PU

LVTTL IN PD

LVTTL 3-S OUT

LVTTL IN PD

LVTTL IN PU

LVTTL IN

SPDSELA

RXDB[1]

GND

OUTA1–

GND

CML OUT

GROUND

CML IN

LPEND

TDO

INA2–

GND

GROUND

OUTA2–

VCC

CML OUT

POWER

CML IN

TCLK

GND

GROUND

RESET

INSELD

INSELA

VCC

GND

GROUND

INB1–

GND

GROUND

OUTB1–

INB2–

CML OUT

CML IN

LVTTL IN

GND

GROUND

POWER

GND

GROUND

OUTB2–

INC1+

OUTC1+

INC2+

OUTC2+

VCC

CML OUT

CML IN

ULCA

LVTTL IN PU

3-LEVEL SEL

GROUND

GND

GROUND

SPDSELC

GND

TXCTC[1]

TXDC[5]

TXDC[2]

TXDC[3]

RXSTB[2]

RXDB[0]

RXDB[5]

RXDB[2]

RXDC[2]

REFCLKC–

TXCTC[0]

TXCLKC

RXDB[3]

RXDB[4]

RXDB[7]

LFIB

LVTTL IN

CML OUT

CML IN

LVTTL IN

DATA[6]

DATA[4]

DATA[2]

DATA[0]

GND

LVTTL IN PU

GROUND

LVTTL IN

CML OUT

POWER

CML IN

LVTTL IN

LVTTL OUT

PECL IN

IND1+

OUTD1+

GND

CML OUT

GROUND

CML IN

LPENB

ULCB

LVTTL IN PD

LVTTL IN PU

POWER

IND2+

OUTD2+

INA1+

OUTA1+

GND

CML OUT

CML IN

VCC

LPENA

LTEN1

SCANEN2

TMEN3

VCC

LVTTL IN PD

POWER

LVTTL IN

CML OUT

GROUND

CML IN

LVTTL IN PD

LVTTL OUT

PECL IN

INA2+

OUTA2+

VCC

CML OUT

POWER

CML IN

VCC

POWER

INB1+

OUTB1+

INB2+

OUTB2+

TDI

VCC

POWER

RXDC[3]

REFCLKC+

LFIC

CML OUT

CML IN

VCC

POWER

VCC

POWER

LVTTL OUT

LVTTL IN

CML OUT

LVTTL IN PU

LVTTL IN

POWER

LVTTL IN PU

VCC

POWER

TXDC[6]

RXDB[6]

RXCLKB+

RXCLKB–

TXDB[6]

RXDC[4]

RXDC[5]

VCC

POWER

LVTTL OUT

LVTTL IN

TMS

VCC

POWER

INSELC

INSELB

VCC

RXDC[6]

RXDC[7]

TXDC[0]

NC

LVTTL OUT

LVTTL IN

LVTTL OUT

ULCD

NO CONNECT

Document #: 38-02065 Rev. *I

Page 37 of 48

CYP15G0403DXB

Table 12. Package Coordinate Signal Allocation (continued)

Ball

ID

Ball

ID

Ball

ID

Signal Name

Signal Type

Signal Name

Signal Type

Signal Name

Signal Type

M03

M04

NC

NO CONNECT

LVTTL OUT

PECL IN

U03

U04

U05

U06

U07

U08

U09

U10

U11

U12

U13

U14

U15

U16

U17

U18

U19

U20

V01

V02

V03

V04

V05

V06

V07

V08

V09

V10

V11

V12

V13

V14

V15

V16

V17

V18

V19

V20

W01

W02

TXDD[2]

TXCTD[1]

VCC

LVTTL IN

W03

W04

W05

W06

W07

W08

W09

W10

W11

W12

W13

W14

W15

W16

W17

LFID

RXCLKD–

VCC

LVTTL OUT

POWER

TXERRC

M17 REFCLKB+

M18 REFCLKB–

POWER

PECL IN

RXDD[2]

RXDD[1]

GND

LVTTL OUT

GROUND

LVTTL IN

RXDD[4]

RXSTD[1]

GND

LVTTL OUT

GROUND

M19

M20

N01

N02

N03

N04

N17

N18

N19

N20

P01

P02

P03

P04

P17

P18

P19

P20

R01

R02

R03

R04

R17

R18

R19

R20

T01

T02

T03

T04

T17

T18

T19

T20

U01

U02

TXERRB

TXCLKB

GND

LVTTL OUT

LVTTL IN PD

GROUND

LVTTL OUT

LVTTL IN

LVTTL OUT

LVTTL IN

POWER

TXCTA[1]

ADDR [0]

REFCLKD–

TXDA[1]

GND

ADDR [3]

ADDR [1]

RXCLKA+

TXERRA

GND

LVTTL IN PU

LVTTL OUT

GROUND

GND

LVTTL IN PU

PECL IN

GND

LVTTL IN

GND

GROUND

LVTTL IN

GND

TXDA[4]

TXCTA[0]

VCC

TXDA[2]

TXDA[6]

VCC

LVTTL IN

GND

LVTTL IN

GND

POWER

RXDC[1]

RXDC[0]

RXSTC[0]

RXSTC[1]

TXDB[5]

TXDB[4]

TXDB[3]

TXDB[2]

RXSTC[2]

TXCLKOC

RXCLKC+

RXCLKC–

TXDB[1]

TXDB[0]

TXCTB[1]

TXDB[7]

VCC

RXDA[2]

TXCTB[0]

RXSTA[2]

RXSTA[1]

TXDD[3]

TXDD[4]

TXCTD[0]

RXDD[6]

VCC

LVTTL OUT

LVTTL IN

LFIA

LVTTL OUT

PECL IN

W18 REFCLKA+

LVTTL OUT

LVTTL IN

W19

W20

Y01

Y02

Y03

Y04

Y05

Y06

Y07

Y08

Y09

Y10

Y11

Y12

Y13

Y14

Y15

Y16

Y17

Y18

Y19

Y20

RXDA[4]

RXDA[1]

TXDD[6]

TXCLKD

RXDD[7]

RXCLKD+

VCC

LVTTL OUT

LVTTL IN

LVTTL IN PD

LVTTL OUT

POWER

LVTTL IN

LVTTL OUT

POWER

RXDD[3]

RXSTD[0]

GND

LVTTL OUT

GROUND

LVTTL OUT

LVTTL IN PU

PECL IN

RXDD[5]

RXDD[0]

GND

LVTTL OUT

GROUND

RXSTD[2]

ADDR [2]

REFCLKD+

TXCLKOA

GND

TXCLKOD

NC

LVTTL OUT

NO CONNECT

LVTTL IN PD

LVTTL OUT

GROUND

TXCLKA

RXCLKA–

GND

LVTTL OUT

GROUND

LVTTL IN

VCC

POWER

TXDA[3]

TXDA[7]

VCC

TXDA[0]

TXDA[5]

VCC

LVTTL IN

VCC

POWER

LVTTL IN

VCC

POWER

VCC

POWER

RXDA[7]

RXDA[3]

RXDA[0]

RXSTA[0]

TXDD[5]

TXDD[7]

LVTTL OUT

LVTTL IN

TXERRD

REFCLKA–

RXDA[6]

RXDA[5]

LVTTL OUT

PECL IN

VCC

POWER

VCC

POWER

LVTTL OUT

VCC

POWER

TXDD[0]

TXDD[1]

LVTTL IN

Document #: 38-02065 Rev. *I

Page 38 of 48

CYP15G0403DXB

c is set to D, xx is the decimal value of the binary number

composed of the bits E, D, C, B, and A in that order, and the y is

the decimal value of the binary number composed of the bits H,

G, and F in that order. When c is set to K, xx and y are derived

by comparing the encoded bit patterns of the Special Character

to those patterns derived from encoded Valid Data bytes and

selecting the names of the patterns most similar to the encoded

bit patterns of the Special Character.

X3.230 Codes and Notation Conventions

Information transmitted over a serial link is encoded eight bits at

a time into a 10-bit Transmission Character and then sent

serially, bit by bit. Information received over a serial link is

collected ten bits at a time, and those Transmission Characters

that are used for data characters are decoded into the correct

eight-bit codes. The 10-bit Transmission Code supports all 256

8-bit combinations. Some of the remaining Transmission

Characters (Special Characters) are used for functions other

than data transmission.

Under the above conventions, the Transmission Character used

for the examples above, is referred to by the name D5.2. The

Special Character K29.7 is so named because the first six bits

(abcdei) of this character make up a bit pattern similar to that

resulting from the encoding of the unencoded 11101 pattern (29),

and because the second four bits (fghj) make up a bit pattern

similar to that resulting from the encoding of the unencoded 111

pattern (7).

The primary use of a Transmission Code is to improve the trans-

mission characteristics of a serial link. The encoding defined by

the Transmission Code ensures that sufficient transitions are

present in the serial bit stream to make clock recovery possible

at the Receiver. Such encoding also greatly increases the

likelihood of detecting any single or multiple bit errors that may

occur during transmission and reception of information. In

addition, some Special Characters of the Transmission Code

selected by Fibre Channel Standard contain a distinct and easily

recognizable bit pattern that assists the receiver in achieving

character alignment on the incoming bit stream.

Note. This definition of the 10-bit Transmission Code is based

on the following references, which describe the same 10-bit

transmission code.

A.X. Widmer and P.A. Franaszek. “A DC-Balanced, Parti-

tioned-Block, 8B/10B Transmission Code” IBM Journal of

Research and Development, 27, No. 5: 440-451 (September, 1983).

Notation Conventions

U.S. Patent 4,486,739. Peter A. Franaszek and Albert X.

Widmer. “Byte-Oriented DC Balanced (0.4) 8B/10B Partitioned

Block Transmission Code” (December 4, 1984).

The documentation for the 8B/10B Transmission Code uses

letter notation for the bits in an 8-bit byte. Fibre Channel Standard

notation uses a bit notation of A, B, C, D, E, F, G, H for the 8-bit

byte for the raw 8-bit data, and the letters a, b, c, d, e, i, f, g, h, j

for encoded 10-bit data. There is a correspondence between bit

A and bit a, B and b, C and c, D and d, E and e, F and f, G and

g, and H and h. Bits i and j are derived, respectively, from

(A,B,C,D,E) and (F,G,H).

Fibre Channel Physical and Signaling Interface (ANS

X3.230-1994 ANSI FC-PH Standard).

IBM Enterprise Systems Architecture/390 ESCON I/O Interface

(document number SA22-7202).

8B/10B Transmission Code

The bit labeled A in the description of the 8B/10B Transmission

Code corresponds to bit 0 in the numbering scheme of the FC-2

specification, B corresponds to bit 1, as shown below.

FC-2 bit designation—76543210

HOTLink D/Q designation—76543210

8B/10B bit designation—HGFEDCBA

The following information describes how the tables are used for

both generating valid Transmission Characters (encoding) and

checking the validity of received Transmission Characters

(decoding). It also specifies the ordering rules followed when

transmitting the bits within a character and the characters within

any higher-level constructs specified by a standard.

To clarify this correspondence, the following example shows the

conversion from an FC-2 Valid Data Byte to a Transmission

Character.

Transmission Order

Within the definition of the 8B/10B Transmission Code, the bit

positions of the Transmission Characters are labeled a, b, c, d,

e, i, f, g, h, j. Bit “a” is transmitted first followed by bits b, c, d, e,

i, f, g, h, and j in that order.

FC-2 45H

Bits: 7654 3210

0100 0101

Note that bit i is transmitted between bit e and bit f, rather than

in alphabetical order.

Converted to 8B/10B notation, note that the order of bits has

been reversed):

Data Byte Name D5.2

Bits: ABCDE FGH

10100 010

Valid and Invalid Transmission Characters

The following tables define the valid Data Characters and valid

Special Characters (K characters), respectively. The tables are

used for both generating valid Transmission Characters and

checking the validity of received Transmission Characters. In the

tables, each Valid-Data-byte or Special-Character-code entry

has two columns that represent two Transmission Characters.

The two columns correspond to the current value of the running

disparity. Running disparity is a binary parameter with either a

negative (–) or positive (+) value.

Translated to a transmission Character in the 8B/10B Trans-

mission Code:

Bits: abcdei fghj

101001 0101

Each valid Transmission Character of the 8B/10B Transmission

Code has been given a name using the following convention:

cxx.y, where c is used to show whether the Transmission

Character is a Data Character (c is set to D, and SC/D = LOW)

or a Special Character (c is set to K, and SC/D = HIGH). When

After powering on, the Transmitter may assume either a positive

or negative value for its initial running disparity. Upon trans-

mission of any Transmission Character, the transmitter selects

Document #: 38-02065 Rev. *I

Page 39 of 48

CYP15G0403DXB

the proper version of the Transmission Character based on the

current running disparity value, and the Transmitter calculates a

new value for its running disparity based on the contents of the

transmitted character. Special Character codes C1.7 and C2.7

can be used to force the transmission of a specific Special

Character with a specific running disparity as required for some

special sequences in X3.230.

Character transmitted, a new value of the running disparity is

calculated. This new value is used as the Transmitter’s current

running disparity for the next Valid Data byte or Special

Character byte encoded and transmitted. Table 13 shows

naming notations and examples of valid transmission

characters.

Use of the Tables for Checkingthe Validity ofReceived

Transmission Characters

After powering on, the Receiver may assume either a positive or

negative value for its initial running disparity. Upon reception of

any Transmission Character, the Receiver decides whether the

Transmission Character is valid or invalid according to the

following rules and tables and calculates a new value for its

Running Disparity based on the contents of the received

character.

The column corresponding to the current value of the Receiver’s

running disparity is searched for the received Transmission

Character. If the received Transmission Character is found in the

proper column, then the Transmission Character is valid and the

associated Data byte or Special Character code is determined

(decoded). If the received Transmission Character is not found

in that column, then the Transmission Character is invalid. This

is called a code violation. Independent of the Transmission

Character’s validity, the received Transmission Character is

used to calculate a new value of running disparity. The new value

is used as the Receiver’s current running disparity for the next

received Transmission Character.

The following rules for running disparity are used to calculate the

new running-disparity value for Transmission Characters that

have been transmitted and received.

Running disparity for a Transmission Character is calculated

from sub-blocks, where the first six bits (abcdei) form one

sub-block and the second four bits (fghj) form the other

sub-block. Running disparity at the beginning of the 6-bit

sub-block is the running disparity at the end of the previous

Transmission Character. Running disparity at the beginning of

the 4-bit sub-block is the running disparity at the end of the 6-bit

sub-block. Running disparity at the end of the Transmission

Character is the running disparity at the end of the 4-bit

sub-block.

Table 13. Valid Transmission Characters

Data

D_INor Q_OUT

Byte Name

Hex Value

765

000

43210

00000

00001

00010

D0.0

D1.0

D2.0

00

01

02

Running disparity for the sub-blocks is calculated as follows:

1. Running disparity at the end of any sub-block is positive if the

sub-block contains more ones than zeros. It is also positive at

the end of the 6-bit sub-block if the 6-bit sub-block is 000111,

and it is positive at the end of the 4-bit sub-block if the 4-bit

sub-block is 0011.

.

2. Running disparity at the end of any sub-block is negative if the

sub-block contains more zeros than ones. It is also negative

at the end of the 6-bit sub-block if the 6-bit sub-block is

111000, and it is negative at the end of the 4-bit sub-block if

the 4-bit sub-block is 1100.

D5.2

010

00101

45

.

D30.7

D31.7

111

11110

11111

FE

FF

3. Otherwise, running disparity at the end of the sub-block is the

same as at the beginning of the sub-block.

Detection of a code violation does not necessarily show that the

Transmission Character in which the code violation was detected

is in error. Code violations may result from a prior error that

altered the running disparity of the bit stream which did not result

in a detectable error at the Transmission Character in which the

error occurred. Table 14 shows an example of this behavior.

Use of the Tables for Generating Transmission

Characters

The appropriate entry in Table 15 for the Valid Data byte or

Table 16 for Special Character byte identify which Transmission

Character is generated. The current value of the Transmitter’s

running disparity is used to select the Transmission Character

from its corresponding column. For each Transmission

Table 14. Code Violations Resulting from Prior Errors

RD

–

Character

D21.1

RD

–

Character

D10.2

RD

–

Character

D23.5

RD

+

Transmitted data character

Transmitted bit stream

Bit stream after error

–

101010 1001

101010 1011

D21.0

–

010101 0101

D10.2

–

111010 1010

Code Violation

+

–

+

Decoded data character

–

+

Document #: 38-02065 Rev. *I

Page 40 of 48

CYP15G0403DXB

Table 15. Valid Data Characters (TXCTx[0] = 0, RXSTx[2:0] = 000)

Data

Byte

Data

Byte

Name HGF EDCBA

Bits

Current RD

Current RD+

abcdei fghj

Bits

Current RD

abcdei fghj

Current RD+

abcdei fghj

Name HGF EDCBA

abcdei fghj

D0.0

D1.0

000 00000

000 00001

000 00010

000 00011

000 00100

000 00101

000 00110

000 00111

000 01000

000 01001

000 01010

000 01011

000 01100

000 01101

000 01110

000 01111

000 10000

000 10001

000 10010

000 10011

000 10100

000 10101

000 10110

000 10111

000 11000

000 11001

000 11010

000 11011

000 11100

000 11101

000 11110

000 11111

100111 0100 011000 1011

011101 0100 100010 1011

101101 0100 010010 1011

110001 1011 110001 0100

110101 0100 001010 1011

101001 1011 101001 0100

011001 1011 011001 0100

111000 1011 000111 0100

111001 0100 000110 1011

100101 1011 100101 0100

010101 1011 010101 0100

110100 1011 110100 0100

001101 1011 001101 0100

101100 1011 101100 0100

011100 1011 011100 0100

010111 0100 101000 1011

011011 0100 100100 1011

100011 1011 100011 0100

010011 1011 010011 0100

110010 1011 110010 0100

001011 1011 001011 0100

101010 1011 101010 0100

011010 1011 011010 0100

111010 0100 000101 1011

110011 0100 001100 1011

100110 1011 100110 0100

010110 1011 010110 0100

110110 0100 001001 1011

001110 1011 001110 0100

101110 0100 010001 1011

011110 0100 100001 1011

101011 0100 010100 1011

D0.1

D1.1

001 00000

001 00001

001 00010

001 00011

001 00100

001 00101

001 00110

001 00111

001 01000

001 01001

001 01010

001 01011

001 01100

001 01101

001 01110

001 01111

001 10000

001 10001

001 10010

001 10011

001 10100

001 10101

001 10110

001 10111

001 11000

001 11001

001 11010

001 11011

001 11100

001 11101

001 11110

001 11111

100111 1001 011000 1001

011101 1001 100010 1001

101101 1001 010010 1001

110001 1001 110001 1001

110101 1001 001010 1001

101001 1001 101001 1001

011001 1001 011001 1001

111000 1001 000111 1001

111001 1001 000110 1001

100101 1001 100101 1001

010101 1001 010101 1001

110100 1001 110100 1001

001101 1001 001101 1001

101100 1001 101100 1001

011100 1001 011100 1001

010111 1001 101000 1001

011011 1001 100100 1001

100011 1001 100011 1001

010011 1001 010011 1001

110010 1001 110010 1001

001011 1001 001011 1001

101010 1001 101010 1001

011010 1001 011010 1001

111010 1001 000101 1001

110011 1001 001100 1001

100110 1001 100110 1001

010110 1001 010110 1001

110110 1001 001001 1001

001110 1001 001110 1001

101110 1001 010001 1001

011110 1001 100001 1001

101011 1001 010100 1001

D2.0

D2.1

D3.0

D3.1

D4.0

D4.1

D5.0

D5.1

D6.0

D6.1

D7.0

D7.1

D8.0

D8.1

D9.0

D9.1

D10.0

D11.0

D12.0

D13.0

D14.0

D15.0

D16.0

D17.0

D18.0

D19.0

D20.0

D21.0

D22.0

D23.0

D24.0

D25.0

D26.0

D27.0

D28.0

D29.0

D30.0

D31.0

D10.1

D11.1

D12.1

D13.1

D14.1

D15.1

D16.1

D17.1

D18.1

D19.1

D20.1

D21.1

D22.1

D23.1

D24.1

D25.1

D26.1

D27.1

D28.1

D29.1

D30.1

D31.1

Document #: 38-02065 Rev. *I

Page 41 of 48

CYP15G0403DXB

Table 15. Valid Data Characters (TXCTx[0] = 0, RXSTx[2:0] = 000) (continued)

Data

Byte

Data

Byte

Bits

Current RD

Current RD+

abcdei fghj

Bits

Current RD

abcdei fghj

Current RD+

abcdei fghj

Name HGF EDCBA

abcdei fghj

Name HGF EDCBA

D0.2

D1.2

010 00000

010 00001

010 00010

010 00011

010 00100

010 00101

010 00110

010 00111

010 01000

010 01001

010 01010

010 01011

010 01100

010 01101

010 01110

010 01111

010 10000

010 10001

010 10010

010 10011

010 10100

010 10101

010 10110

010 10111

010 11000

010 11001

010 11010

010 11011

010 11100

010 11101

010 11110

010 11111

100111 0101 011000 0101

011101 0101 100010 0101

101101 0101 010010 0101

110001 0101 110001 0101

110101 0101 001010 0101

101001 0101 101001 0101

011001 0101 011001 0101

111000 0101 000111 0101

111001 0101 000110 0101

100101 0101 100101 0101

010101 0101 010101 0101

110100 0101 110100 0101

001101 0101 001101 0101

101100 0101 101100 0101

011100 0101 011100 0101

010111 0101 101000 0101

011011 0101 100100 0101

100011 0101 100011 0101

010011 0101 010011 0101

110010 0101 110010 0101

001011 0101 001011 0101

101010 0101 101010 0101

011010 0101 011010 0101

111010 0101 000101 0101

110011 0101 001100 0101

100110 0101 100110 0101

010110 0101 010110 0101

110110 0101 001001 0101

001110 0101 001110 0101

101110 0101 010001 0101

011110 0101 100001 0101

101011 0101 010100 0101

D0.3

D1.3

011 00000

011 00001

011 00010

011 00011

011 00100

011 00101

011 00110

011 00111

011 01000

011 01001

011 01010

011 01011

011 01100

011 01101

011 01110

011 01111

011 10000

011 10001

011 10010

011 10011

011 10100

011 10101

011 10110

011 10111

011 11000

011 11001

011 11010

011 11011

011 11100

011 11101

011 11110

011 11111

100111 0011 011000 1100

011101 0011 100010 1100

101101 0011 010010 1100

110001 1100 110001 0011

110101 0011 001010 1100

101001 1100 101001 0011

011001 1100 011001 0011

111000 1100 000111 0011

111001 0011 000110 1100

100101 1100 100101 0011

010101 1100 010101 0011

110100 1100 110100 0011

001101 1100 001101 0011

101100 1100 101100 0011

011100 1100 011100 0011

010111 0011 101000 1100

011011 0011 100100 1100

100011 1100 100011 0011

010011 1100 010011 0011

110010 1100 110010 0011

001011 1100 001011 0011

101010 1100 101010 0011

011010 1100 011010 0011

111010 0011 000101 1100

110011 0011 001100 1100

100110 1100 100110 0011

010110 1100 010110 0011

110110 0011 001001 1100

001110 1100 001110 0011

101110 0011 010001 1100

011110 0011 100001 1100

101011 0011 010100 1100

D2.2

D2.3

D3.2

D3.3

D4.2

D4.3

D5.2

D5.3

D6.2

D6.3

D7.2

D7.3

D8.2

D8.3

D9.2

D9.3

D10.2

D11.2

D12.2

D13.2

D14.2

D15.2

D16.2

D17.2

D18.2

D19.2

D20.2

D21.2

D22.2

D23.2

D24.2

D25.2

D26.2

D27.2

D28.2

D29.2

D30.2

D31.2

D10.3

D11.3

D12.3

D13.3

D14.3

D15.3

D16.3

D17.3

D18.3

D19.3

D20.3

D21.3

D22.3

D23.3

D24.3

D25.3

D26.3

D27.3

D28.3

D29.3

D30.3

D31.3

Document #: 38-02065 Rev. *I

Page 42 of 48

CYP15G0403DXB

Table 15. Valid Data Characters (TXCTx[0] = 0, RXSTx[2:0] = 000) (continued)

Data

Byte

Data

Byte

Bits

Current RD

Current RD+

abcdei fghj

Bits

Current RD

abcdei fghj

Current RD+

abcdei fghj

Name HGF EDCBA

abcdei fghj

Name HGF EDCBA

D0.4

D1.4

100 00000

100 00001

100 00010

100 00011

100 00100

100 00101

100 00110

100 00111

100 01000

100 01001

100 01010

100 01011

100 01100

100 01101

100 01110

100 01111

100 10000

100 10001

100 10010

100 10011

100 10100

100 10101

100 10110

100 10111

100 11000

100 11001

100 11010

100 11011

100 11100

100 11101

100 11110

100 11111

100111 0010 011000 1101

011101 0010 100010 1101

101101 0010 010010 1101

110001 1101 110001 0010

110101 0010 001010 1101

101001 1101 101001 0010

011001 1101 011001 0010

111000 1101 000111 0010

111001 0010 000110 1101

100101 1101 100101 0010

010101 1101 010101 0010

110100 1101 110100 0010

001101 1101 001101 0010

101100 1101 101100 0010

011100 1101 011100 0010

010111 0010 101000 1101

011011 0010 100100 1101

100011 1101 100011 0010

010011 1101 010011 0010

110010 1101 110010 0010

001011 1101 001011 0010

101010 1101 101010 0010

011010 1101 011010 0010

111010 0010 000101 1101

110011 0010 001100 1101

100110 1101 100110 0010

010110 1101 010110 0010

110110 0010 001001 1101

001110 1101 001110 0010

101110 0010 010001 1101

011110 0010 100001 1101

101011 0010 010100 1101

D0.5

D1.5

101 00000

101 00001

101 00010

101 00011

101 00100

101 00101

101 00110

101 00111

101 01000

101 01001

101 01010

101 01011

101 01100

101 01101

101 01110

101 01111

101 10000

101 10001

101 10010

101 10011

101 10100

101 10101

101 10110

101 10111

101 11000

101 11001

101 11010

101 11011

101 11100

101 11101

101 11110

101 11111

100111 1010 011000 1010

011101 1010 100010 1010

101101 1010 010010 1010

110001 1010 110001 1010

110101 1010 001010 1010

101001 1010 101001 1010

011001 1010 011001 1010

111000 1010 000111 1010

111001 1010 000110 1010

100101 1010 100101 1010

010101 1010 010101 1010

110100 1010 110100 1010

001101 1010 001101 1010

101100 1010 101100 1010

011100 1010 011100 1010

010111 1010 101000 1010

011011 1010 100100 1010

100011 1010 100011 1010

010011 1010 010011 1010

110010 1010 110010 1010

001011 1010 001011 1010

101010 1010 101010 1010

011010 1010 011010 1010

111010 1010 000101 1010

110011 1010 001100 1010

100110 1010 100110 1010

010110 1010 010110 1010

110110 1010 001001 1010

001110 1010 001110 1010

101110 1010 010001 1010

011110 1010 100001 1010

101011 1010 010100 1010

D2.4

D2.5

D3.4

D3.5

D4.4

D4.5

D5.4

D5.5

D6.4

D6.5

D7.4

D7.5

D8.4

D8.5

D9.4

D9.5

D10.4

D11.4

D12.4

D13.4

D14.4

D15.4

D16.4

D17.4

D18.4

D19.4

D20.4

D21.4

D22.4

D23.4

D24.4

D25.4

D26.4

D27.4

D28.4

D29.4

D30.4

D31.4

D10.5

D11.5

D12.5

D13.5

D14.5

D15.5

D16.5

D17.5

D18.5

D19.5

D20.5

D21.5

D22.5

D23.5

D24.5

D25.5

D26.5

D27.5

D28.5

D29.5

D30.5

D31.5

Document #: 38-02065 Rev. *I

Page 43 of 48

CYP15G0403DXB

Table 15. Valid Data Characters (TXCTx[0] = 0, RXSTx[2:0] = 000) (continued)

Data

Byte

Data

Byte

Bits

Current RD

Current RD+

abcdei fghj

Bits

Current RD

abcdei fghj

Current RD+

abcdei fghj

Name HGF EDCBA

abcdei fghj

Name HGF EDCBA

D0.6

D1.6

110 00000

110 00001

110 00010

110 00011

110 00100

110 00101

110 00110

110 00111

110 01000

110 01001

110 01010

110 01011

110 01100

110 01101

110 01110

110 01111

110 10000

110 10001

110 10010

110 10011

110 10100

110 10101

110 10110

110 10111

110 11000

110 11001

110 11010

110 11011

110 11100

110 11101

110 11110

110 11111

100111 0110 011000 0110

011101 0110 100010 0110

101101 0110 010010 0110

110001 0110 110001 0110

110101 0110 001010 0110

101001 0110 101001 0110

011001 0110 011001 0110

111000 0110 000111 0110

111001 0110 000110 0110

100101 0110 100101 0110

010101 0110 010101 0110

110100 0110 110100 0110

001101 0110 001101 0110

101100 0110 101100 0110

011100 0110 011100 0110

010111 0110 101000 0110

011011 0110 100100 0110

100011 0110 100011 0110

010011 0110 010011 0110

110010 0110 110010 0110

001011 0110 001011 0110

101010 0110 101010 0110

011010 0110 011010 0110

111010 0110 000101 0110

110011 0110 001100 0110

100110 0110 100110 0110

010110 0110 010110 0110

110110 0110 001001 0110

001110 0110 001110 0110

101110 0110 010001 0110

011110 0110 100001 0110

101011 0110 010100 0110

D0.7

D1.7

111 00000

111 00001

111 00010

111 00011

111 00100

111 00101

111 00110

111 00111

111 01000

111 01001

111 01010

111 01011

111 01100

111 01101

111 01110

111 01111

111 10000

111 10001

111 10010

111 10011

111 10100

111 10101

111 10110

111 10111

111 11000

111 11001

111 11010

111 11011

111 11100

111 11101

111 11110

111 11111

100111 0001 011000 1110

011101 0001 100010 1110

101101 0001 010010 1110

110001 1110 110001 0001

110101 0001 001010 1110

101001 1110 101001 0001

011001 1110 011001 0001

111000 1110 000111 0001

111001 0001 000110 1110

100101 1110 100101 0001

010101 1110 010101 0001

110100 1110 110100 1000

001101 1110 001101 0001

101100 1110 101100 1000

011100 1110 011100 1000

010111 0001 101000 1110

011011 0001 100100 1110

100011 0111 100011 0001

010011 0111 010011 0001

110010 1110 110010 0001

001011 0111 001011 0001

101010 1110 101010 0001

011010 1110 011010 0001

111010 0001 000101 1110

110011 0001 001100 1110

100110 1110 100110 0001

010110 1110 010110 0001

110110 0001 001001 1110

001110 1110 001110 0001

101110 0001 010001 1110

011110 0001 100001 1110

101011 0001 010100 1110

D2.6

D2.7

D3.6

D3.7

D4.6

D4.7

D5.6

D5.7

D6.6

D6.7

D7.6

D7.7

D8.6

D8.7

D9.6

D9.7

D10.6

D11.6

D12.6

D13.6

D14.6

D15.6

D16.6

D17.6

D18.6

D19.6

D20.6

D21.6

D22.6

D23.6

D24.6

D25.6

D26.6

D27.6

D28.6

D29.6

D30.6

D31.6

D10.7

D11.7

D12.7

D13.7

D14.7

D15.7

D16.7

D17.7

D18.7

D19.7

D20.7

D21.7

D22.7

D23.7

D24.7

D25.7

D26.7

D27.7

D28.7

D29.7

D30.7

D31.7

Document #: 38-02065 Rev. *I

Page 44 of 48

CYP15G0403DXB

Table 16. Valid Special Character Codes and Sequences (TXCTx = special character code or RXSTx[2:0] = 001)^{[37, 38]}

S.C. Byte Name

Cypress

Alternate

Current RD

abcdei fghj

Current RD+

abcdei fghj

S.C. Code Name

S.C. Byte Name

Bits

S.C. Byte Name

Bits

[39]

HGF EDCBA

K28.0

C0.0

C1.0

C2.0

C3.0

C4.0

C5.0

C6.0

C7.0

C8.0

C9.0

(C00)

(C01)

(C02)

(C03)

(C04)

(C05)

(C06)

(C07)

(C08)

(C09)

000 00000

000 00001

000 00010

000 00011

000 00100

000 00101

000 00110

000 00111

000 01000

000 01001

000 01010

000 01011

C28.0 (C1C)

C28.1 (C3C)

C28.2 (C5C)

C28.3 (C7C)

C28.4 (C9C)

C28.5 (CBC)

C28.6 (CDC)

C28.7 (CFC)

C23.7 (CF7)

C27.7 (CFB)

C29.7 (CFD)

C30.7 (CFE)

000 11100

001 11100

010 11100

011 11100

100 11100

101 11100

110 11100

111 11100

111 10111

111 11011

111 11101

111 11110

001111 0100

001111 1001

001111 0101

001111 0011

001111 0010

001111 1010

001111 0110

001111 1000

111010 1000

110110 1000

101110 1000

011110 1000

110000 1011

110000 0110

110000 1010

110000 1100

110000 1101

110000 0101

110000 1001

110000 0111

000101 0111

001001 0111

010001 0111

100001 0111

K28.1^[40]

K28.2^[40]

K28.3

K28.4^[40]

K28.5^{[40, 41]}

K28.6^[40]

K28.7^{[40, 42]}

K23.7

K27.7

K29.7

C10.0 (C0A)

C11.0 (C0B)

K30.7

End of Frame Sequence

EOFxx C2.1

(C22)

001 00010

C2.1

(C22)

001 00010

K28.5,Dn.xxx0^[43]+K28.5,Dn.xxx1^[43]

Code Rule Violation and SVS Tx Pattern

Exception^{[42, 44]}

K28.5^[45]

+K28.5^[46]

C0.7

C1.7

C2.7

(CE0)

(CE1)

(CE2)

111 00000

111 00001

111 00010

C0.7

C1.7

C2.7

(CE0)

(CE1)

(CE2)

111 00000

111 00001

111 00010

100111 1000

001111 1010

110000 0101

011000 0111

001111 1010

110000 0101

Running Disparity Violation Pattern

Exception^[47]

C4.7

(CE4)

111 00100

C4.7

(CE4)

111 00100

110111 0101

001000 1010

Notes

37. All codes not shown are reserved.

38. Notation for Special Character Code Name is consistent with Fibre Channel and ESCON naming conventions. Special Character Code Name is intended to

describe binary information present on I/O pins. Common usage for the name can either be in the form used for describing Data patterns (i.e., C0.0 through

C31.7), or in hex notation (i.e., Cnn where nn = the specified value between 00 and FF).

39. Both the Cypress and alternate encodings may be used for data transmission to generate specific Special Character Codes. The decoding process for received

characters generates Cypress codes or Alternate codes as selected by the BOE[7:0] configuration inputs.

40. These characters are used for control of ESCON interfaces. They can be sent as embedded commands or other markers when not operating using ESCON

protocols.

41. The K28.5 character is used for framing operations by the receiver. It is also the pad or fill character transmitted to maintain the serial link when no user data is

available.

42. Care must be taken when using this Special Character code. When a C7.0 or a C0.7 is followed by a D11.x or D20.x, an alias K28.5 sync character is created.

These sequences can cause erroneous framing and should be avoided while RFENx = 1.

43. C2.1 = Transmit either –K28.5+ or +K28.5– as determined by Current RD and modify the Transmission Character that follows, by setting its least significant bit

to 1 or 0. If Current RD at the start of the following character is plus (+) the LSB is set to 0, and if Current RD is minus (–) the LSB becomes 1. This modification

allows construction of X3.230 “EOF” frame delimiters wherein the second data byte is determined by the Current RD.

For example, to send “EOFdt” the controller could issue the sequence C2.1–D21.4– D21.4–D21.4, and the HOTLink Transmitter sends either

K28.5–D21.4–D21.4–D21.4 or K28.5–D21.5– D21.4–D21.4 based on Current RD. Likewise to send “EOFdti” the controller could issue the sequence

C2.1–D10.4–D21.4–D21.4, and the HOTLink Transmitter sends either K28.5–D10.4–D21.4– D21.4 or K28.5–D10.5–D21.4–D21.4 based on Current RD.

The receiver never outputs this Special Character, since K28.5 is decoded as C5.0, C1.7, or C2.7, and the subsequent bytes are decoded as data.

44. C0.7 = Transmit a deliberate code rule violation. The code chosen for this function follows the normal Running Disparity rules. Transmission of this Special

Character has the same effect as asserting TXSVS = HIGH. The receiver only outputs this Special Character if the Transmission Character being decoded is

not found in the tables.

45. C1.7 = Transmit Negative K28.5 (K28.5+) disregarding Current RD. The receiver only outputs this Special Character if K28.5 is received with the wrong running

disparity. The receiver outputs C1.7 if K28.5 is received with RD+, otherwise K28.5 is decoded as C5.0 or C2.7.

46. C2.7 = Transmit Positive K28.5 (+K28.5) disregarding Current RD. The receiver only outputs this Special Character if K28.5 is received with the wrong running

disparity. The receiver outputs C2.7 if +K28.5 is received with RD, otherwise K28.5 is decoded as C5.0 or C1.7.

47. C4.7 = Transmit a deliberate code rule violation to indicate a Running Disparity violation. The receiver only outputs this Special Character if the Transmission

Character being decoded is found in the tables, but Running Disparity does not match. This might indicate that an error occurred in a prior byte.

Document #: 38-02065 Rev. *I

Page 45 of 48

CYP15G0403DXB

Ordering Information

Package

Name

Operating

Range

Speed

Ordering Code

CYP15G0403DXB-BGXC

Package Type

Standard

BL256 Pb-free 256-Ball Thermally Enhanced Ball Grid Array Commercial

Ordering Code Definition

X

CY P 15G 04 03 DXB- BG

C

C - Temperature Grade: commercial

X - Pb-free

BG - Package Type, 256 Ball Grid Array

DXB - Silicon revision

03 - Independent Clocking for each channel available.

04 - No. of Channels

15G - Serial Data rate.

P - Not compliant to SMPTE

CY - Company ID: CY = Cypress.

Package Diagram

Figure 3. 256-Lead L2 Ball Grid Array (27 x 27 x 1.57 mm) BL256

51-85123 *F

Document #: 38-02065 Rev. *I

Page 46 of 48

CYP15G0403DXB

Document History Page

Document Title: CYP15G0403DXB Independent Clock Quad HOTLink II™ Transceiver

Document Number: 38-02065

ISSUE

DATE

ORIG.OF

CHANGE

REV.

ECN NO.

DESCRIPTION OF CHANGE

**

118422

125289

128692

09/24/02

04/04/03

08/14/03

LNM

CGX

PDS

New Data Sheet

*A

*B

Revised entire data sheet. Redefined device.

Provided AC timing information for TXERRx

Added additional information regarding the availability of half-rate RXCLKx±

when REFCLKx is a full-rate clock with RXCKSELx = 1

Added influence of ULCx input on LFIx status

Added influence of DECMODEx on decoder bypass

Revised the text for “Device Configuration and Control Interface” for better

clarity. Removed the timing parameter t_RREFDVand added the timing parameter

t_RREFDWinstead. This change was done to provide a more meaningful timing

parameter. Revised t_RREFDAfrom 9.5 ns to 9.7 ns

Added additional information to “Device Configuration Strategy”

*C

*D

234390

338721

See ECN

PDS

SUA

Removed dependence of DECMODEx on decoder bypass.

Revised AC timing parameters (AC Electrical Characteristics) to match final

device characterization.

Expanded the CDR Range Controller’s permissible frequency offset between

incoming serial signalling rate and Reference clock from ±200-PPM to

±1500-PPM (changed parameter t_REFRX).

Added CYW15G0403DXB part number for OBSAI RP3 compliance to support

operating data rate up to 1540 MBaud. Made changes to reflect OBSAI RP3

and CPR compliance. Added Pb-Free Package option for all parts listed in the

data sheet. Modified Timing Parameters

Changed MBd to MBaud in SPDSEL pin description

*E

*F

384307

See ECN

AGT

UKK

Revised setup and hold time parameters (t_TXDH, t_TREFDS,t_TREFDH,t_RXDv–, t_RXDv+

t_RXDV+, t_REFxDV–, t_REFxDV+

,

)

1034001

Added clarification for the necessity of JTAG controller reset and the methods

to implement it.

*G

*H

*I

2897246

2952699

3277398

03/22/10

06/15/10

06/10/11

CGX

Removed inactive parts from Ordering Information.Updated package diagram.

Removed references to inactive part numbers in the datasheet.

SAAC/

CGX

Updated Template. Removed existence of CYV and SMPTE from datasheet as

CYV15G0403DXB part is obsolete.

Document #: 38-02065 Rev. *I

Page 47 of 48

CYP15G0403DXB

Sales, Solutions, and Legal Information

Worldwide Sales and Design Support

Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. To find the office

closest to you, visit us at Cypress Locations.

Products

Automotive

cypress.com/go/automotive

cypress.com/go/clocks

cypress.com/go/interface

cypress.com/go/powerpsoc

cypress.com/go/plc

PSoC Solutions

Clocks & Buffers

Interface

psoc.cypress.com/solutions

PSoC 1 | PSoC 3 | PSoC 5

Lighting & Power Control

Memory

cypress.com/go/memory

cypress.com/go/image

cypress.com/go/psoc

Optical & Image Sensing

PSoC

Touch Sensing

USB Controllers

Wireless/RF

cypress.com/go/touch

cypress.com/go/USB

cypress.com/go/wireless

any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for

medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as

critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products in life-support systems

application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide patent protection (United States and foreign),

United States copyright laws and international treaty provisions. Cypress hereby grants to licensee a personal, non-exclusive, non-transferable license to copy, use, modify, create derivative works of,

and compile the Cypress Source Code and derivative works for the sole purpose of creating custom software and or firmware in support of licensee product to be used only in conjunction with a Cypress

integrated circuit as specified in the applicable agreement. Any reproduction, modification, translation, compilation, or representation of this Source Code except as specified above is prohibited without

the express written permission of Cypress.

Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not

assume any liability arising out of the application or use of any product or circuit described herein. Cypress does not authorize its products for use as critical components in life-support systems where

a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress’ product in a life-support systems application implies that the manufacturer

assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Use may be limited by and subject to the applicable Cypress software license agreement.

Document #: 38-02065 Rev. *I

Revised June 10, 2011

Page 48 of 48

HOTLink is a registered trademark and HOTLink II and MultiFrame are trademarks of Cypress Semiconductor. CPRI is a trademark of Siemens AG. IBM and ESCON are registered trademarks, and

FICON is a trademark, of International Business Machines. All products and company names mentioned in this document may be the trademarks of their respective holders.

厂商	型号	描述	页数
NIDEC	CYP	[ PIANO SWITCHES (FULL PITCH) ]	5 页
NIDEC	CYP-0200MB	[ PIANO SWITCHES (FULL PITCH) ]	5 页
NIDEC	CYP-0200MC	[ PIANO SWITCHES (FULL PITCH) ]	5 页
NIDEC	CYP-0200TB	[ PIANO SWITCHES (FULL PITCH) ]	5 页
NIDEC	CYP-0200TC	[ PIANO SWITCHES (FULL PITCH) ]	5 页
NIDEC	CYP-0201MB	[ PIANO SWITCHES (FULL PITCH) ]	5 页
NIDEC	CYP-0201MC	[ PIANO SWITCHES (FULL PITCH) ]	5 页
NIDEC	CYP-0201TB	[ PIANO SWITCHES (FULL PITCH) ]	5 页
NIDEC	CYP-0201TC	[ PIANO SWITCHES (FULL PITCH) ]	5 页
NIDEC	CYP-0202MB	[ PIANO SWITCHES (FULL PITCH) ]	5 页
